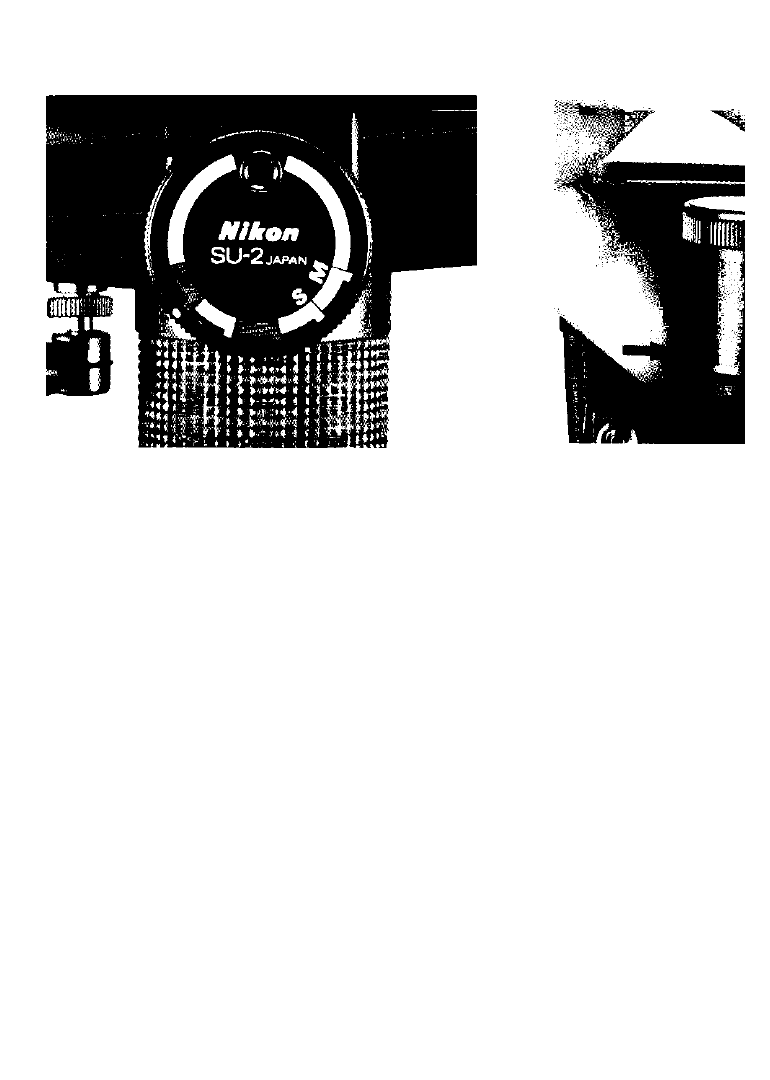

Sensor Unit SU-2
0
The Sensor Unit SU-2 controls the operation of the SB-14.
It has five settings to choose from.
At the Three Auto Positions
To shoot on Auto, lift up and turn the knurled ring on the
outside of the sensor to one of the three positions (orange,
yellow, or blue) which are color-coded for use with the
exposure calculator dial. At these settings, the SB-14 is
able to vary its light output automatically to match the
flash-to-subject distance.
At the S (Slave) Position
At this setting, the SB-14 emits a modulated burst of light
which can trigger a second electronic flash. The remote
flash unit is connected to the receiver portion of the
optional Modulite Remote Control Unit ML-1 (which is set
to channel 2), while the Speedlight SB-14 acts as the
transmitter.
