ASSEMBLY
CHECKING SQUARENESS OF EXTENSION
TABLES TO SAW TABLE
See Figure 34.
The extension tables should be checked for
squarness to the saw table for smooth operation of
the rip fence and rails.
Place a square on the saw table, with the short end
up and check. The long end of the square should
extend across one of the extension tables. If the
extension table is not square with the saw table,
proceed as follows:
■ Loosen the two hex nuts {one for each rail)
securing the front and rear rails to the extension
table. Do not loosen hex nuts securing rails to
saw table.
■ Raise or lower extension table until it is square
with the saw table,
■ Tighten hex nuts securely.
■ Check extension table on opposite side of blade.
Repeat the above procedure if necessary.

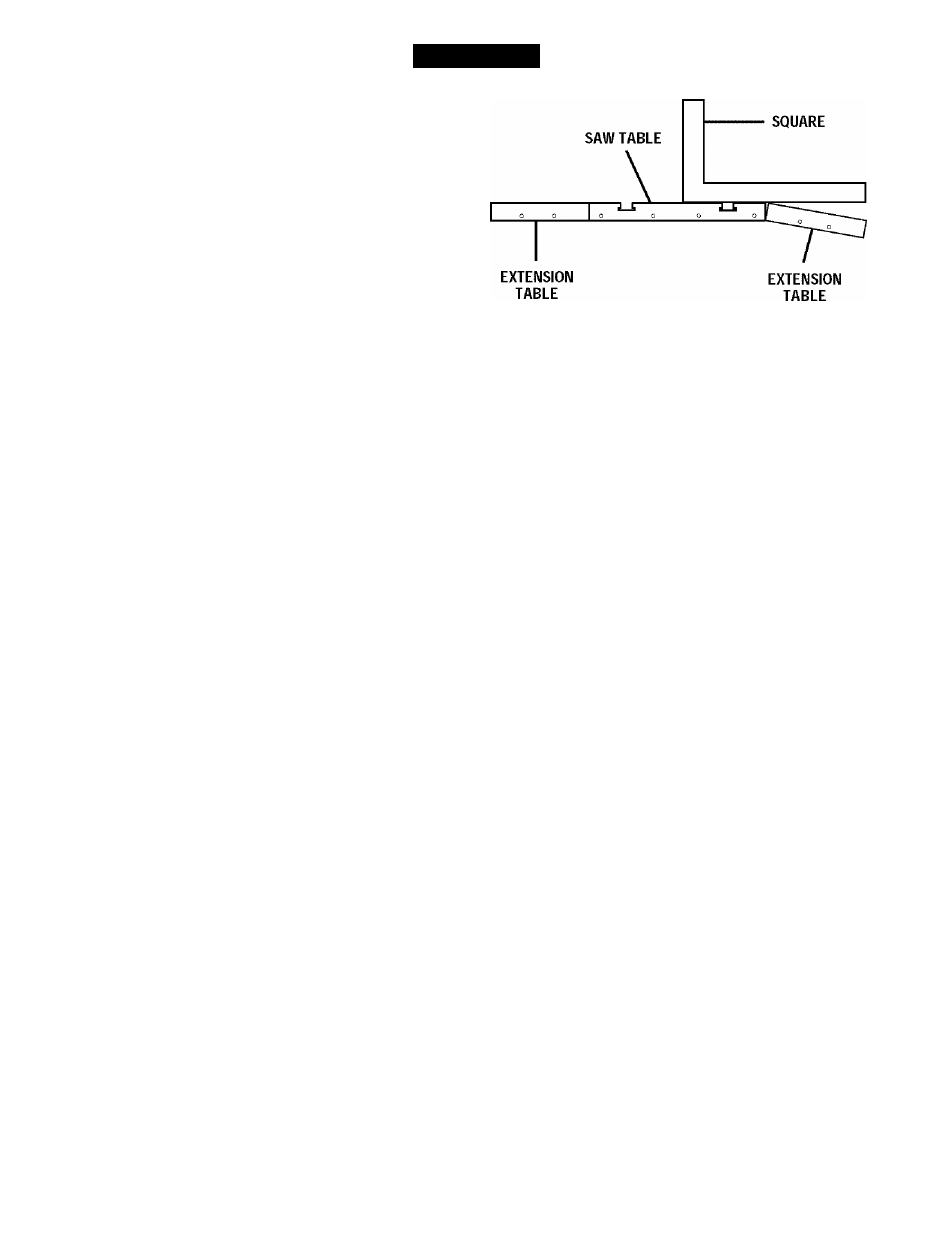

SAW TABLE
\
SQUARE
EXTENSION
TABLE
7
EXTENSION
TABLE
Fig. 34
29
