ASSEMBLY

ASSEMBLING LEG STAND (Continued)

■ Align the two large holes on the brace and the legs.

Insert the carriage bolts. Add flat washers and hex

nuts and hand tighten. Repeat for the other short
upper brace. These are the front and back sets.

■ For the sides, install a long upper brace on two

legs. Add hardware and finger tighten. Repeat for
the other long upper brace.

■ Use the same steps to install the lower braces.

Tighten all hex nuts with a 12 mm wrench.

■ Place a hex nut and flat washer on each leveling

foot. Install the leveling feet from the bottom of
each leg with the bolts pointing up. Secure with a
flat washer and hex nut but do not tighten.

■ Move the leg stand to desired location. Adjust the

leveling feet with a 12 mm wrench, then securely
tighten the top hex nut.

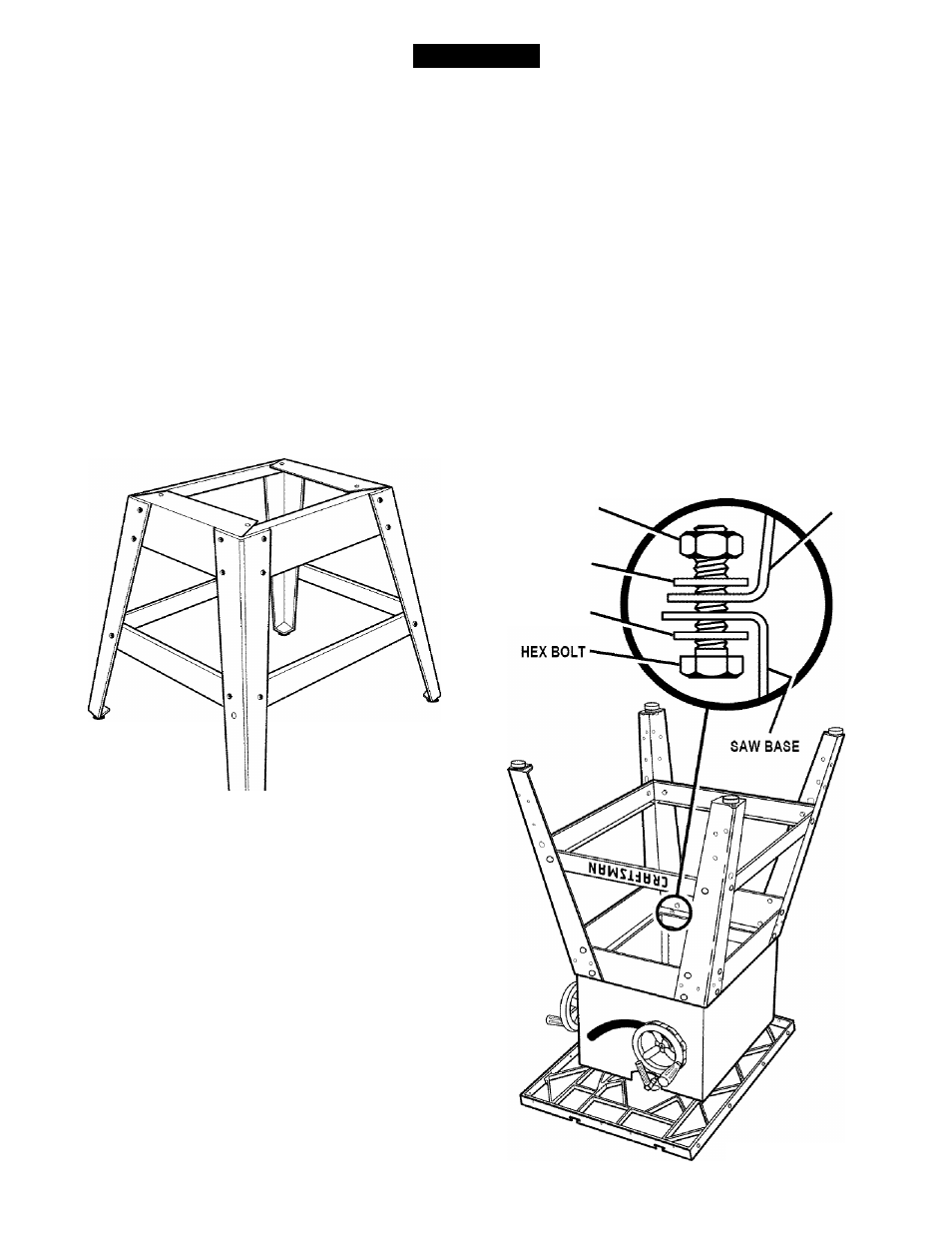

LEG STAND SHOWN ASSEMBLED

Fig. 8

MOUNTING THE LEG STAND ON THE TABLE
SAW BASE
See Figure 9.

■ Take the following from the hardware bag:

4 hex bolts (5/16-18x3/4 in.)
4 hex nuts (5/16-18)

8 flat washers (5/16 in.)

Note: This hardware was in the bag with hardware for

assembling the leg stand and leveling feet.

■ Place the saw table upside down on a smooth

surface, such as cardboard, on the floor.

L WARNING: Do not lift the saw table without

help. The table saw base weighs approximately
95 lbs. Hold it close to your body. Keep your
knees bent and lift with your legs, not your back.
Ignoring these precautions can result in back
injury.

Place the leg stand on the table saw base. Align

the holes in the table with the holes in the end

braces. Make sure the Craftsman label faces the

front of the saw (same side as height handwheel).

Place a flat washer on each bolt and insert through
hole. Add a flat washer and a hex nut. Hand

tighten.

Repeat for the three remaining holes. Tighten all
hardware with a 12 mm wrench. You may find it
helpful to use two wrenches, one wrench to hold

the head of the bolt and one to tighten the hex nut.

Leave the saw upside down to add table exten

sions.

HEX NUT

FLAT WASHER

LEG STAND

Fig. 9

CRBFTSMRN’TABLE SAW 315.228390
