REPAIR PARTS
CARBURETOR NO. 632670 (Fig. 1)
Ref.
No. Part
No. Part Name
1 631615 Throttle Shaft & Lever Assembly
2 631767 Throttle Return Spring
4 631184 Dust Sea! Washer
S 631183 Dust Seal (Throttle)
6 632504 Throttle Shutter
7 650506 Shutter Screw
16 631775 Fuel Fitting
25 631867 Float Bowl
27 631024 Float Shaft
28 632019 Float
29 631028._,_Float Bowl "0" Ring
30 631021 .. Inlet Needle, Seat & Clip (Ind. 31)
31 631022 Spring Clip
35 632694 Primer Bulb/Retainer Ring
35A 632647 Primer Bulb Filter
40 632503 High Speed Bow! Nut
44 27110 Bowl Nut Washer
48 631027 Welch Plug, Atmospheric Vent
Ref.
No. Part
No. Part Name
1 590599A Spring Pin (Incl 4)
2 590600 Washer
3 590696 Retainer
4 590601 Washer
5 590697 Brake Spring
6 590698 Starter Dog
7 590699 Dog Spring
8 590618A Pulley & Rewind Spring Assy.
11 590695 Starter Housing Assy
(40 degrees grommet)
12 590535 Starter Rope (Length 98“* x 9/64" dia )
13 590701 Starter Handle
HOSE KiT HO. 987.856790 (F!g. 3}
Ref.
No.
Part
No. Part Name
1 1767377 Hose
2 1765866 Tube
3 1763291 Hose Adapter
4 1763281001Handle
5 1756875 Handle Grip
6 1763283001inlet Cover
7 1740083 Worm Clamp
8 1100123 Slotted Head Screw, 1/4-20 x 1-1/4"
9 1186389 Flange Whiz Locknut. 1/4-20
10 1107381 Washer

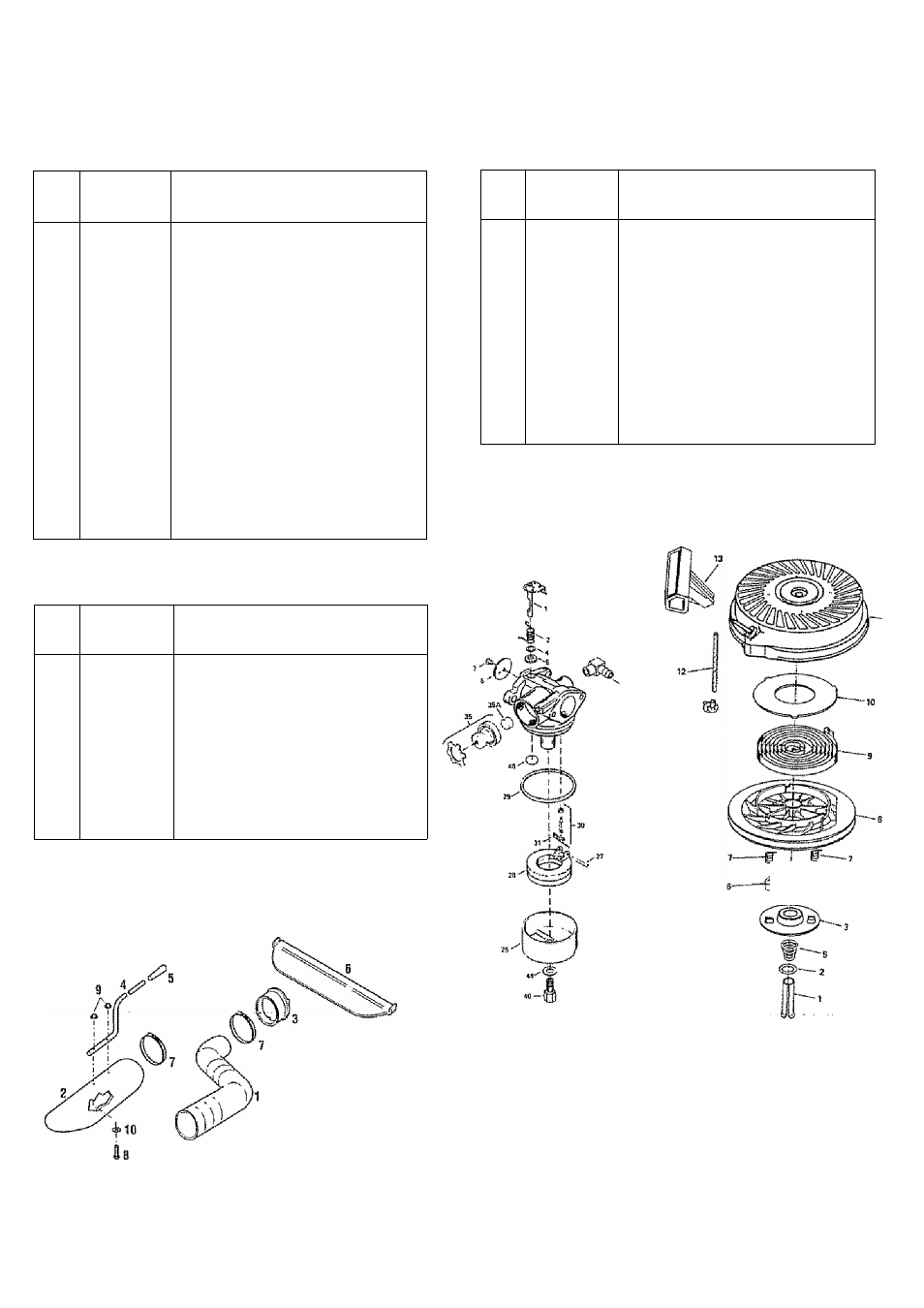

Figure 1 Figure 2
Figure 3
