MAINTENANCE
ENGINE SPECIFICATIONS
HORSEPOWER S HP
DISPLACEMENT 206
CC
BORE 68mm (2.677 in.)
STROKE 56mm (2.205 in.)
GASOLINE 3 quarts
CAPACITY (unleaded)
OIL CAPACITY
(18 oz capacity)
5W30
SPARK PLUG: Champion RJ19LM
(Gap .030 in.) or
equivalent
VALVE Intake 0.004-0.006 in.
CLEARANCE: Exhaust: 0.009-0.011 in.
ARMATURE
AIR GAP:
0.010-0.014 in.
POWER RATINGS
The power ratings for an individual
engine model are initially developed by
starting with SAE (Society of Automo­
tive Engineers} code J1940 {Small
Engine Power & Torque Rating Proce­
dure) (Revision 2002-05). Given both
the wide array of products on which our
engines are placed, and the variety of
environmental issues applicable to
operating the equipment, it may be that
the engine you have purchased will not
develop the rated horsepower when
used in a piece of power equipment
(actual “on-site” power). This difference
is due to a variety of factors including,
but not limited to, the following: differ­
ences in altitude, temperature, baro­
metric pressure, humidity, fuel, engine
lubrication, maximum governed engine
speed, individual engine to engine
variability, design of the particular piece
of power equipment, the manner in
which the engine is operated, engine
run-in to reduce friction and clean out of
combustion chambers, adjustments to
the valves and carburetor, and other
factors. The power ratings may also be
adjusted based on comparisons to
other similar engines utilized in similar
applications, and will therefore not
necessarily match the values derived
using the foregoing codes.
F-0410108L
SNOW THROWER
AUGER DRIVE BELT
Adjust the auger drive belt after the first
2 to 4 hours of use, again about mid­
season and twice each season thereaf­
ter
(See to “Belt Adjustment” in the
Service and Adjustment section).

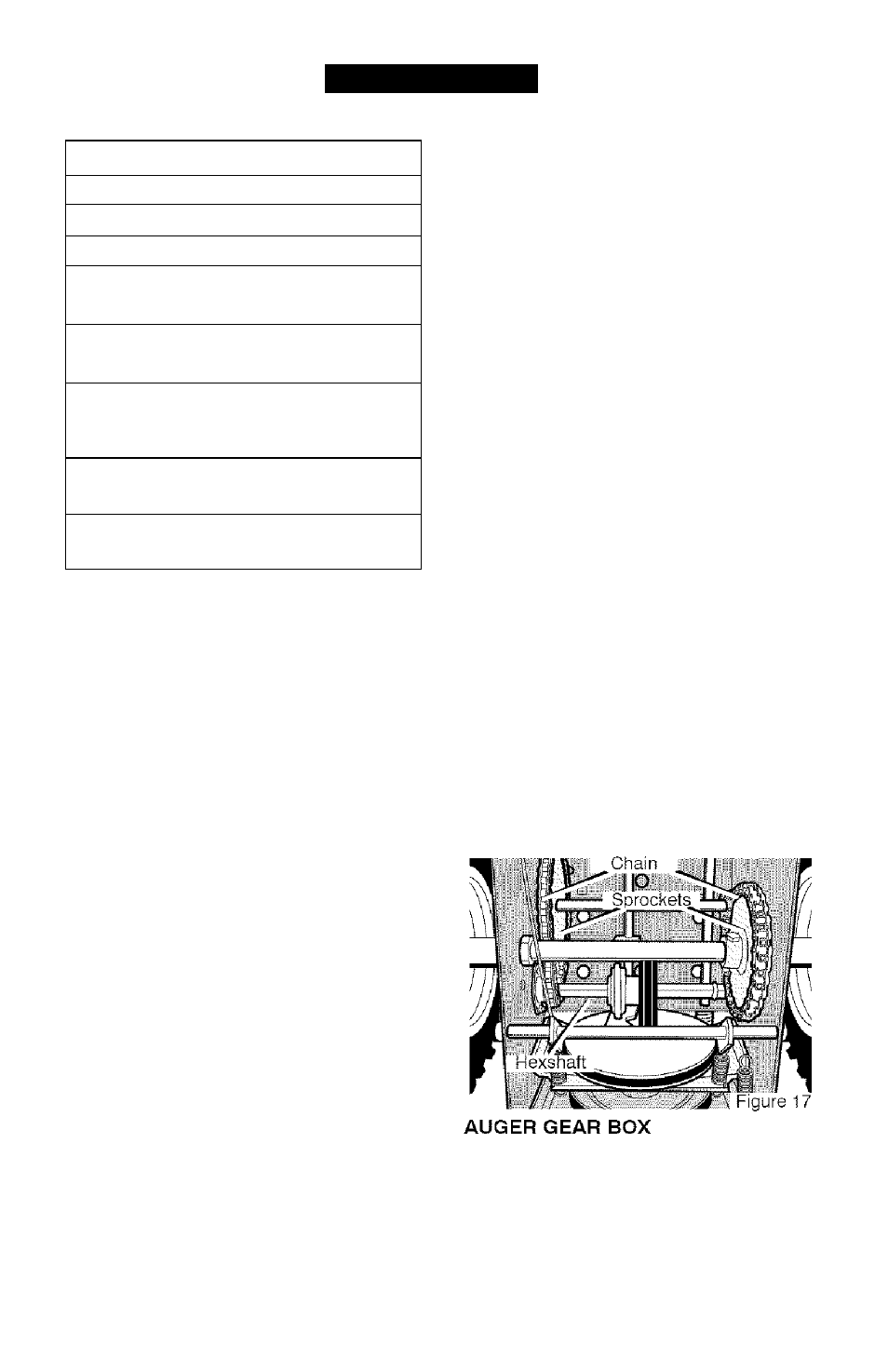

CHAIN LUBRICATION
EVERY 25 HOURS
1. Position speed selector lever in first
(1) forward gear.
2. Stand the snow blower up on the
auger housing end.
NOTE; When the crank case if
filled with oil, do not leave the
snow blower standing up on the
auger housing for an extended
period of time.
3. Remove the bottom panel.
4.
Lubricate the
chains
with a chain
type lubricant.
5. For storage, wipe the hexshaft and
sprockets
with 5W30 motor oil.
NOTE: Clean all excess grease or
oil found on the rubber friction
wheel or the disc drive plate.
CAUTION: Do not allow grease or
oil to contact the rubber friction
wheel or the disc drive plate.
6. Install the bottom panel.
19
The auger gear box is lubricated at the
factory and should not require addition­
al lubrication. If for some reason the
lubricant should leak out, have auger
gear case checked by a competent re­
pairman.
