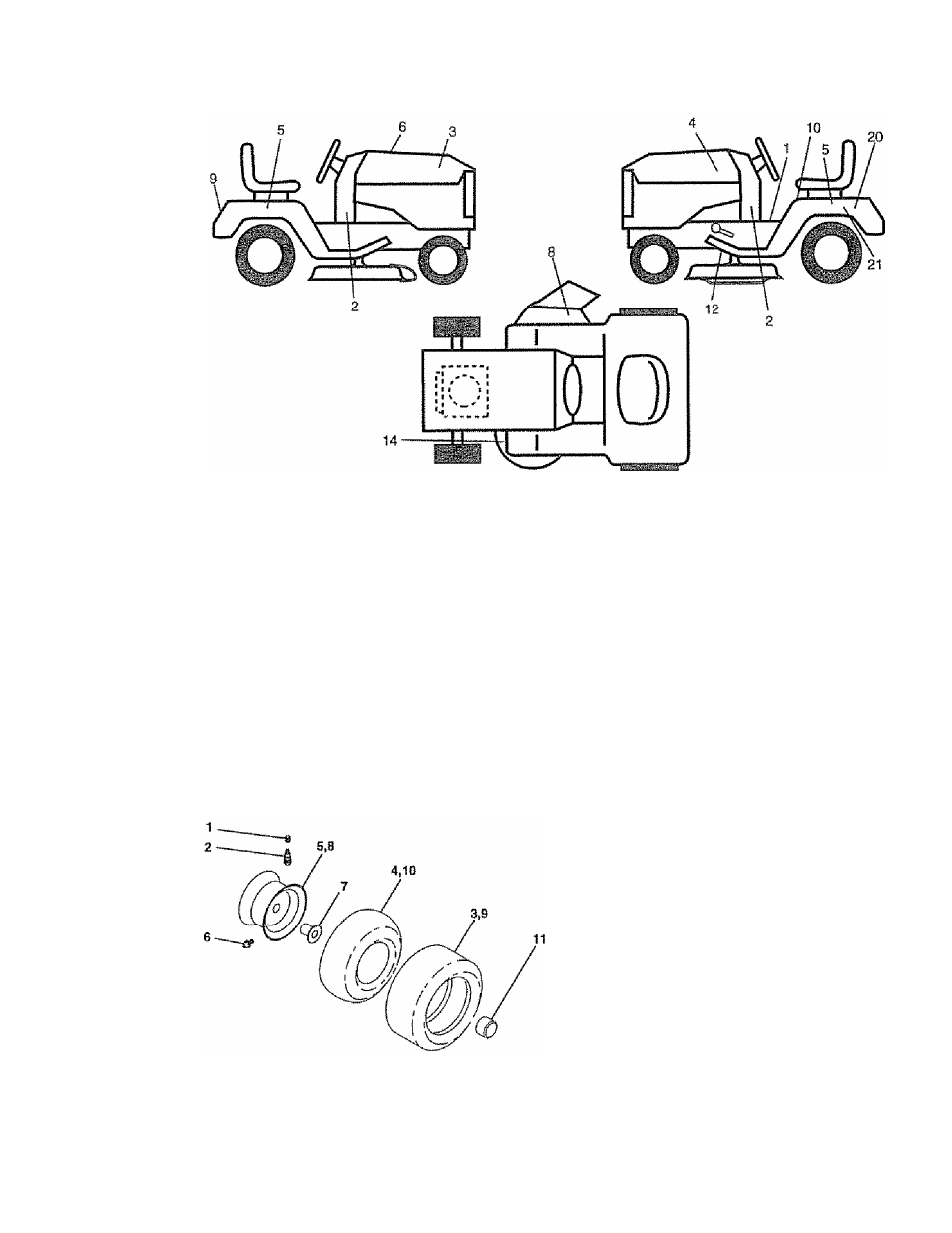

DECALS
TRACTOR - " MODEL NUMBER 917.271030
KEY PART
KEY PART
NO.
NO.
DESCRIPTION
NO.
NO.
DESCRIPTION
1
156368
Decal, Oper. Instr,
12
146046
Decal, V-Belt Drive Schematic
2
163262
Decal, Dash Pnl Kohier
14
160396
Decal, V-Beit Schematic
3
163200
Decal, Hood, R,H
20
149516
Decal Battery Dngr/Psn Eng
4
163202
Decal, Hood, LH.
21
138047
Decal, Battery Diehard Sears
5
163207
Decal, Fend Sd Sht
. .
138311
Decal, Lift Handle
6
133644
Decal, Customer Maintenance
154515
Pad Footrest LH STLT
8
163203
Decal, Deck Mower EZ
. .
154516
Pad Footrest RH STLT
9
163204
Decal, Fender, Craftsman
. .
163473
Owner's Manual, English
10
156439
Decal, Fender Danger
163474
Owner's Manual, Spanish
WHEELS & TfRES
KEY PART
NO.
NO.
DESCRIPTION
1
59192
Valve Cap, Tire
2
65139
Stem, Valve
3
106222X
Tire, Front
4
59904
Tube, Front Tire
(Not Provideci, Service item Only)
5
106732X427 Rim, Front
6
278H
Fitting, Grease (Front Wheel
Only)
7
9040H
Beating, Flange (Front Wheel
Only)
8
106108X427 Rim, Rear
g
122082X
Tire, Rear
10
7152J
Tube, Rear Tire
(Not Provided, Service Item Only)
11
104757X
Cap, Axle
- -
144334
Sealant, Tire 10 oz.
NOTE: All component dimensions given in U S- inches
1 inch = 25-4 mm
43
