KNOW YOUB TRÄCTOB

READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE OPERATING YOUR

TRACTOR

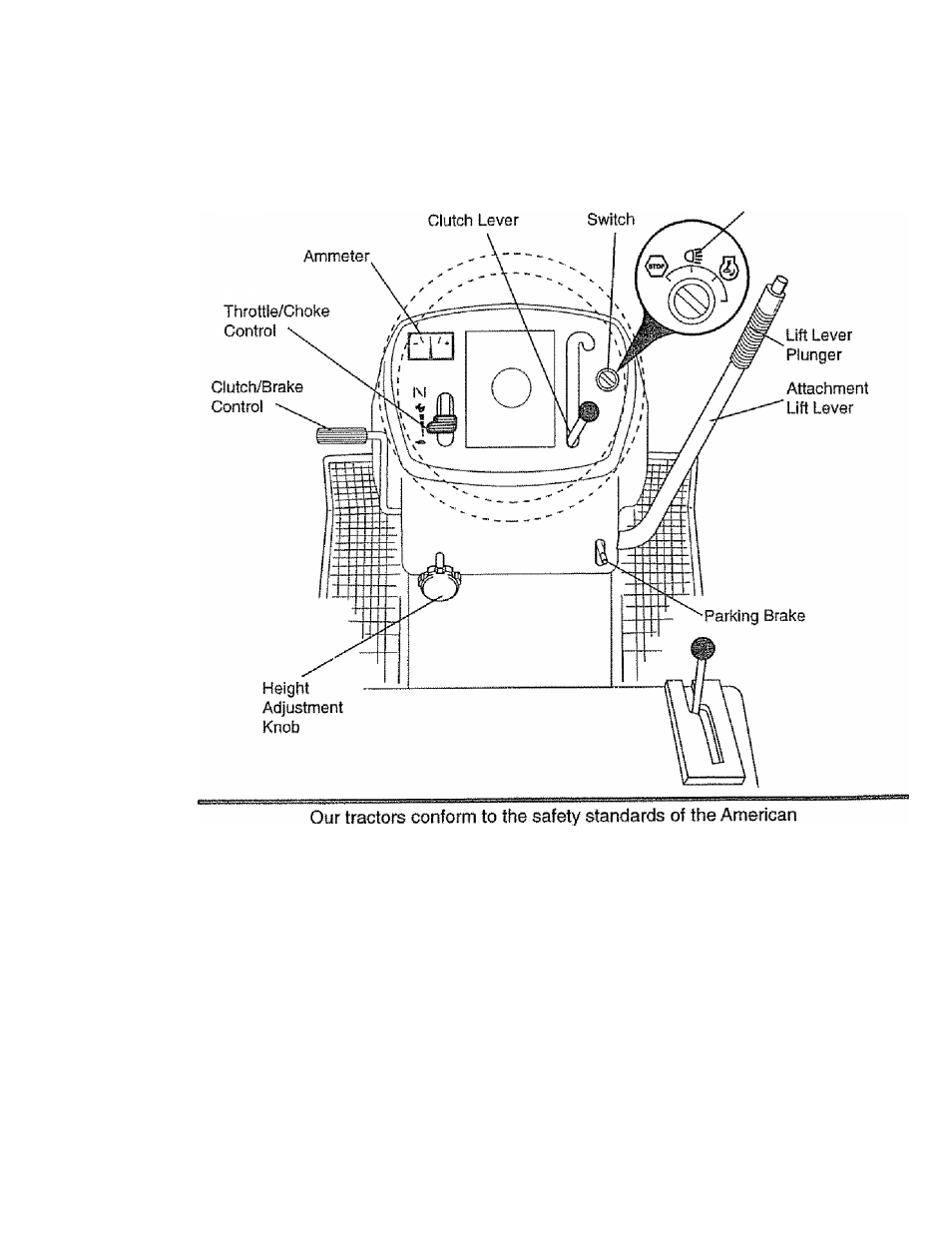

Compare the illustrations with your tractor to familiarize yourself with the locations of

various controls and adjustments. Save this manual for future reference.

Attachment

Ignition

Light Switch
Position

National Standards Institute,

ATTACHMENT CLUTCH LEVER: Used to
engage the mower blades, or other attach
ments mounted to your tractor.
LIGHT SWITCH: Turns the headlights on
and off.
THROTTLE/CHOKE CONTROL; Used to
control engine speed.
CLUTCH/BRAKE PEDAL: Used for
declutching and braking the tractor and
starting the engine.
GEARSHIFT LEVER; Selects the speed
and direction of the tractor.
HEIGHT ADJUASTMENT KNOB: Used to
Adjust the mower cutting height.

ATTACHMENT LIFT LEVER: Used to

raise and lower the mower deck or other
attachments mounted to your tractor,
LIFT LEVER PLUNGER: Used to release
attachment lift lever when changing its
position.
IGNITION SWITCH: Used for starting and

stopping the engine,
AMMETER: Indicates battery charging (+)
or discharging {-).

PARKING BRAKE: Locks clutch/brake
into the brake position.
