Craftsman 917.27103 - Manual (Page 31)

TRACTOR - - MODEL NUMBER 917.271030

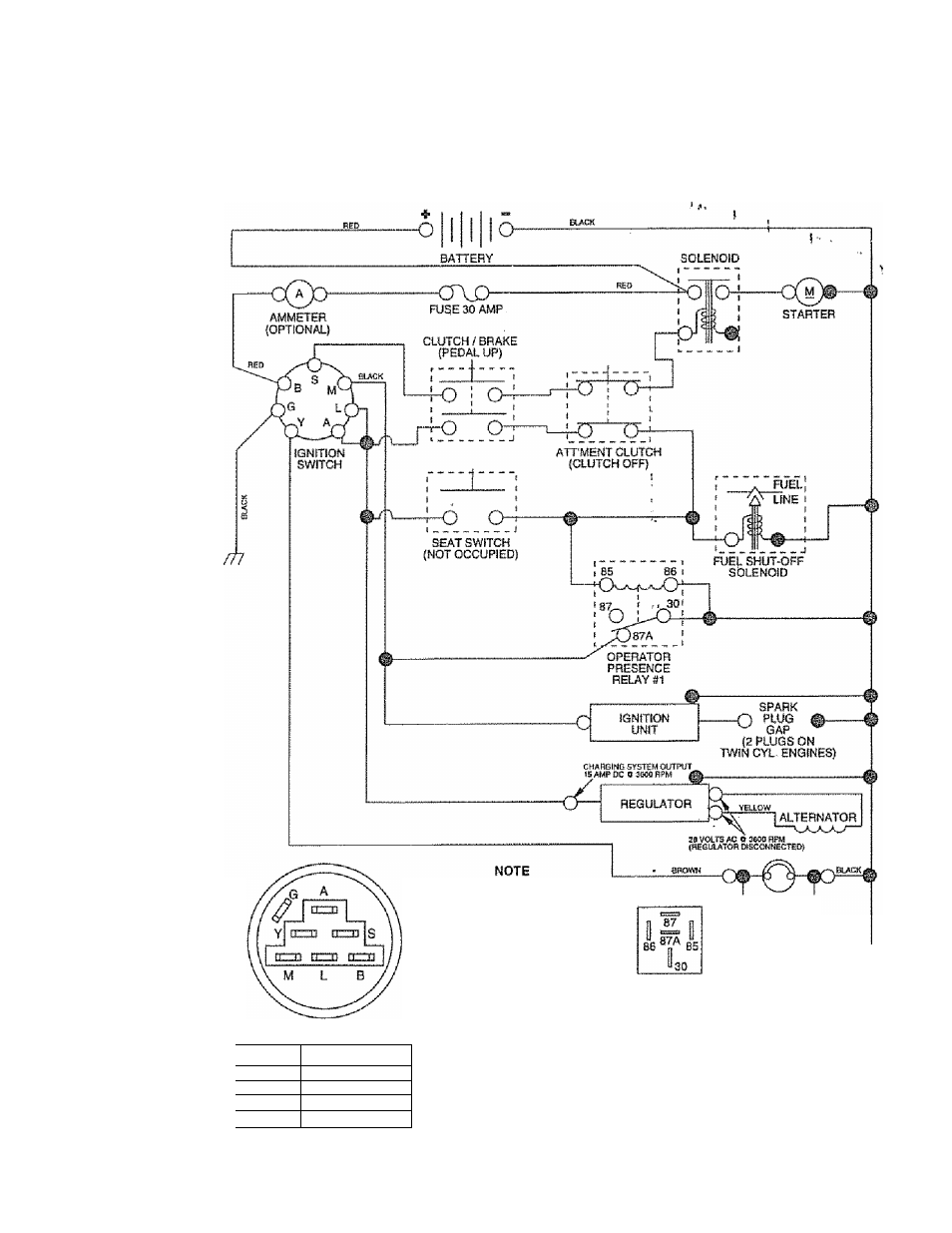

SCHEMATIC
02103 - {WH#t613S1)
IGNITION SWITCH
j POSITION CIRCUIT I "MAKE"
I OFF Q + Mi-L NONE
RUN/LleHT e + L A + V
RUN S + L none
I START a + t + s I NONE
YOUH TRACTOH IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE HOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED, AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
Dppcnirn HP TUp I
WILL BECOME THEIR BRIGHTEST
HEADLIGHTS
R]£EAY
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CUPS
NOTE: IF WIRING INSUUTED CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY SHOULD BE REPLACED TO
PROPERLY SECURE YOUR WIRING
31
