Craftsman 917.27103 - Manual (Page 42)

TRACTOR - - H/iODEL NUMBER 917.271030

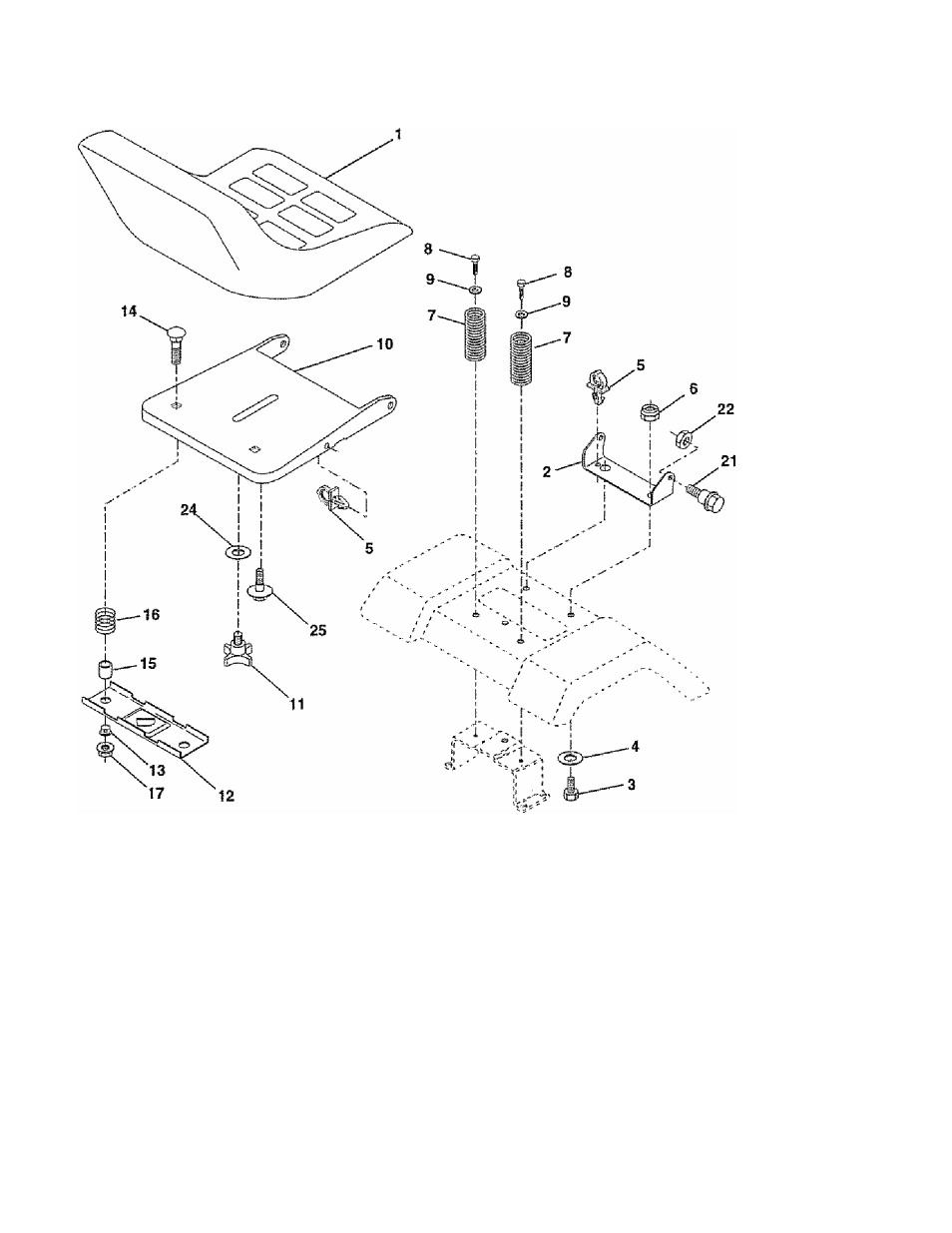

SEAT ASSEMBLY
KEY
NO. PART
NO.
DESCRIPTION
KEY
NO.
PART
NO.
DESCRIPTION
1 140123 Ssst
13 121248X Bushing, Snap
2 140551 Bracket, Pivot, Seat 14 720S0412 Boit, Carriage 1/4-20x1-1/2
3 STD523710 Bolt
15 134300 Spacer, Split 28 x .88
4 19131610 Washer 13/32 x 1 x 10 Gauge 16 121250X Spring
5 145006 Clip, Push-In Hinged 17 123976X Locknut, Fiange 1/4 Grade 5
6 STD541437 Nut
21 153236 Bolt, Shoulder 5/16-18 UNC
7 124181X Spring, Seat
22 STD541431 Nut
8 17490616 Screw, Thd , Rolf. 3/8-16x1 24 19171912 Washer 17/32x1-3/16x12
9
10
19131614
155925 Washer 13/32 x 1 x 14 Gauge
Pan, Seat Emboss QCK Conn,
25 127018X
Gauge
Bolt, Shoulder 5/16-18 x 62
11 120068X Knob Seal 1/2-13 UNC Blk NOTE: All component dimensions given in U S. inches
12 121246X Bracket, Switch Mounting 1 inch = 25 4 mm
42
