TO LEVEL MOWER HOUSING
Adjust the mower while tractor is parked
on level ground or driveway. Make sure
tires are properly infiated (See “PROD­
UCT SPECiFICATiONS”). If tires are
over or underinflated, you will not properly
adjust your mower.

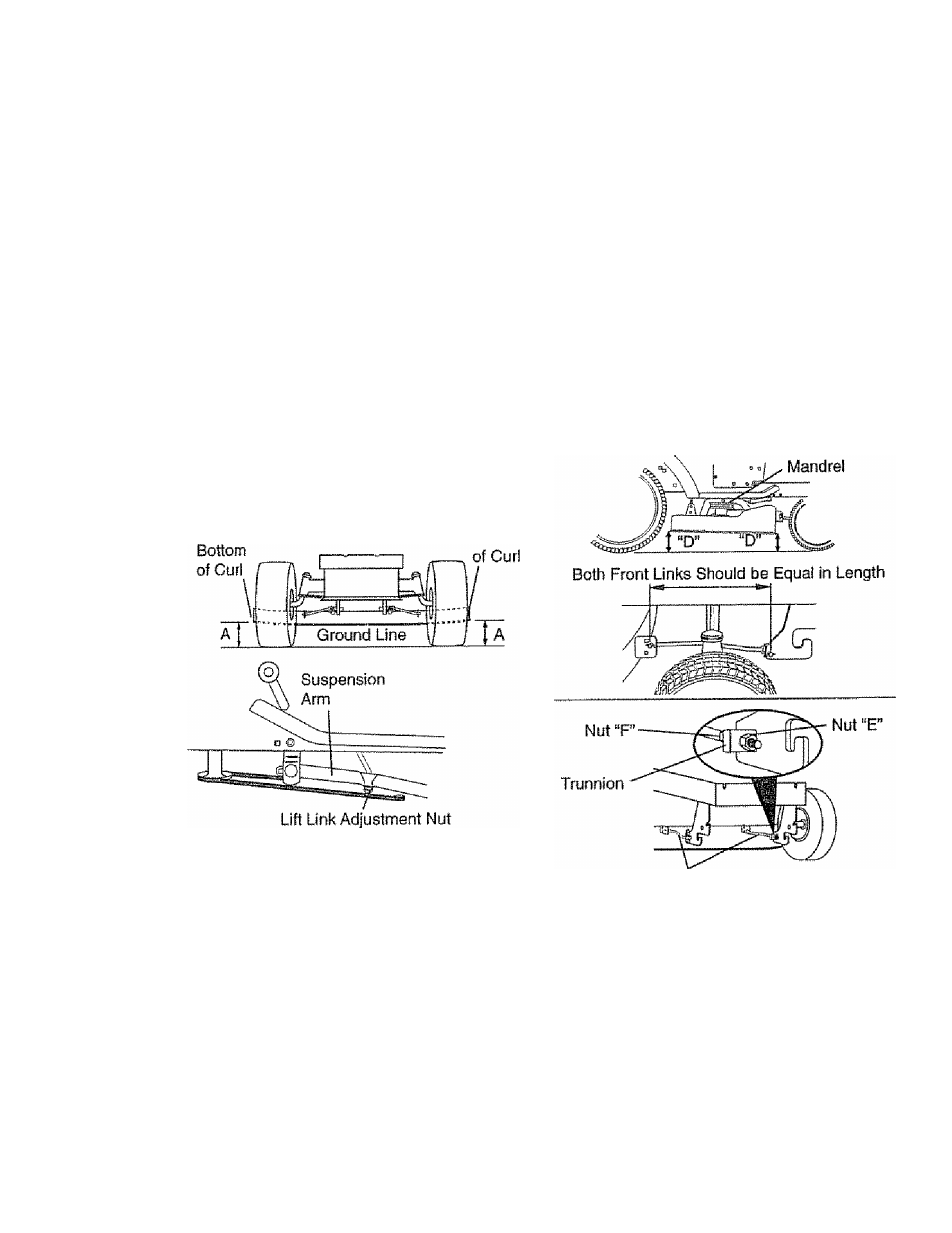

SIDE-TO-SIDE ADJUSTMENT
® Raise mower to its highest position.
® At the midpoint of both sides of mower,
measure height from bottom edge of
mower to ground. Distance “A” on both
sides of mower should be the same or
within 1/4” of each other.
® If adjustment is necessary, make adjust­
ment on one side of mower only.
® To raise one side of mower, tighten lift
link adjustment nut on that side.
® To tower one side of mower, loosen lift
link adjustment nut on that side.
NOTE: Each full turn of adjustment nut
will change mower height about 1/8“.
® Recheck measurements after adjusting.
Bottom
FRONT-TO-BACK ADJUSTMENT
IMPORTANT: Deck must be level side-to-
side. If the following fronWo-back adjust­
ment is necessary, be sure to adjust both
front links equally so mower will stay
level side-to-side.
To obtain the best cutting results, the
mower housing should be adjusted so that
the front is approximately 1/8" to 1/2"
lower than the rear when the mower is in
its highest position.
Check adjustment on right side of tractor.
Measure distance “D" directly in front and
behind the mandrel at bottom edge of
mower housing as shown.
® Before making any necessary adjust­
ments, check that both front links are
equal in length. Both links should be
approximately 10-3/8“.
<» If Jinks are not equal in length, adjust
one link to same length as other link.
® To lower front of mower loosen nut “E”
on both front links an equal number of
turns.
» When distance “D" is 1/8“ to 1/2“ lower
at front than rear, tighten nuts “P
against trunnion on both front links.
» To raise front of mower, loosen nut “F”
from trunnion on both front links.
Tighten nut “E" on both front links an
equal number of turns.
* When distance “D” is 1/8“ to 1/2“ lower
at front than rear, tighten nut “F" against
trunnion on both front links.
o Recheck side-to-side adjustment.
Front Links
TO REPLACE MOWER BLADE DRIVE
BELT
The mower blade drive belt may be
replaced without tools. Park the tractor on
level surface. Engage parking brake.
DClTDCynVAi - li Cl VI vy V
* Remove mower from tractor (See ‘TO
REMOVE MOWER” in this section of
this manual).
® Work belt off both mandrel pulleys and
idler pulleys,
® Pull belt away from mower.
