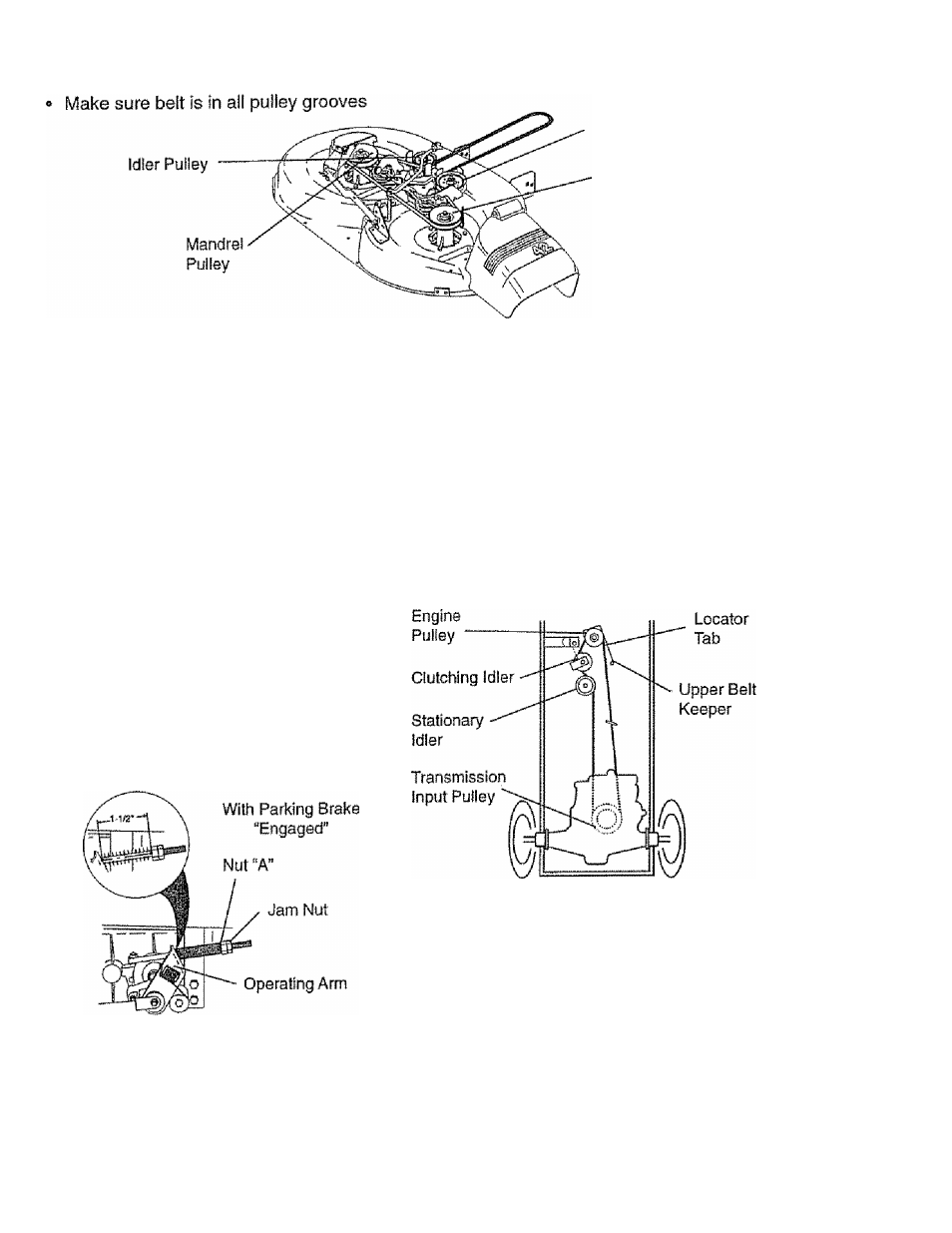

BELT INSTALLATION -
» Install new belt in reverse order of
removal.
and inside all belt guides.
Install mower in reverse order of
removal instructions.
dier Pulley
Mandrel
Pulley
TO ADJUST BRAKE
Your tractor is equipped with an adjustable
brake system which is mounted on the
right side of the transaxle.
If tractor requires more than six (6) feet
stopping distance at high speed in highest
gear, then brake must be adjusted.
® Depress clutch/brake pedal and engage
parking brake.
® Measure distance between brake oper­
ating arm and nut W on brake rod,
e If distance is other than 1-1/2”, loosen
jam nut and turn nut "A” until distance
becomes 1-1/2". Retighten jam nut
against nut “A”.
® Road test tractor for proper stopping
distance as stated above. Readjust if
necessary. If stopping distance is still
greater than six (6) feet in highest gear,
further maintenance is necessary.
Contact your nearest authorized ser­
vice center/departmeni
TO REPLACE MOTION DRIVE BELT
Park the tractor on level surface. Engage
parking brake. For assistance, there is a
belt installation guide decal on bottom side
of left footrest.
» Remove mower (See “TO REMOVE
MOWER” in this section of this manual.)
® Remove upper belt keeper.
» Remove belt from stationary idler and
clutching idler.
» Pull belt slack toward rear of tractor.
Remove belt upwards from transaxle
pulley by deflecting belt keepers,
9 Pull belt toward front of tractor and
remove downwards from around engine
pulley.
* Install new belt by reversing above pro­
cedure.
IMPORTANT: Make sure upper belt keep­
er is positioned properly between locator
tab.
TO ADJUST STEERING WHEEL ALIGN-
M CMT
*■« I • i
If steering wheel crossbars are not hori­
zontal (left to right) when wheels are posi­
tioned straight forward, remove steering
wheel and reassemble per instructions in
the Assembly section of this manual,
FRONT WHEEL TOE-IN/CAMBER
The front wheel toe-in and camber are not
adjustable on your tractor. If damage has
occurred to affect the front wheel toe-in or
camber, contact your nearest authorized
service center.
