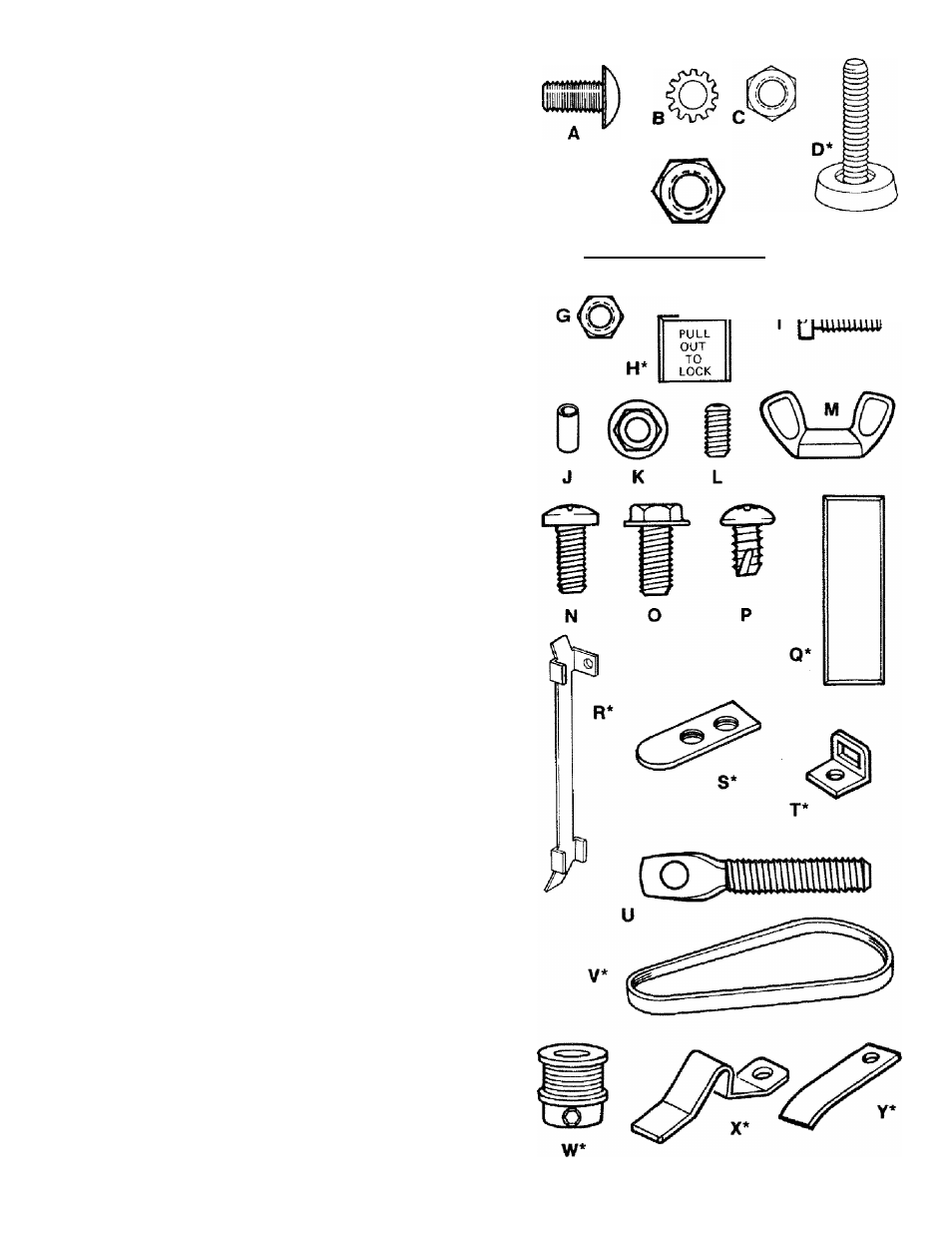

LIST OF LOOSE PARTS IN BAG #507657
MODEL 113.247210
(ТЕМ
DESCRIPTION
QTY.
A Truss Head Screw 1/4-20 x 1/2................. 44
В Lock washer Ext. 1/4................................. 44
C Hex Nut 1/4-20.......................................... 44
D Leveling Foot............... .............. ........... 4
E Hex Jam Nut 3/8-16.................................. 8
LIST OF LOOSE PARTS IN BAG #507655
MODEL 113.247210 & 113.247310
ITEM
DESCRIPTION
QTY.
F Pan Hd. Screw 10-32 x 2........................ 1
G Hex Nut 10-32......................................... 1
H Switch Key............................................... 1
I
Lo Hd. Screw Cap 1/4-20 x 5/8............... 2
J Spacer #10 X 5/16 .................................. 3
K Hex Flange Lock Nut 10-32 .................... 4
L Locking Set Screw 1/4-20 x 1/2............... 3
M Wingnut 5/16-18...................................... 1
N Pan Hd. Screw 1/4-20x5/8 ...................... 2
B Lockwasher Ext. 1/4................................ 2
C Hex Nut 1/4-20......................................... 2
O Hex Hd. Screw Ty TT 1/4-20 x 5/8.......... 4
P Pan Hd. Screw Ty BT 1/4 x 1/2............... 6
LIST OF LOOSE PARTS IN BAG #507755
MODEL 113.247310
ITEM
DESCRIPTION
QTY.
A Truss Head Screw 1/4-20 x 1/2............. 30
B Lockwasher Ext, 1/4.............................. 30
C Hex Nut 1/4-20...................................... 30
D Leveling Foot........................................... 4
E Hex Jatn Nut 3/8-16................................. 8
Q Cover....................................................... 2
LIST OF LOOSE PARTS IN BAG #507666
MODEL 113.247210 & 113.247310
ITEM
DESCRIPTION
QTY.
R Sanding Platen........................................ 1
S Table Alignment Key............................... 1
T Table Latch....... ...................................... 2
U Belt Tension Stud.................................... 1
V Poly “V" Belt............................................. 1
W Poly "V” Pulley......................................... 1
X Table Latch Spring................................... 2
Y Table Alignment Spring............................ 2
(Д 1шт\штш\\там\тш
м
‘NOT SHOWN TO SCALE
