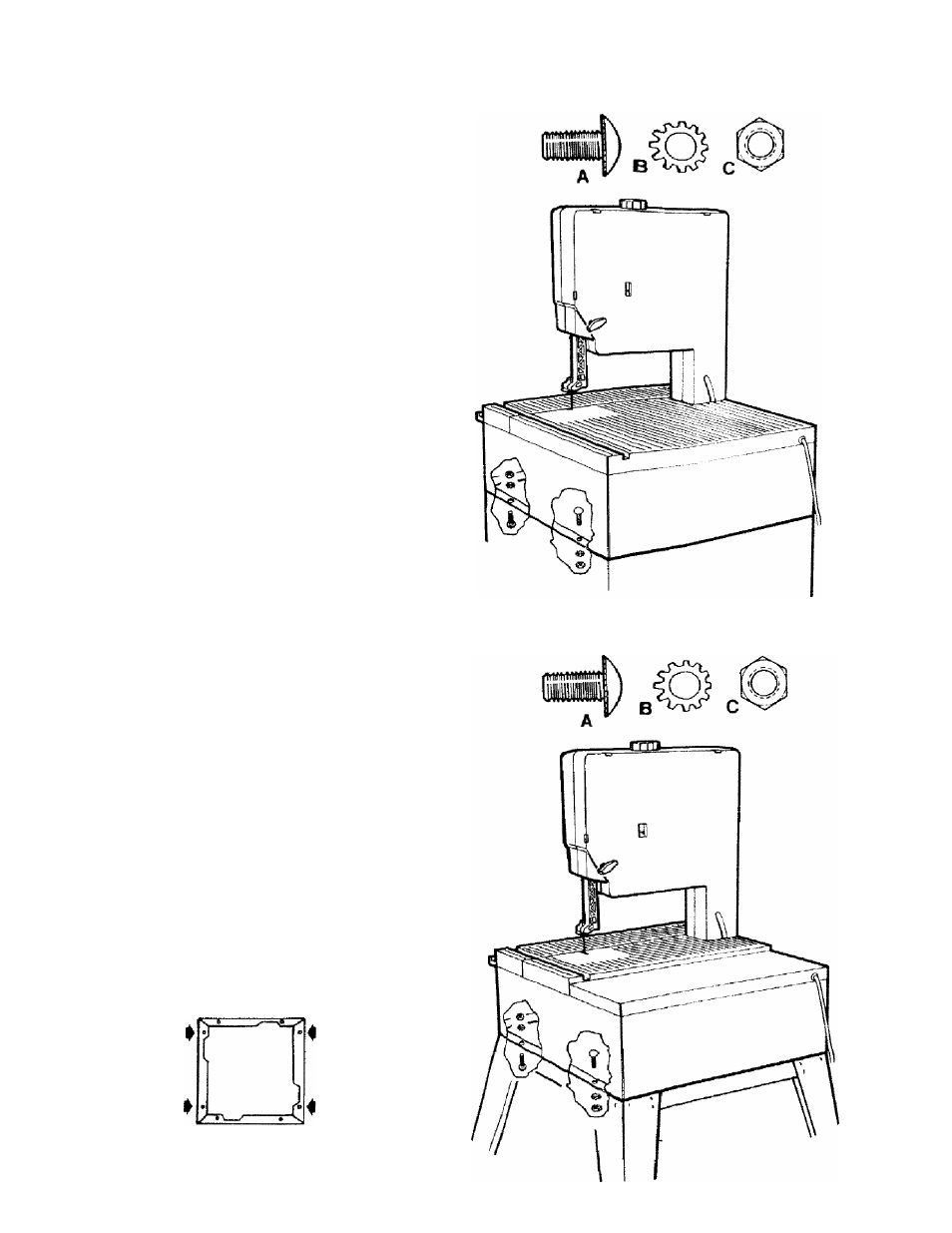

MOUNTING THE SAW TO THE CABINET
1. From loose parts bag find the following hard­
ware:
ITEM DESCRtPTION QTY.
A Truss Head Bolts 1/4-20 x 1/2................. 4
B Lockwashers External 1/4....................... 4
C Hex Nuts 1/4-20............ .........................
2. Place saw on cabinet so that holes in bottom of
saw line up with holes in top of cabinet.
3. Install bolts, lockwashers, and nuts as shown.
Tighten securely using a 7/16-inch wrench or
socket. The front two bolts hold the saw, lower
wheel cover, and the cabinet together, install
these bolts from the bottom side.
4. After the band saw has been mounted to the
cabinet, go back and tighten all the nuts that
were previously hand tightened using a 7/16-
inch wrench or socket.
MOUNTING THE SAW TO THE LEG SET
1. From loose parts bag find the following hardware;
ITEM DESCRIPTION QTY.
A Truss Head Bolts 1/4-20 x 1/2............ 4
B Lockwashers External 1/4.................. 4
C Hex Nuts 1/4-20................................. 4
2. Place saw on leg set so that holes in bottom of
saw line up with holes in top of teg set.
3. Install bolts, lockwashers, and nuts as shown.
Tighten securely using a 7/16-inch wrench or
socket. The front two bolts hold the saw, lower
wheel cover and leg set together. Install these
bolts from the bottom side.
4. After the band saw has been mounted to the leg
set, go back and tighten all the nuts holding the
leg set together.
