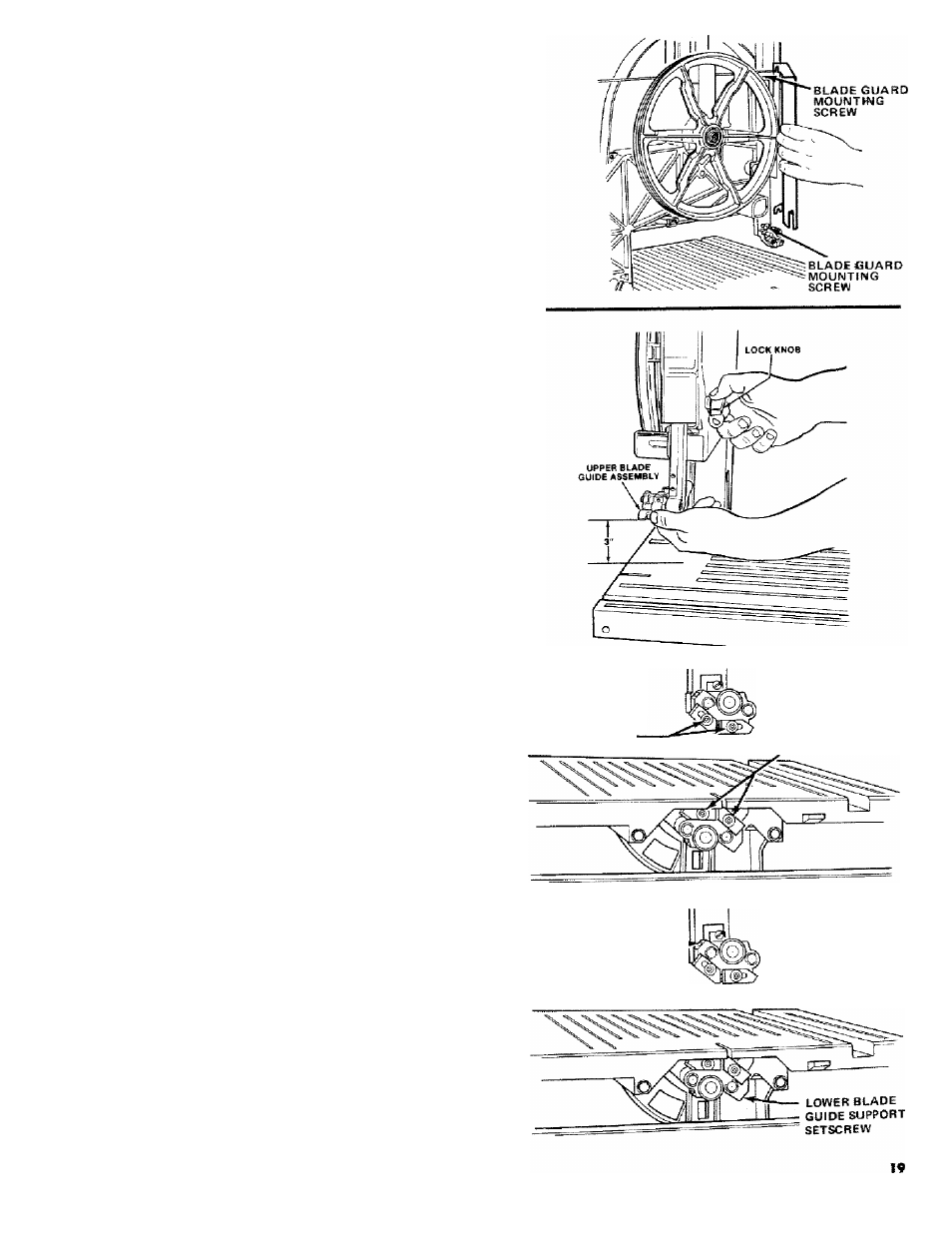

INSTALLING THE BLADE

1. Remove the blade guard by loosening the two (2)

mounting screws with a phillips screwdriver and
lifting the blade guard upward.

2. Loosen the upper blade guide assembly and

lower to approximately 3 inches above rear table
and retighten lock knob. This is necessary to
make adjustments to blade guide and back up

roller bearing.

3. Loosen the two capscrews that lock the upper

blade guides using a 1/8-inch hex “L” wrench

and separate them about 1/8-inch. Repeat the
same step for the lower blade guides.

BLADE

GUIDE

CAPSCREWS

BLADE

GUIDE

CAPSCREWS

Loosen the setscrew which locksthe bladeguide

support and push the support all the way back.

Repeat for lower blade guide support.

UPPER BLADE

GUIDE SUPPORT

SETSCREW ------------------------
