b. LOW VOLTAGE - Although the motor is de
signed for operation on the voltage and fre
quency specified on the motor nameplate,
normal loads will be handled safely on voltages
not more than 10% above or below the name
plate voltage. Heavy loads, however, require
that voltage at motor terminals equals the
voltage specified on nameplate.
5. Most motor troubles may be traced to loose or
incorrect connections, overload, reduced input
voltage (such as small size wire in the supply
circuit) or to overly long supply circuit wire.
Always check the connections, the load and the
supply circuit whenever motor fails to perform
satisfactorily. Check wire size and length with
the Wire Size Chart below.
WIRE SIZES
The use of any extension cord will cause some loss
of power. To keep this to a minimum and to prevent
overheating and motor burn-out, use the table below
to determine the minimum wire size (A.W.G.) exten
sion cord. Use only 3-wire extension cords which
have 3-prong grounding type plugs and 3-pole
receptacles which accepts the tools plug.
CAUTION: For circuits that are farther away from
electrical service box, the wire size must be increased
proportionately in order to deliver ample voltage to
the saw motor.
Length of the
Conductor
120 Volte Wire Sixes Required
(American Wire Gage Number)
0 - 25 Ft.
14
26 - 50 Ft.
12
51 - 100 Ft.
8
unpacking and checking contents

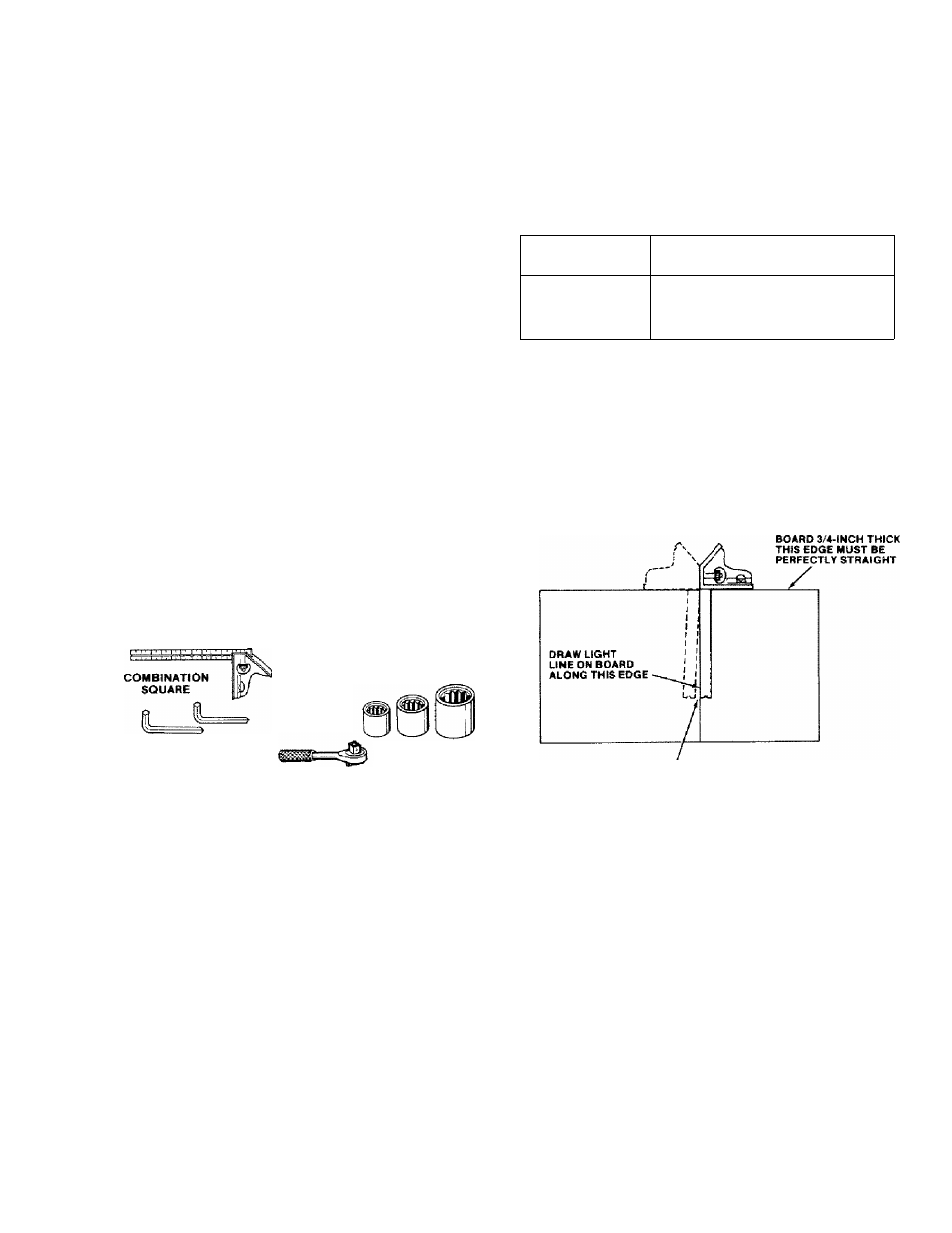

TOOLS NEEDED
MEDIUM SCREWDRIVER
#2 PHILLIPS SCREWDRIVER
3/8"
WRENCH
7/16"
WRENCH
9/16" WRENCH
1/8"
HEX
L”
WRENCH
5/32" HEX "L” WRENCH
3/8"
SOCKET
7/16
SOCKET
9/16 SOCKET
SOCKET WRENCH
COMBINATION SQUARE MUST BE TRUE
STRAIGHT EDGE OF
SHOULD
BE
NO
GAP
OR
OVERLAP
HERE
WHEN
SQUARE IS FLIPPED OVER IN DOTTED POSITION
WARNING: TO AVOID INJURY FROM UNEXPECT
ED STARTING OR ELECTRICAL SHOCK, DO NOT
PLUG THE SAW IN UNTIL ALL ASSEMBLY AND
ALIGNMENT STEPS ARE COMPLETE. THE POWER
CORD
MUST
REMAIN
UNPLUGGED
WHENEVER
YOU ARE WORKING ON THE SAW.
Unpacking and Checking Contents
1. Separate all "loose parts” from packaging mater
ials and check each item with “Table of Loose
Parts ' to make sure all items are accounted for,
before discarding any packing material.
WARNING: IF ANY PARTS ARE MISSING, DO
NOT
ATTEMPT
TO
ASSEMBLE
THE
BAND
SAW, PLUG IN THE POWER CORD, OR TURN
THE SWITCH ON UNTIL THE MISSING PARTS
ARE
OBTAINED
AND
ARE
INSTALLED
COR
RECTLY.
2. Remove front table and front cover first while
saw is being unpacked. To remove the front
cover, pui! the cover at the neck and underside of
throat area.
