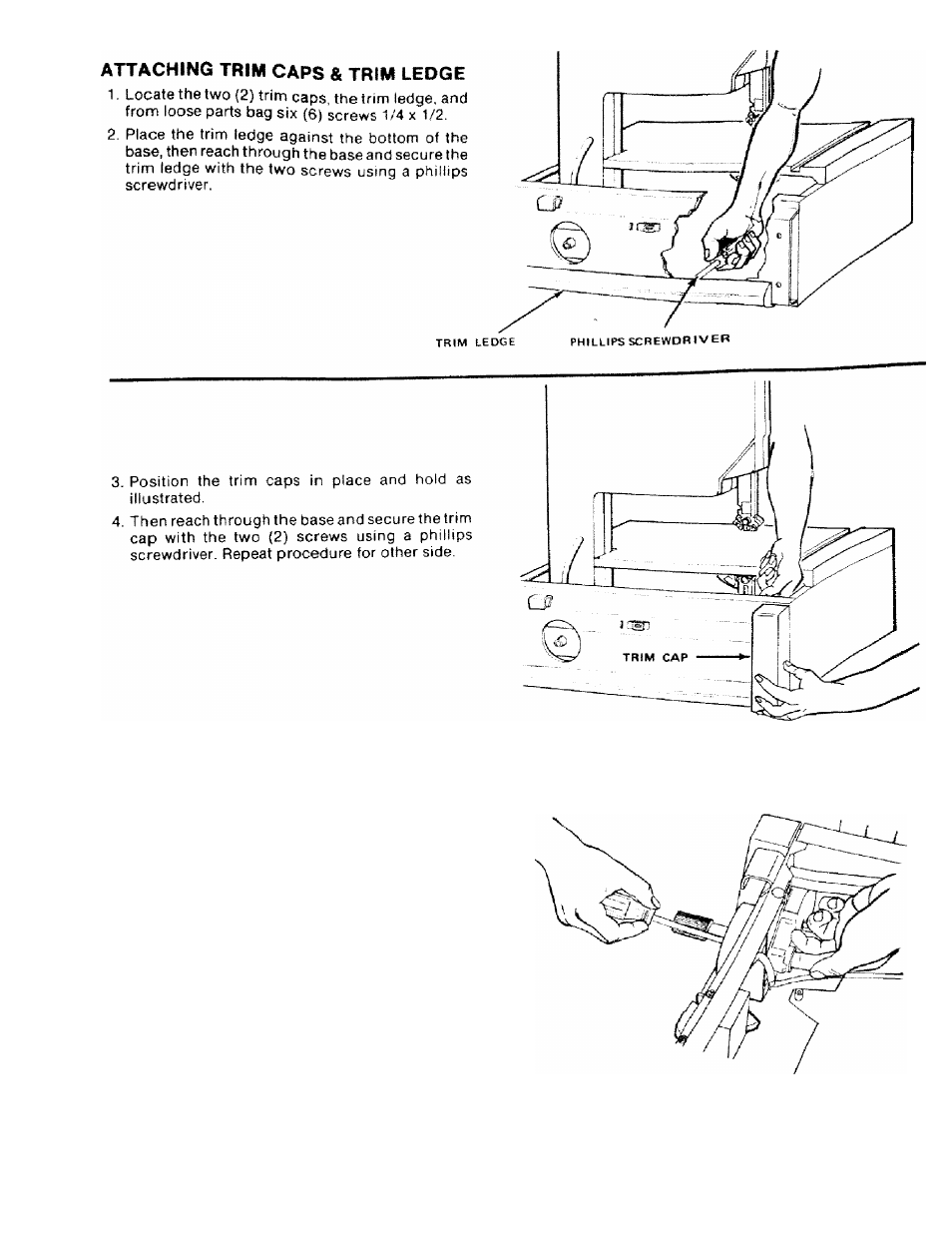

ATTACHING THE HANDWHEEL

1. From loose parts bag find one (1) pan head screw

10-32 X 2 and one (1) hex nut. Install the hand

wheel. Reach inside the base to the back side of
the bevel mechanism and put the nut in place.

Hold the nut in place with a finger, install the
screw through the center of the handwheel and
tighten with a phillips screwdriver,

2. Hold the handle and pull the red release button

with your finger to close the handle.
