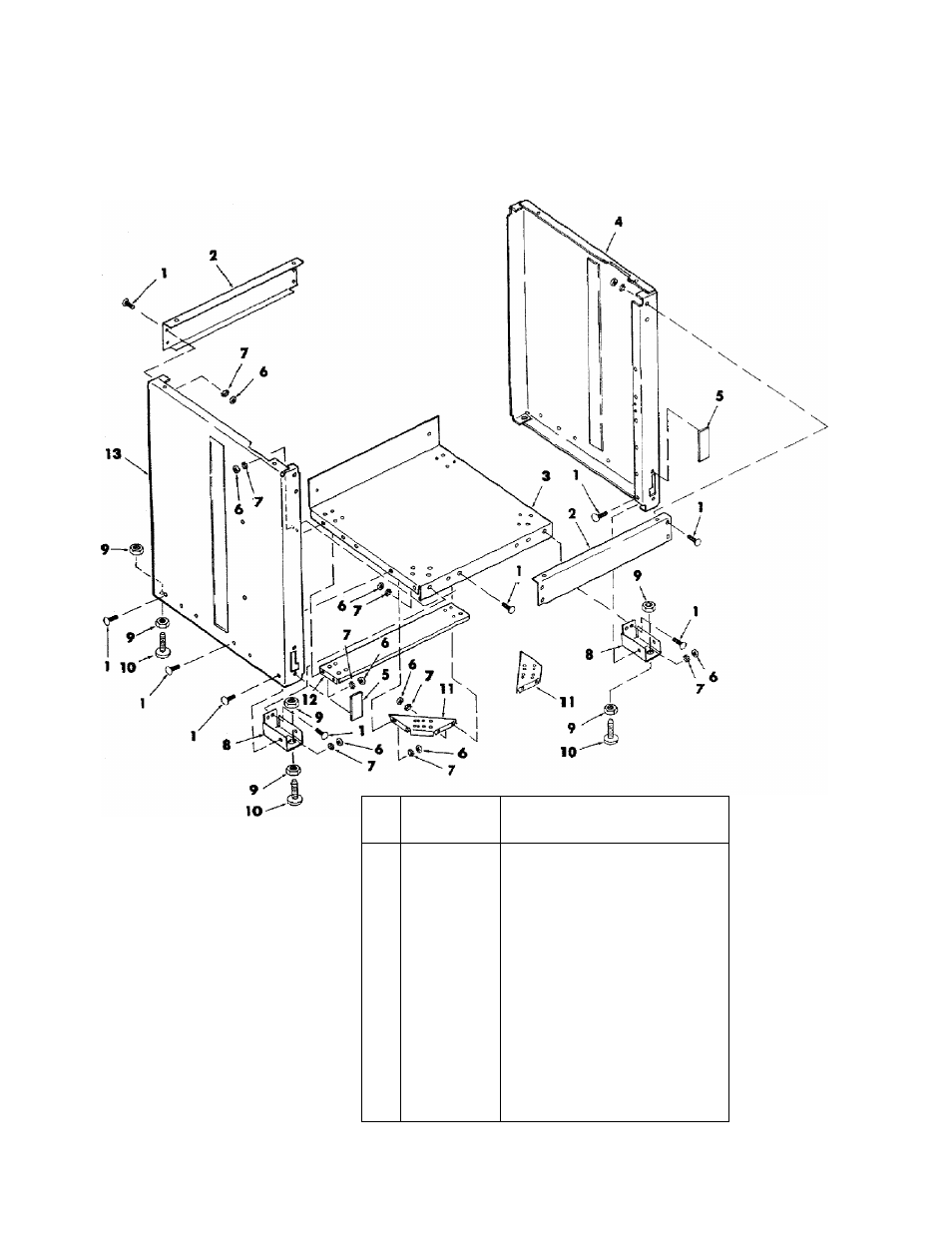

FIGURE 4 - PARTS LIST 23" CABINET
Always order by Part Number - Not by Key Number
PARTS LIST FOR CRAFTSMAN 12" BAND SAW
IMODEL NO. 113.247310
Key
No.
Part
No. Description
1 805589-5 Screw, Truss Hd. 1/4-20 x 1/2
2 815900 Skirt 23"
3 815887 Shelf, Lower 23”
4 817151 Panel Side R.H.
5 816111 Cover
6 STD541025 *Nut, Hex 1/4-20
7 STD551225 ’Lockwasher, Ext. 1/4
8 817108 Spacer
9 STD541237 *Nut, Hex Jam 3/8-16
10 803835-1 Foot, Leveling
11 815993 Bracket, Corner
12 816063 Stiffener, Shelf
13 817150 Panel Side L.H.
— 507755 Bag of Loose Parts (Not. Ills.)
^Standard Hardware Item may be Purchased Locally.
