Perform each step in sequence:
All steps are required!
1. Load the Tray
This is easiest to do when you are standing directly over the Sony IJP-
VI00 with the front facing you. The tray fits into the back of the Sony
IJP-VlOO near the top as shown.

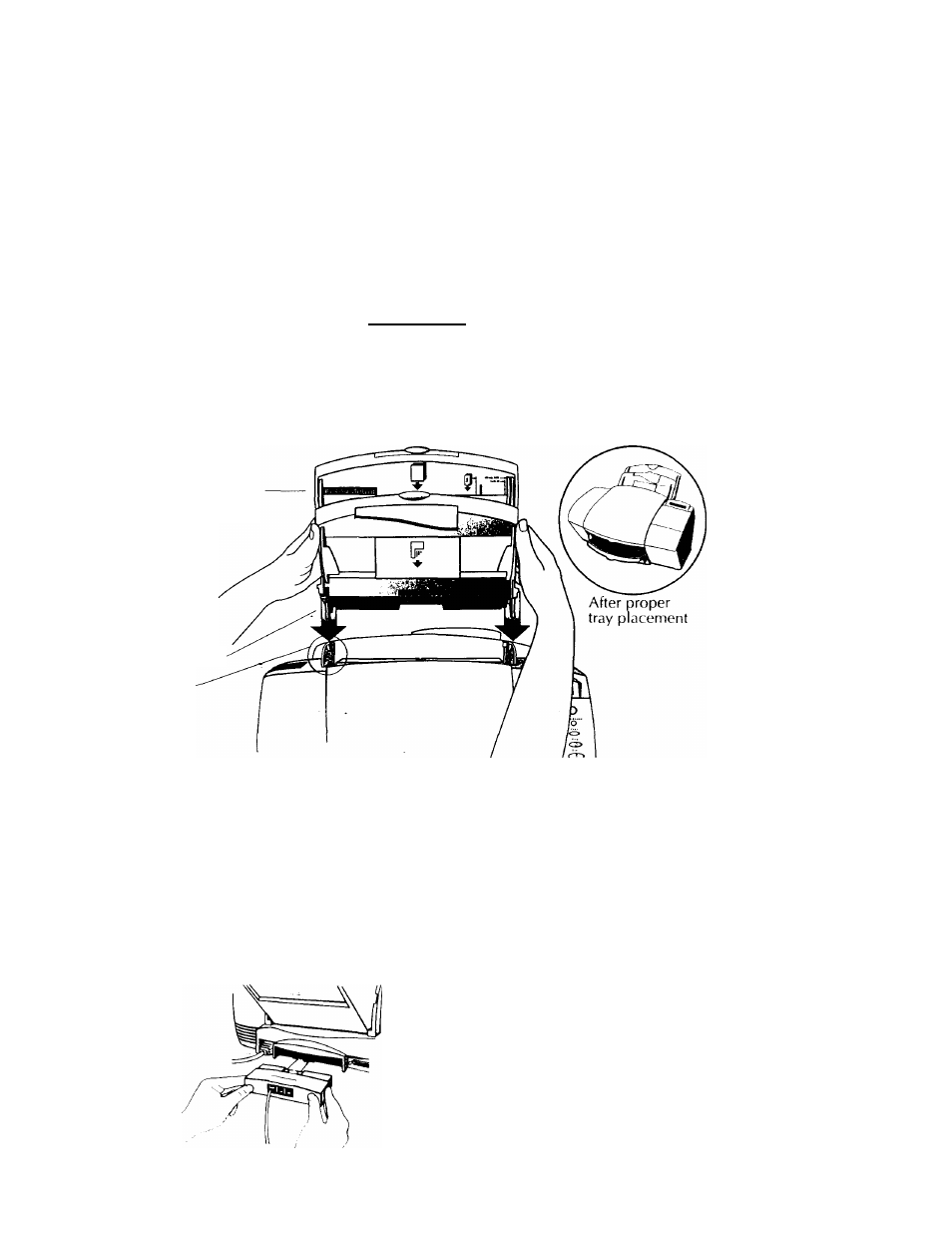

Paper/Document
Tray
Bottom tab
Guide
• Hold the sides of the paper/dtx ument tray and insert the bottom
tabs
into the guides as shown.
• T he tray should click into place. Refer to the above inset drawing
for how it should look after proper placement.
2.
Plug in the Line Connector
This is easiest to do when you're facing the back of the Sony
IJP-VlOO.
Insert the fa\/phone line connector into its
housing area on the back of the Sony
IJP-VIOO. Press it firmly into place. (Once
in place, it's difticult to remove.)
' • Plug the loose end of the phone cord into
the telephone wall Jack \ou'll be using brr
\ our fax number.
