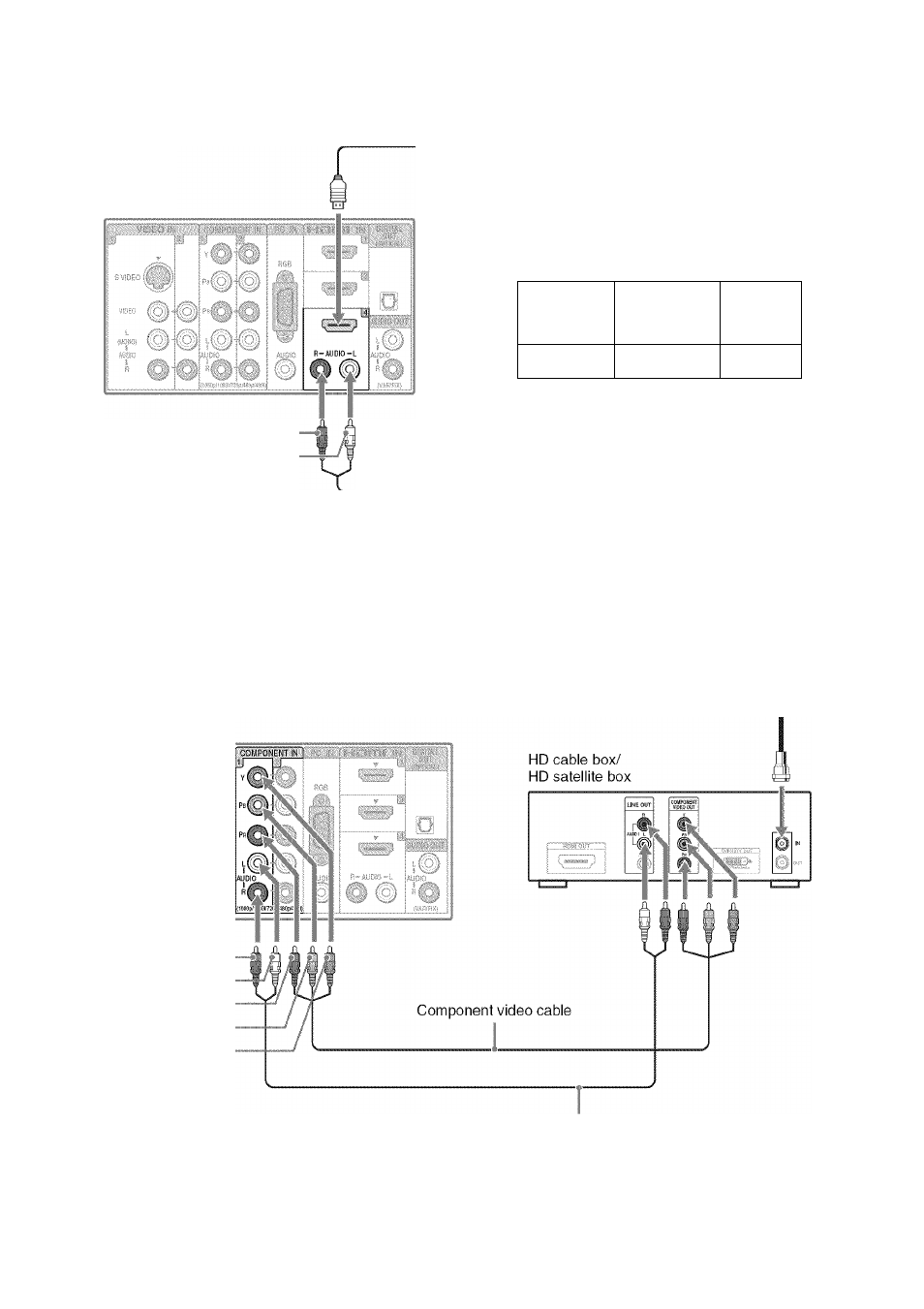

Shown with DVI Connection

Rear of TV

DVI-to-HDMI

cable

AUDIO-R (red)

AUDIO-L (white)

HD cable box/
HD satellite box

CATV/Satellite

antenna cable

LINE OUT

.

„

_

ri]“

] ^

O

•-i-

3'

(Q

CO
ST

a

Audio cable

' If the equipment has a DVI jack and not an HDMI jack, connect the DVI jack to the HDMI IN 4 (with DVI-to-HDMI

cable or adapter) jack and connect the audio jack to the AUDIO IN (L/R) jacks of HDMI IN 4. For details, see

page 11.

Shown with Component Connection

Rear of TV

AUDIO-R (red)

AUDIO-L (white)

P

r

(red)

P

b

(blue)

Y (green)

CATV/Satellite

antenna cable

Audio cable

(Continued)
