CDP-338ESD/608ESD

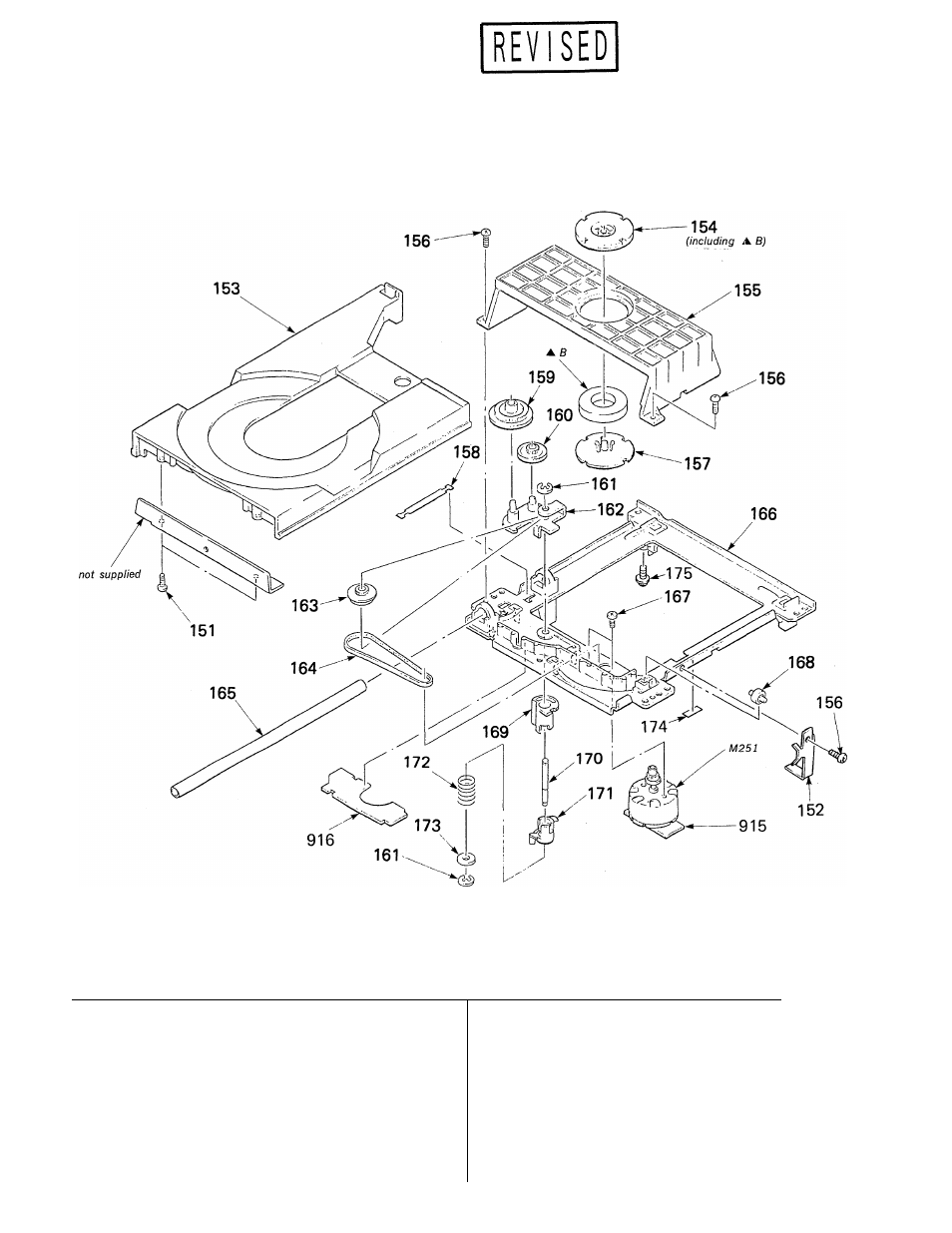

4-4. MECHANISM SECTION
(CDM11A-6B)
Ref.No
Part No.
Description
Remarks
Ref.No
Part No.
Description
151
7-685-647-79
SCREW +P 3X10 TYPE2 SLIT
165
4-927-617-01
BAR, GUIDE
152
*4-927-655-01
LIMITER
166
*4-927-641-04
CHASSIS (OUTSERT), MECHANICAL
153
*4-927-642-01
TABLE (EXL), DISK
167
7-621-775-08
SCREW +P 2.6X3
154
A-4665-024-A
MAGNET ASSY
■— 168
4-927-62?^01
ROLLER
155
*4-927-638-03
HOLDER (A.P)
169
4-927-624-01
CAM (L,A)
156
7-621-770-67
SCREW +BVTT 2.6X6 (S)
170
4-927-665-01
SHAFT (S)
157
*4-918-679-04
PULLEY, PRESS
171
4-927-635-01
CAM (L,B)
158
*4-927-648-01
SLIDER (GROUND)
172
3-659-338-00
SPRING, COMPRESSION
159
4-927-620-01
GEAR (P)
173
4-927-654-01
WASHER (LIMITER)
160
4-927-628-01
GEAR (C)
174
3-831-441-XX
CUSHION
161
7-624-105-04
STOP RING 2.3, TYPE -E
175
*4-917-583-21
BRACKET, YOKE
162
X-4927-608-1
ARM ASSY, SWING
915
*1-629-359-11
PC BOARD, L.MOTOR
163
4-929-724-01
PULLEY (B)
916
*1-629-360-11
PC BOARD, SWITCH
164
4-927-649-01
BELT
M251
A-4608-362-A
MOTOR (L) ASSY (LOADING)
Remarks
24
