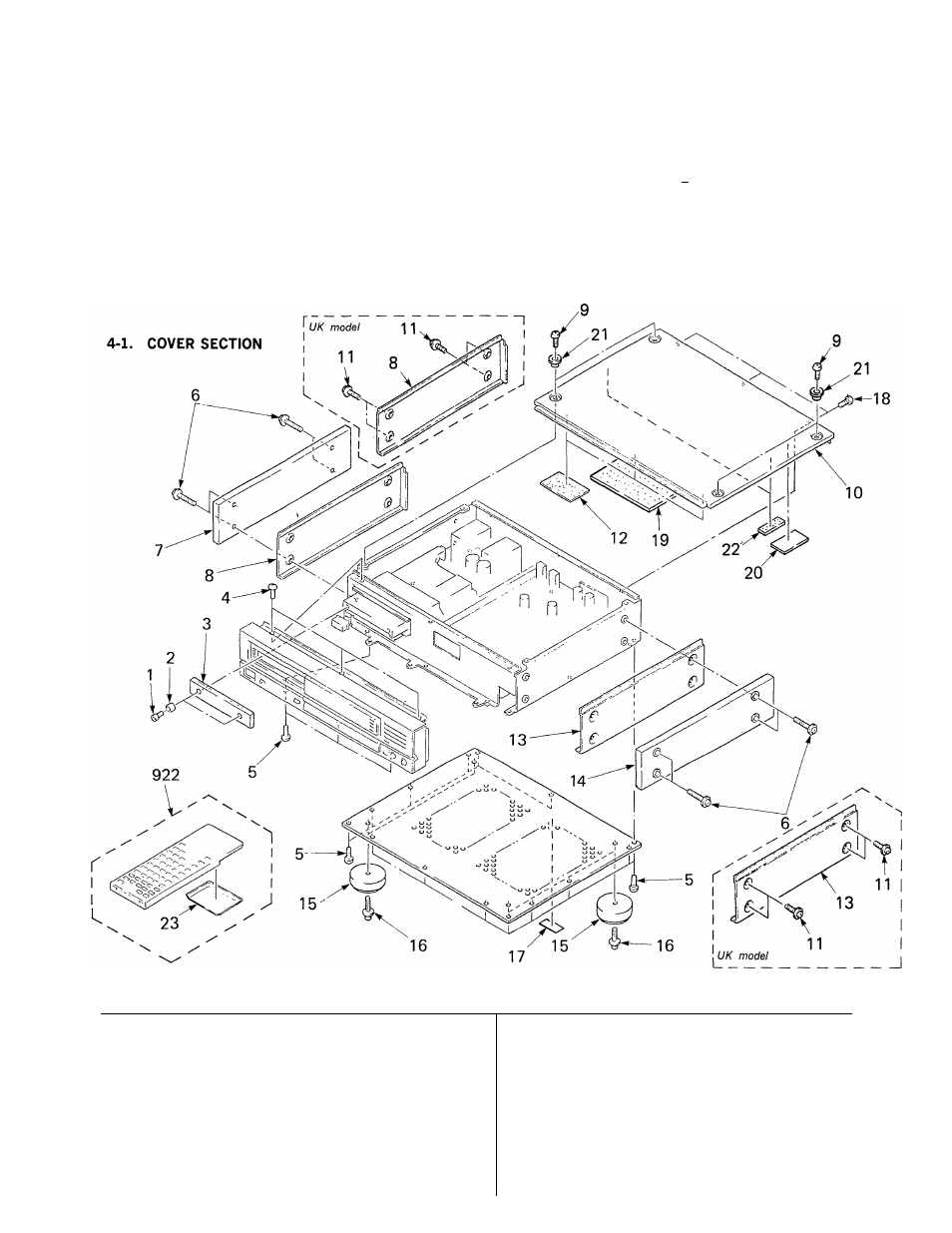

SECTION 4
EXPLODED VIEWS
CDP-338ESD/608ESD
NOTE:
•
The mechanical parts with no reference
number in the exploded views are not
supplied.
•
The construction parts of an assembled
part are indicated with a collation num
ber in the remark column.
•
Items marked are not stocked since
they
are
seldom
required
for
routine
service. Some delay should be antici
pated when ordering these items.
Due to standardization, parts with part
number suffix -XX and -X may be dif
ferent from the parts specified in the
components used on the set.
Color
Indication
of
Appearance
Parts
Example:
(RED) .. . KNOB, BALANCE (WHITE)
t
t
Cabinet's Color
Parts' Color
CND: Canadian model
The
components
identified
by
rriark ^ or dotted line with mark
A are critical for safety.
Replace only with part number
specified.
Les composants identifiés par une
marque ^ sont critiques pour la
sécurité.
Ne les remplacer que par une
pièce portant le numéro spécifé.
Ref.No Part No.
Description Remarks
Ref.No
Part No.
Description Rema
1
7-621-996-05
BOLT, HEXAGON SOCKET 2.6X5
13
*4-925-369-01
CASE (RIGHT)
2
4-884-635-00
BASE, ORNAMENTAL
14
X-4922-575-2
(AEP)....BOARD (RIGHT) ASSY, SIDE
3
X-4922-551-1
(CND, AEP, UK)... .PANEL ASSY, LOADING
14
X-4928-002-1
(US, CND. E)... .PLATE (RIGHT) ASSY. SIDE
3
X-4922-554-1
(US, E)... .PANEL ASSY, LOADING
15
X-4922-549-1
FOOT ASSY
4
4-929-073-01
SCREW (3X8)
16
7-682-664-09
SCREW +PSW 4X14
5
3-703-685-21
SCREW (+BV 3X8)
17
*3-703-079-21
(UK)... .LABEL, CAUTION (BACK)
6
4-885-979-11
(US, CND. AEP, E)... .SCREW (4X25)
18
4-886-821-21
SCREW, M3 CASE STOPPER
7
X-4922-574-2
(AEP)... .BOARD (LEFT) ASSY, SIDE
19
*4-913-189-11
FELT (B), ACOUSTIC ABSORBENT
7
X-4928-001-1
(US, CND. E)....PLATE (LEFT) ASSY, SIDE
20
*4-923-557-01
DUMPER
8
*4-925-368-01
CASE (LEFT)
21
4-928-025-11
ESCUTCHEON (TOP PLATE)
9
4-924-242-11
SCREW (M3X6), FLAT HEAD
22
*4-929-017-01
CUSHION
10
4-925-367-01
CASE (TOP PLATE)
23
4-928-079-01
COVER, BATTERY
11
4-847-802-00
(UK)....SCREW
922
1-465-047-11
REMOTE COMMANDER (RM-D670)
12
*4-923-563-01
CUSHION
23
21
