CDP-338ESD/608ESD

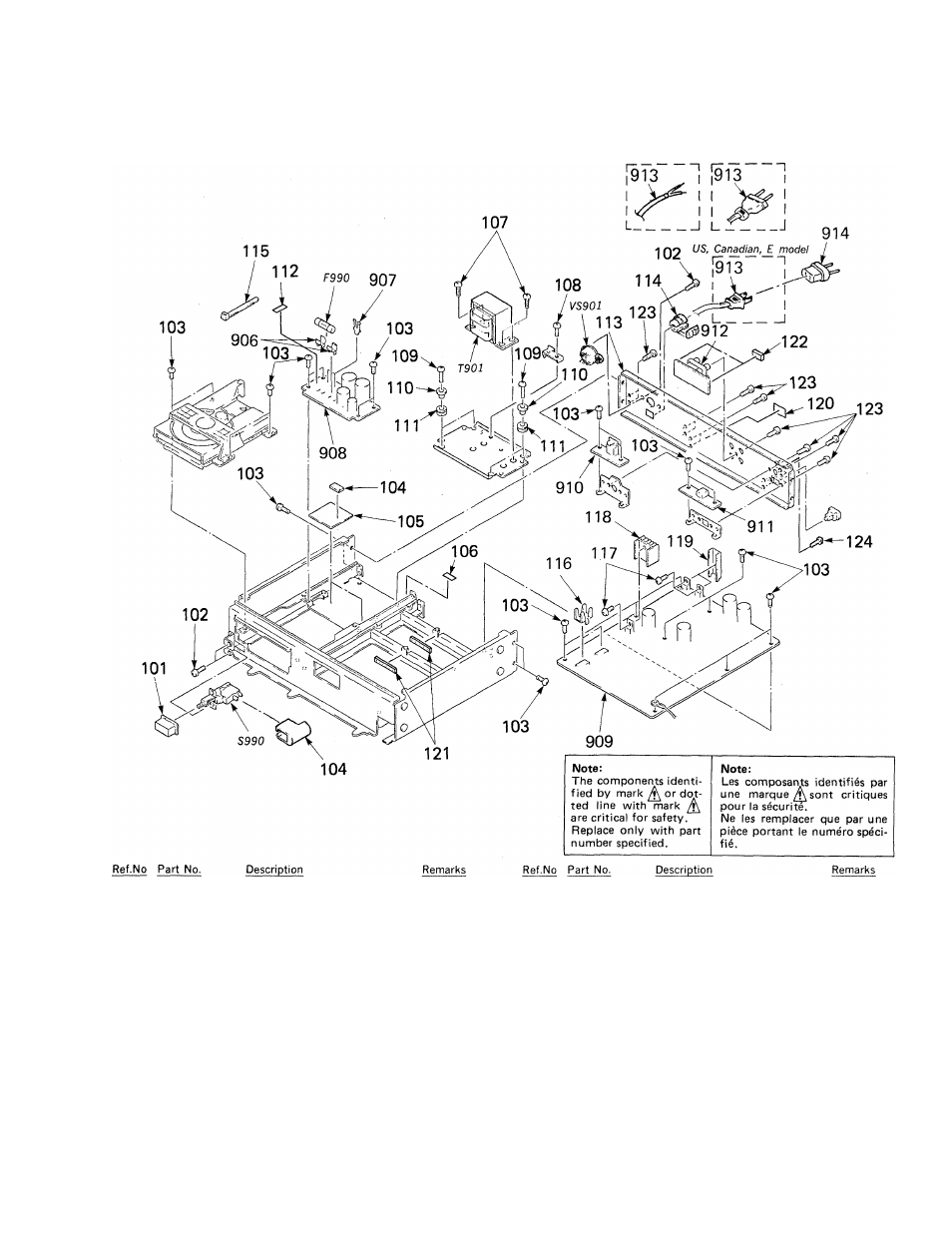

4-3. CHASSIS SECTION
UK model AEP model
101
102
103
104
105
106
107
108
109
no
111
112
112
113
113
113
113
113
114
115
116
117
118
119
120
-923-520-01
-682-547-09
-929-073-01
-575-524-00
-925-394-01
-831-441-XX
-682-560-04
-682-547-04
-685-873-09
-928-032-01
-888-798-00
-701-948-10
-701-947-08
-925-361-12
-925-361-22
-925-361-32
-925-361-42
-925-361-52
-231-019-00
-655-653-21
-922-525-01
-682-147-15
-363-146-00
-309-144-01
-885-838-00
KNOB, POWER
SCREW -EB 3X6
SCREW (3X8)
COVER, POWER SWITCH
SHEET, INSULATING
CUSHION (B), CABINET
SCREW -fBVTT 4X6 (S)
SCREW -fBVTT 3X6 (S)
SCREW -fBVTT 3X10 (S)
COLLAR (A)
BUSHING, RUBBER .
(AEP, UK)... .LABEL (T400MA), FUSE
(E)....LABEL (T500MA), FUSE
(US)....PANEL, BACK
(CND)....PANEL, BACK
(AEP)....PANEL, BACK
(UK)....PANEL, BACK
(E)....PANEL, BACK
CLAMPER, CORD
BAND (TAITON), BINDING
HEAT SINK
SCREW,TR
HEAT SINK, V.OUT
HEAT SINK
(AEP, UK, E)....LABEL, CLASS 1
121
122
123
124
906
907
908
909
910
911
912
913
913
913
* 4 -
*4-
4-
7-
1 -
*1-
*1-
* A
*1-
*1-
*1-
Ll-
^.1-
4 \ . i -
913 A-1-
914 1 -
F990 A-1
F990 A.l
F990 A.1-
S990 A-1-
T901 A.l-
T901 A.l
T901 A.1-
VS901A.1-
•929-013-01
•929-018-01
•929-074-01
•685-647-79
•533-183-11
•535-688-11
■629-020-11
-4651-225-A
■629-017-11
•629-016-11
■629-019-11
•555-386-00
•555-795-00
556- 035-00
557- 577-11
526-565-00
•532-066-11
•532-279-00
•532-741-11
•570-156-11
■449-631-11
■449-632-11
■449-633-11
526-576-51
ABSORBENT, VIBRATION
ABSORBENT, VIBRATION
SCREW (3X8)
SCREW -f BVTP 3X10 TYPE2 N-S
HOLDER, FUSE
TERMINAL
PC BOARD, POWER
MOUNTED PCB, MAIN
PC BOARD, COAXIAL
PC BOARD, OPTICAL
PC BOARD, LINE OUT
(E)....CORD, POWER
(AEP)....COAD, POWER
(UK)....COAD, POWER
(US, CND)....COAD, POWER
(E)....AC PLUG ADAPTOR
(AEP, UK)... .FUSE, TIME-LAG T0.4A
(E)....FUSE, TIME-LAG T0.5A
(US, CND)... .FUSE, GLASS TUBE 1.25A 125V
SWITCH, PUSH (AC POWER)(l KEY)(POWER)
(E)....TRANSFORMER, POWER
(US,CND)....TRANSFORMER, POWER
(AEP, UK)... .TRANSFORMER, POWER
(E)....SELECTOR, POWER VOLTAGE
23
