CDP-338ESD/608ESD

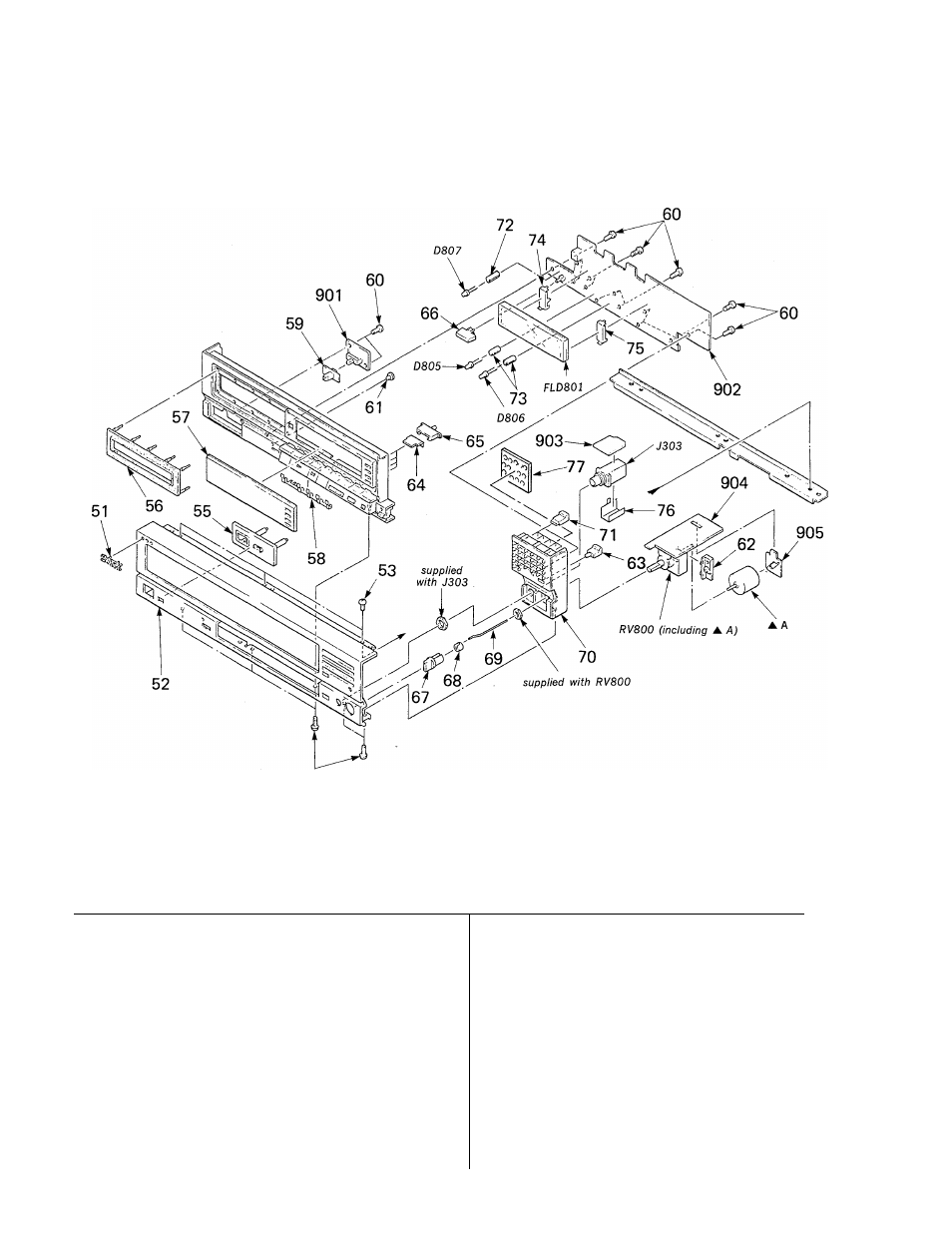

4-2. FRONT PANEL SECTION
54
Ref.No
Part No.
Description
Remarks
Ref.No
Part No.
Description R
51
4-908-848-01
EMBLEM, SONY
71
4-927-604-01
BUTTON (MC)
52
4-925-353-01
PANEL. FRONT
72
*4-923-532-31
SPACER, LED
53
7-685-870-01
SCREW +BVTT 3X5 (S)
73
*4-923-532-21
SPACER, LED
54
7-685-646-79
SCREW +BTP 3X8 TYPE2 N-S
74
*4-922-524-01
HOLDER (LEFT)
55
*4-925-374-01
ESCUTCHEON (POWER SWITCH)
75
*4-922-523-01
HOLDER (RIGHT)
56
4-925-375-01
PACKING (LOADING)
76
4-925-366-01
PLATE (HP), GROUND
57
4-925-373-01
PLATE, INDICATION
77
*4-929-021-01
CUSHION (20 KEY)
58
4-925-384-01
PLATE (BUTTON), GROUND
901
*1-629-023-11
PC BOARD, TIMER
59
4-922-518-11
KNOB (TIMER)
902
*A-4655-076-A
MOUNTED PCB, DISPLAY
60
7-685-134-19
SCREW +BTP 2.6X8 TYPE2 N-S
903
*1-629-022-11
PC BOARD, HEADPHONE
61
4-925-327-01
INDICATOR
904
*1-629-024-11
PC BOARD, REMOCON VR
62
*4-922-980-01
HOLDER (LED)
905
*1-629-025-11
PC BOARD, REMOCON MO
63
4-925-383-01
BUTTON (DIAPLAY)
D805
8-719-907-81
DIODE 5P-4M
64
4-925-381-01
BUTTON (MODE)
D806
8-719-907-75
DIODE AA5534S
65
4-925-382-01
BUTTON (MODE HOLDER)
D807
8-719-971-70
DIODE BR3867S
66
4-925-326-01
BUTTON (D/A)
FLD801 1-519-476-11
INDICATOR TUBE, FLUORESCENT
67
4-922-977-01
KNOB (HP)
J303
1-507-796-61
JACK, LARGE TYPE (PHONES)
68
4-922-978-01
HOLDER (FIBER)
RV800
1-238-315-21
RES, VAR, CARBON lOK/lOK (LINE OUT)
69
4-922-979-01
INDICATOR
(Including VOL MOTOR)
70
*4-925-355-01
BASE (RIGHT), PANEL
