Sony KL-W7000 - Manual (Page 10)

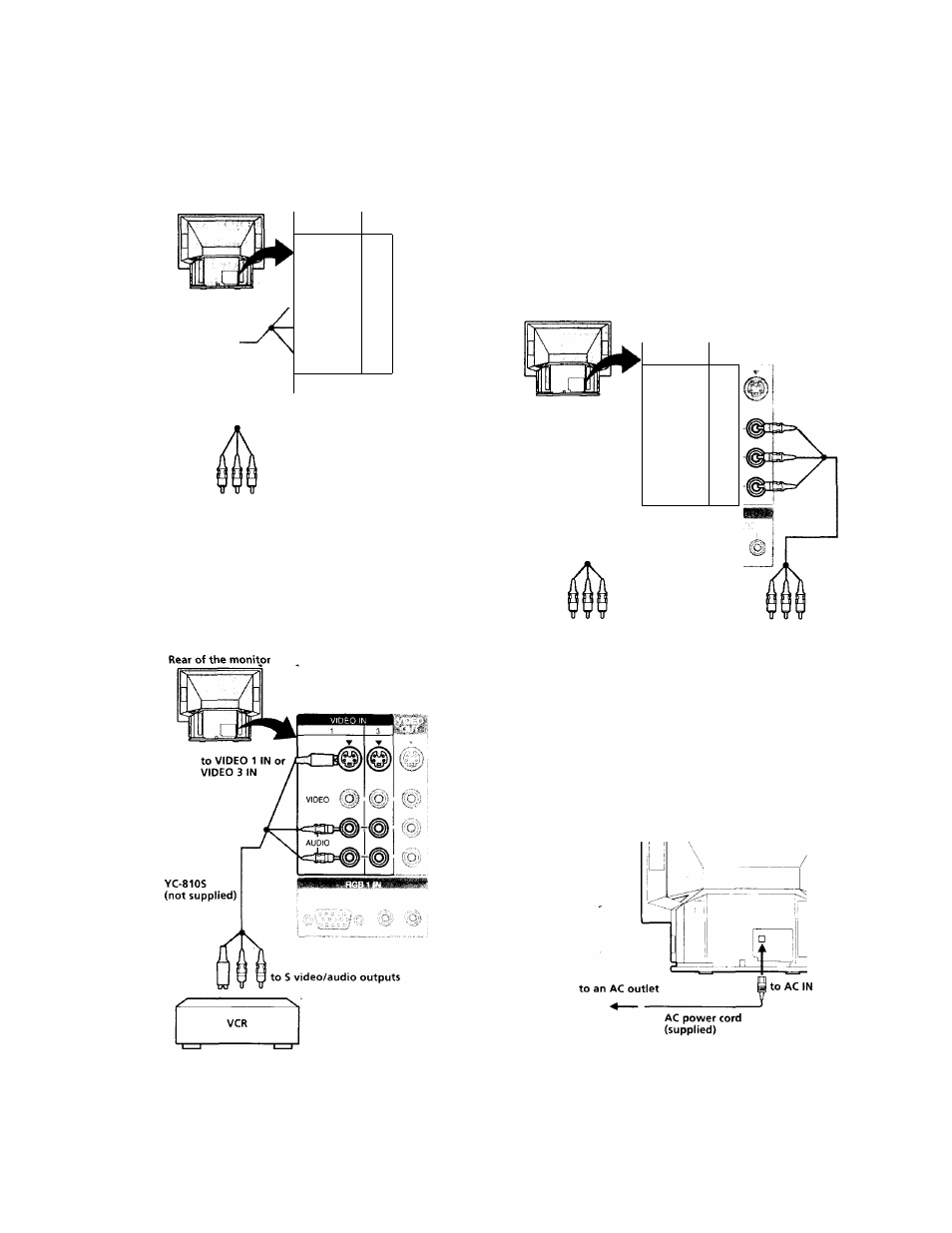

Connecting to video equipment
To a VCR not equipped with an S video
connector
Rear of the monitor
to VIDEO 1 IN or
VIDEO 3 IN
VMC-810S/820S
(not supplied)
V£5' U/'
#
AUDIO
9HBB!!iSi!!s3uu3
tO'; ,
to video/audio outputs
VCR
You can also use the VIDEO 2 IN jacks on the front of
the monitor for the video/audio connections.
To an S video equipped VCR
Note
• When you connect the cable to both the VIDEO jack and the S
VIDEO connector, the picture from the S VIDEO connector is
displayed on the monitor screen.
'I Q-EN Getting Started
Connecting two VCRs for editing
The monitor outputs signals from the VIDEO IN jacks
through the VIDEO OUT jacks. With two VCRs
connected to the VIDEO IN and VIDEO OUT jacks, you
can edit the tape.
Note
For the RGB signal input from the RGB 1 / 2 IN
connectors, the monitor outputs only the audio signal.
Rear of the monitor
to VIDEO 1 IN
or VIDEO 3 IN
VMC-810S/
820S
(not supplied)
<
1 3
■r
< z :y
AUDIO
1
to VIDEO OUT
to video/audio
outputs
VMC-810S/820S
(not supplied)
to video/
audio
inputs
VCR for playback VCR for recording
Connecting the AC power cord
Connect the supplied power cord to the AC IN socket
of the monitor and to a wall AC outlet.
Rear of the monitor
