Step 1: Check the direction of the drive by pressing the TRIGGER (#4) as shown in Figure 3.

Loosening

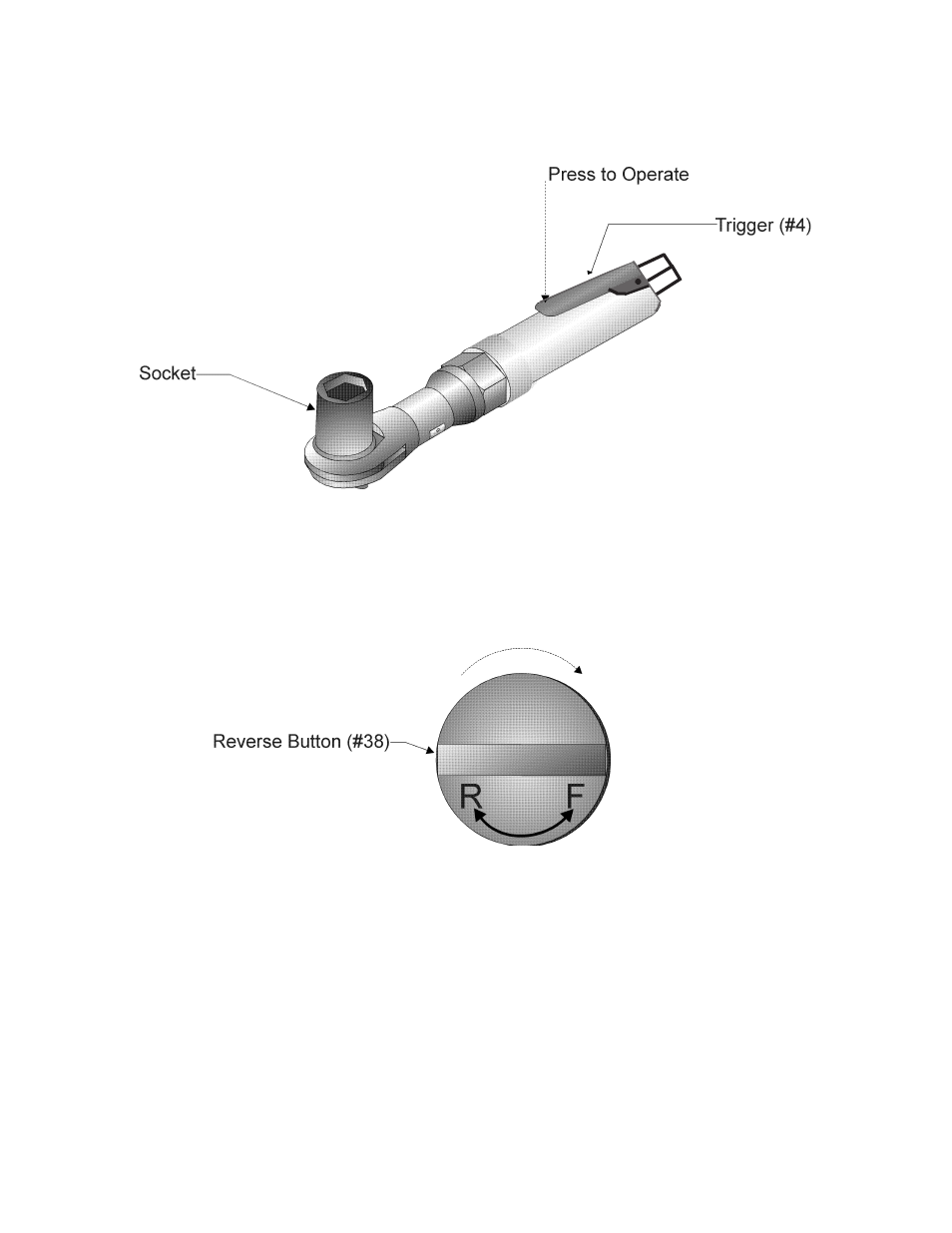

Figure 3 — Operating the Air Ratchet

Step 2: If the Air Ratchet is going counterclockwise (the correct direction to loosen), then

proceed to Step 4.

Step 3: To change the direction of the drive to loosen, turn the dial marked “R-F” clockwise as

shown in Figure 4.

Figure 4 — Changing Direction of the Drive

Step 4: Place the socket over the nut to loosen.

Step 5: Grip the Air Ratchet firmly. Press the TRIGGER to begin loosening.

Step 6: If the Air Ratchet cannot loosen the nut, DO NOT raise the outlet pressure of the air

compressor. Do not continue attempts to loosen with the Air Ratchet. Use appropriate
tools and methods to loosen the nut.

Step 7: When the nut is removed, stop the Air Ratchet by releasing the TRIGGER and remove

the Air Ratchet. Remove the nut from the socket if needed.
