MAINTENANCE

Your Air Ratchet is best operated with an Airline Oiler. If you are using the Air Tool without an
Airline Oiler, follow the steps below.

Step 1: Disconnect the Air Ratchet from the air hose.

Step 2: Apply a few drops of PNEUMATIC TOOL

OIL through the air inlet before each use,
or every hour if used continuously.

Step 3: Apply a few drops of oil to the VALVE

(#6), location shown in Figure 6. Work
the TRIGGER a few times to lubricate.

CAUTION

Do not use detergent oil or additives as

these lubricants will cause accelerated

wear to the seals in the tool.

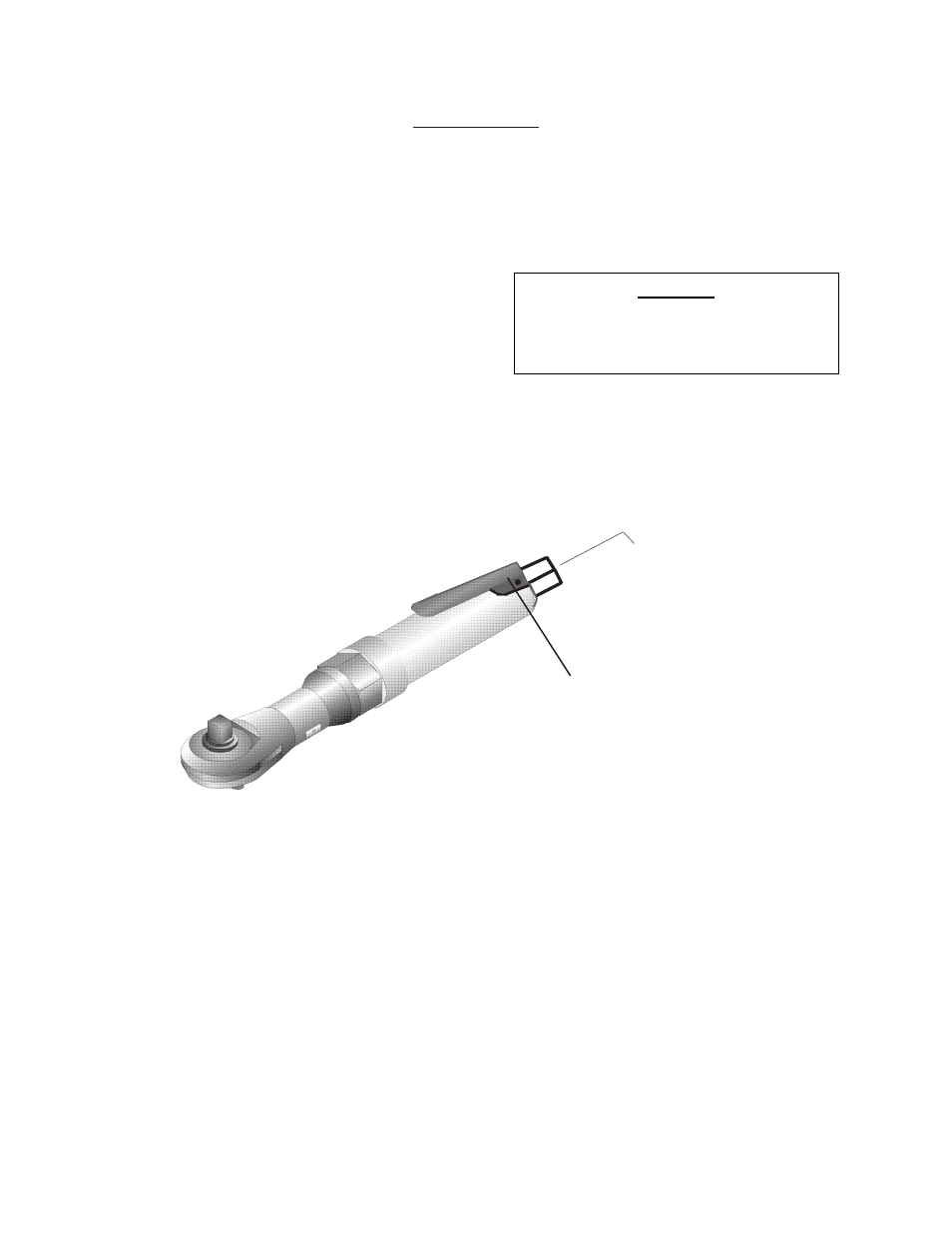

Figure 6 — Lubrication Points

Page #11 -- SKU: 33567

REV 12/02

REV 05/04

Valve (#6)

(underneath trigger)

Air Inlet

123456
