Page 8

Step 2: Attach the socket to the RATCHET ANVIL (#18) as shown in Figure 2.

Step 1: Select the appropriate socket for your needs.

Air Ratchet Operation

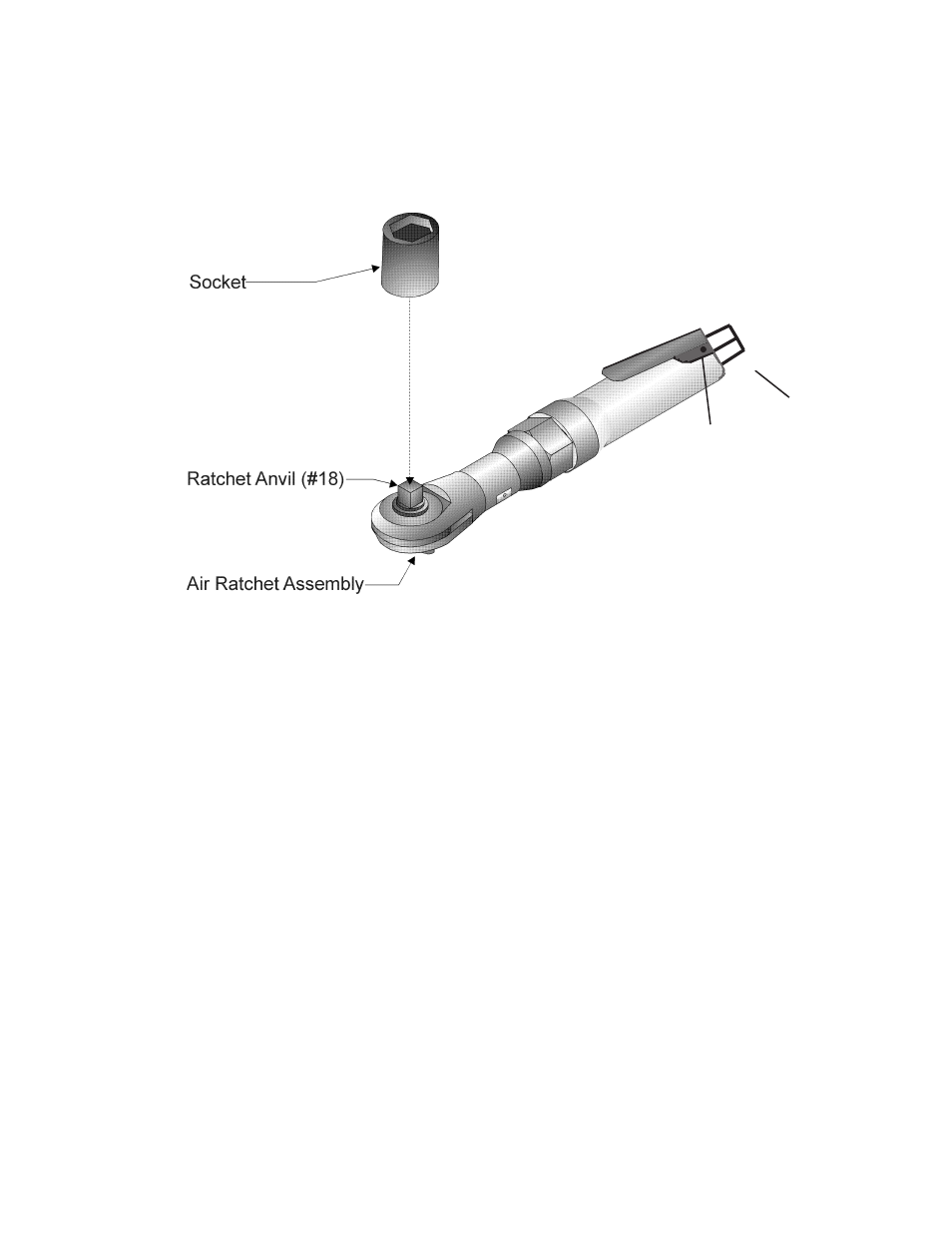

Figure 2 — Attaching the Socket

Step 3: Set the compressor’s pressure regulator to 90 PSI. Do not set the compressor’s outlet

regulator over 90 PSI.

Step 4: Connect the Air Ratchet to the air compressor’s hose. If leaking is detected, discon-

nect the air hose and repair before use.

Page #8 -- SKU: 33567

REV 12/02

Roll Pin
(#5)

Air Inlet

123456

For technical questions, please call 1-800-444-3353.
