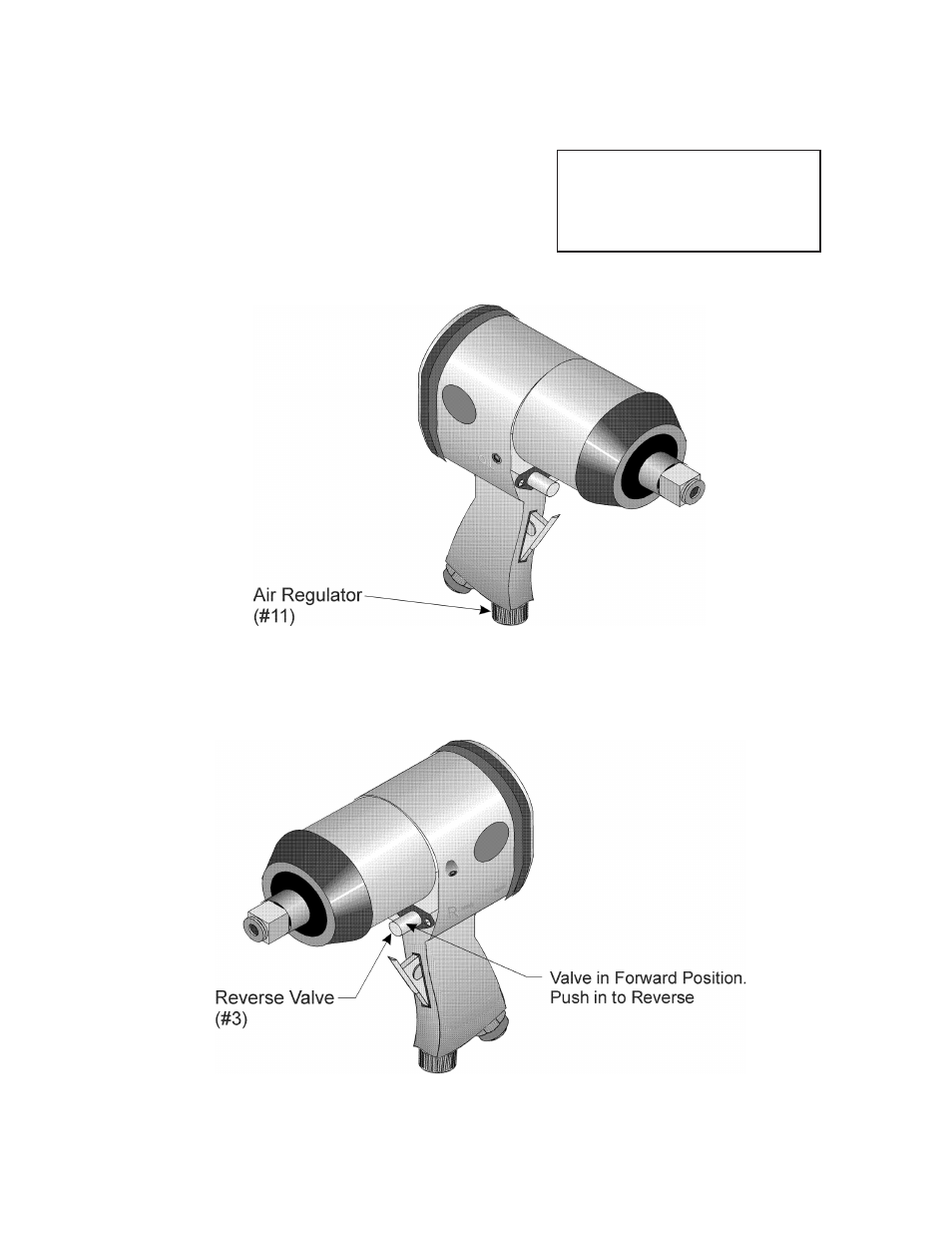

Step 6: Select the power setting for Loosening by pushing in and turning the AIR REGULATOR
(#11) located on the bottom of the
Impact Wrench as shown in Figure 8.
When the AirRegulator is completely
screwed in it is at it’s lowest setting.
Air pressure increases as you push in
and turn the Air Regulator.
Figure 8 — Adjusting the Reverse Power Setting
Step 7: Select the direction of the Wrench (forward or reverse) by pushing the REVERSE
VALVE (#3) located on the handle of the Impact Wrench as shown in Figure 9.
Figure 9 — Selecting Reverse Direction
Page #13 -- SKU: 33567
REV 12/02
REV 05/04
CAUTION
Use the Setting Appropriate for the
Job. Do Not Set the Power Setting
Higher Than Needed. Damage to
Parts Could Result.
For technical questions, please call 1-800-444-3353.
