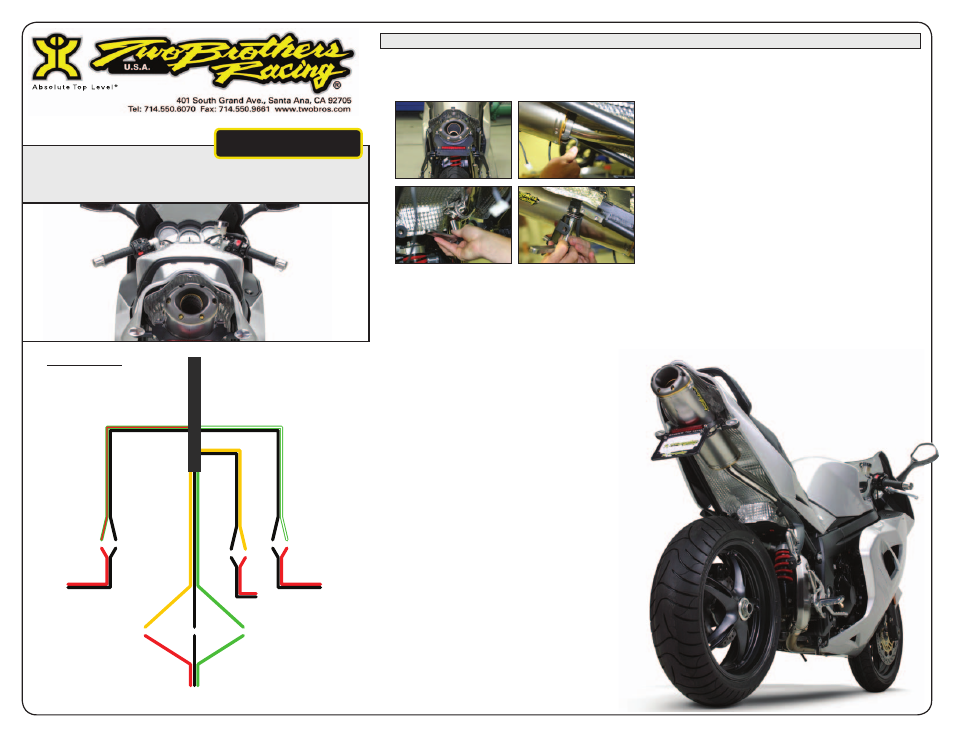

Two Brothers Racing Triumph Sprint ST 1050 - Manual (Page 2)

V.A.L.E.
V a r i a b l e a x i s l o c k i n g e x h a u s t
TM
Installation Instructions
10. Make sure muffler is aligned when the bike is centered.
Then tighten the four V.A.L.E.™ assembly bolts and
clamp bolts. Make sure there is clearance between wiring
and all body parts.
11. Attach the turn signals/taillights and plate lights as
shown in Wiring Diagram. Join wires to main wire
harness using the supplied splice connectors and blue
scotch locks. You can either cut the OEM modular
connectors off of the wiring harness or splice new wire to
them. The supplied lighting devices will need to have the
modular connectors removed. Run all wiring to the left
side of the rear frame, away from the muffler assembly
making sure there is adequate clearance from all body
parts. Make sure all lights work correctly.
12. Re-install the fender assembly, rear cowling, seat and
handle from steps 2-4.
13. Double check your work for alignment and fitment.
14. Before you run the bike, clean off all fingerprints and
dirt, as any oily residue will etch the metal and become
somewhat permanent when the system gets hot.
Remove any plastic film from name badge(s) and/or
canister clamp(s). Run the bike and enjoy. It is normal
for some white smoke to appear the first time you start
the bike. This is packing/manufacturing oil from inside
the pipe burning off. Check for gaps or leaks. If you find a
leak, a little high temperature silicon sealant should fix it.
After 50 to 100 miles, recheck all fasteners for tightness.
2006-10 Triumph
Sprint St 1050
V.A.L.E.™ Slip-on Exhaust System with M-5 Canister
Part # 005-1540419V, 005-1540420V
LED Brake Light
Right Turn Signal Left Turn Signal
Light Bolts
Right Turn Signal
(Green/White & Black)
Left Turn Signal
(Green/Red & Black)
Brak
e Lights
Plate Lights
Wiring Harness
Yellow Black Green
Red Black Green
Black
Black
Red
Green/Red
Black
Black
Red
Green/White
WIRING DIAGRAM
