V.A.L.E.

V a r i a b l e a x i s l o c k i n g e x h a u s t

TM

Installation Instructions

Installation Instructions

2011 Polaris

RangeR RZR 800

V.A.L.E.™ Triple Full Exhaust System with M-7 Aluminum Canister
Part # 005-3010106TV

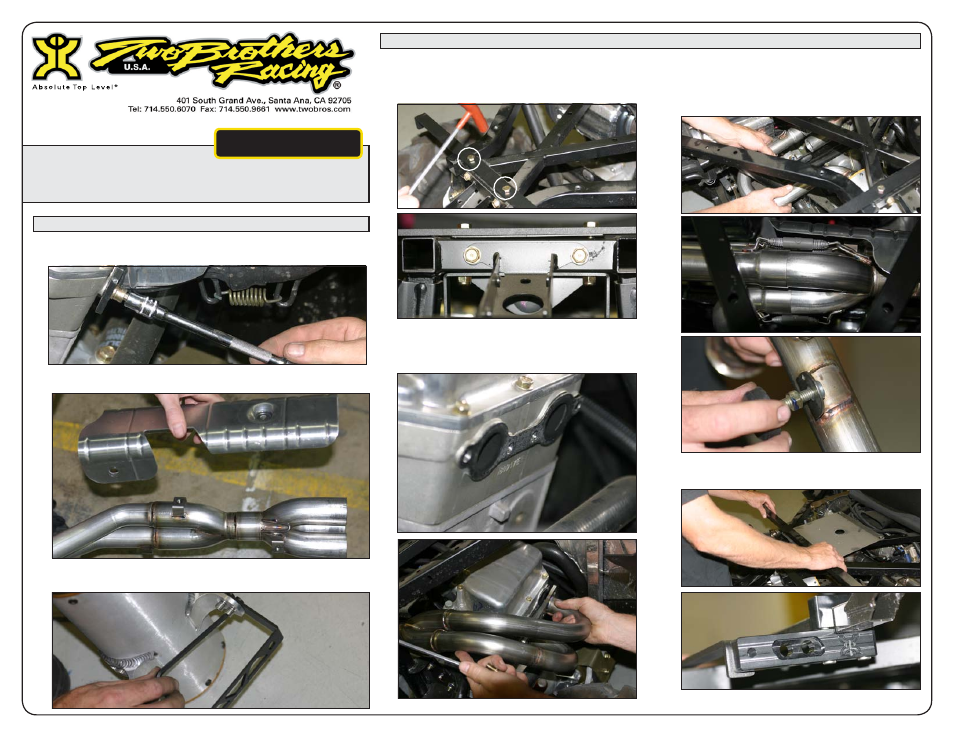

4. Remove OEM header assembly.

5. Remove OEM heatshield from header, reinstall on TBR header using

supplied 6x12mm cap screws and washers.

6. Attach the hanger bracket to the TBR center muffler using the 4 (four)

6x14mm socket head cap screws and split lock washers provided.

7. Remove rear frame bolts/nuts to install muffler stabilizer

mount on top of frame rail and center muffler with
mounting bracket attached under frame rail. The stock
hardware is re-used.

8. Install TBR header to cylinder head using the supplied

header gasket (if the stock gasket is un-damanged
you may use that instead) and OEM mounting bolts at
header flange.

9. Locate slip-fit joint exhaust pipes and attach with

supplied springs right side slip tube marked “R” to triple
collector marked “R” and the same with “L” to “L” and
“C” to “C”. The left side exhaust pipe uses OEM tension
stop(remove from OEM exhaust and install on TBR.

10. Mount supplied muffler mounting brackets to bed

support using the supplied 8x35mm socket head cap
screws and lock washers provided, leave loose for now.
