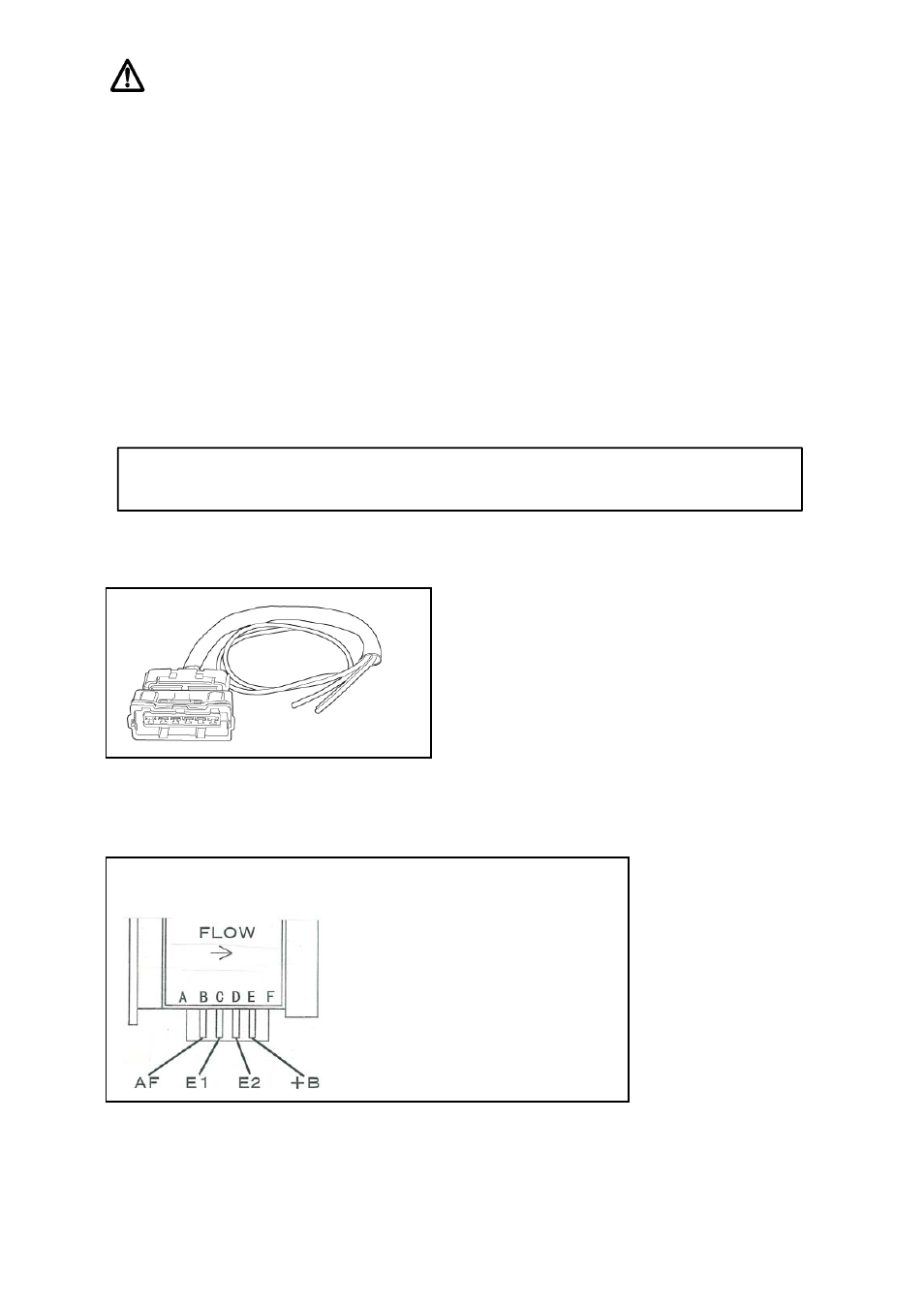

Tomei Powered Z32 AIR FLOW COUPLER - Manual (Page 5)

CAUTION
■ This product is designed to be used for off road competition purposes only.
■ This product will change the safety characteristics of the car and should not be used on public roads.
Doing so may break your local laws.
■ This product is to be installed by a qualified professional in a fully equipped workshop.
■ This product is to be fitted with the correct tools, protective & safety equipment. Failure to do so can lead
to possible work hazards.
■ Refer to the vehicles original workshop service manual when disassembling the engine.
■ This product was specifically designed to be application specific. This is not a universal product.
If installed on any other vehicles/engines, this product may sustain damage and/or cause engine failure.
■ This product is to be installed when the engine is cold to prevent risk of burns.
■ Do not use excessive force when removing and installing parts. As this may cause damage to the parts
and related components.
■ Remove the key from the ignition and disconnect the negative terminal from the car battery.
REQUIRED TOOLS
These tools are the bare minimum required for the job.
・General Engine Maintenance Tools ・Workshop Service Manual
・Wiring Tools (Nipper, Electric Wire Stripper Crimper, Electrical Tape) ・Soldering Iron ・Solder
KIT CONTENTS Below is the contents of this kit with the quantity listed in brackets ().
5
Z32 AIR FLOW METER WIRING
Nissan Genuine Part Number: 22680-30P00
AF : Air Flow Meter Signal
E1 : Control Unit Ground
E2 : Air Flow Meter Ground
+B : Control Unit Power
Z32 Air Flow Coupler (1)
