Tomei Powered SLICING BAFFLE - Manual (Page 7)

- 7 -

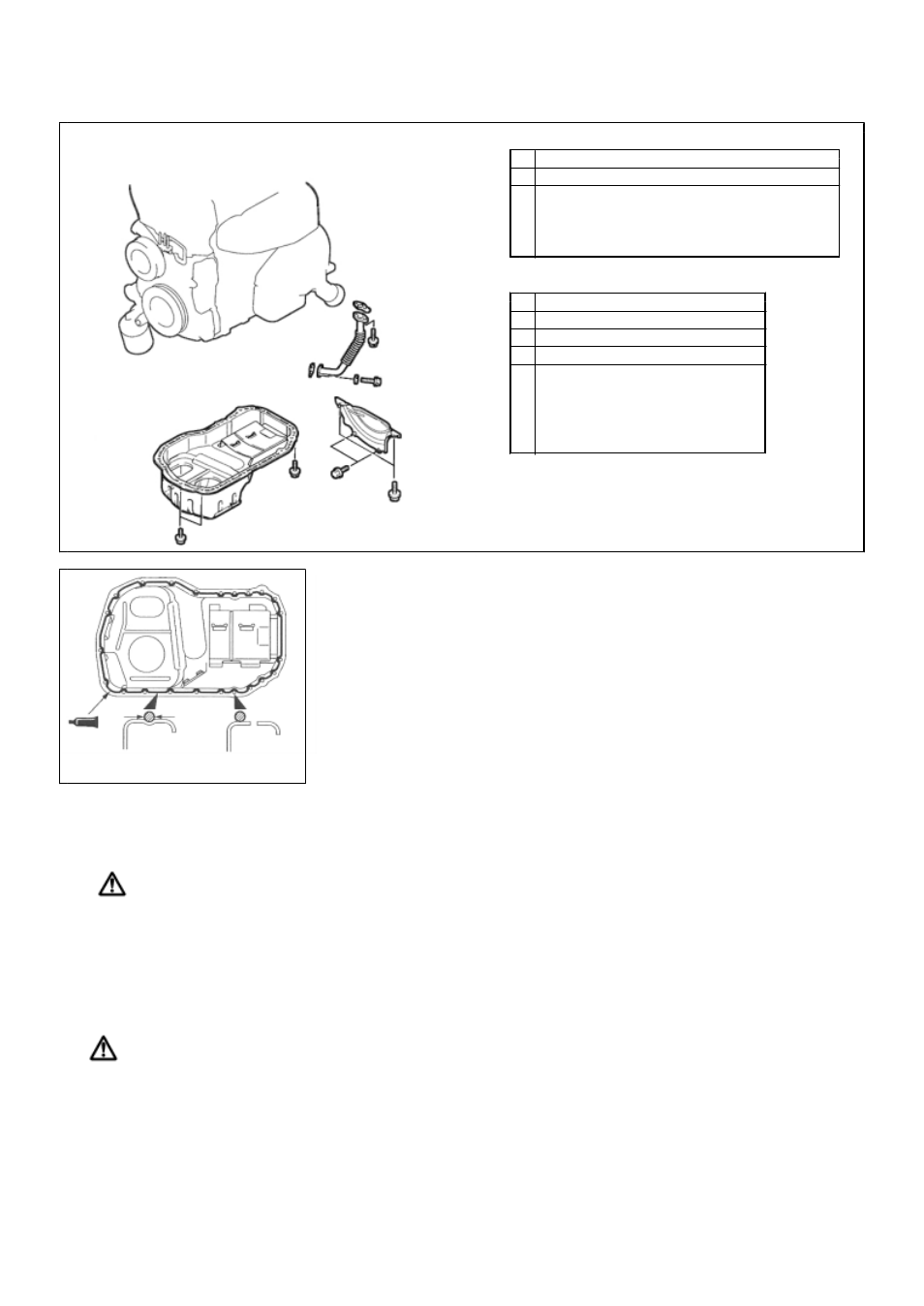

Reassembly
① Oil Return Pipe Gasket A
② Oil Return Pipe Gasket B
Oil Return Pipe Bolt Washer Gasket ③
Torque Tension Settings. ] [
A
9.0 N/m (0.9 kgf/m) ①
B 14.0 N/m (1.4 kgf/m)
A C 9.0 N/m (0.9 kgf/m)
D 26.0 N/m (2.6 kgf/m)
←凸 ② B
9.0 Nm (0.9 kgf/m) ③ E
10.0 N/m (1.0 kgf/m)
C D
E
※M6×6mm (Note Size) C
1. Installation of the oil pan.
(1) Please ensure that there is no abnormal bends in the oil pan.
If you do find any signs of bend(s), then have it fixed before fitment.
(2) You can use liquid gasket (like silicon) for the oil pans flange for
adequate sealing.
（Cover all contact areas with about 4mm thick of sealant）
(3) Fit the Oil Panto the cylinder block.
Groove Bolt Hole
《 Torque Settings》
9.0N/m (0.9kgf/m)
2. Now fit the other parts that were removed from the beginning.
( Please refer to the torque settings as listed above ).
Please be careful when fitting the Oil Return Pipe Gasket B.
(The elevated grove is to be facing the oil pan side).
3. Connect the car batterys negative terminal.
4. Double check that there is adequate engine oil in the engine and that it is circulating properly.
5. After starting the engine, perform a safety check for any oil & fluid leaks.
Do a safety check on the oil pan for any signs of leakage to be sure that the liquid/silicon sealant
is providing a perfect seal.
