ASSEMBLY CONFIGURATION
CAUTION
■ Refer to the official workshop service manual to verify the correct torque requirements for other bolts
and the bearing clearances.
■ The tightening torque on the Main bearing caps will increase when using this product. You will need to
check all the bearing clearances again to be sure that the journal clearances are all correct.

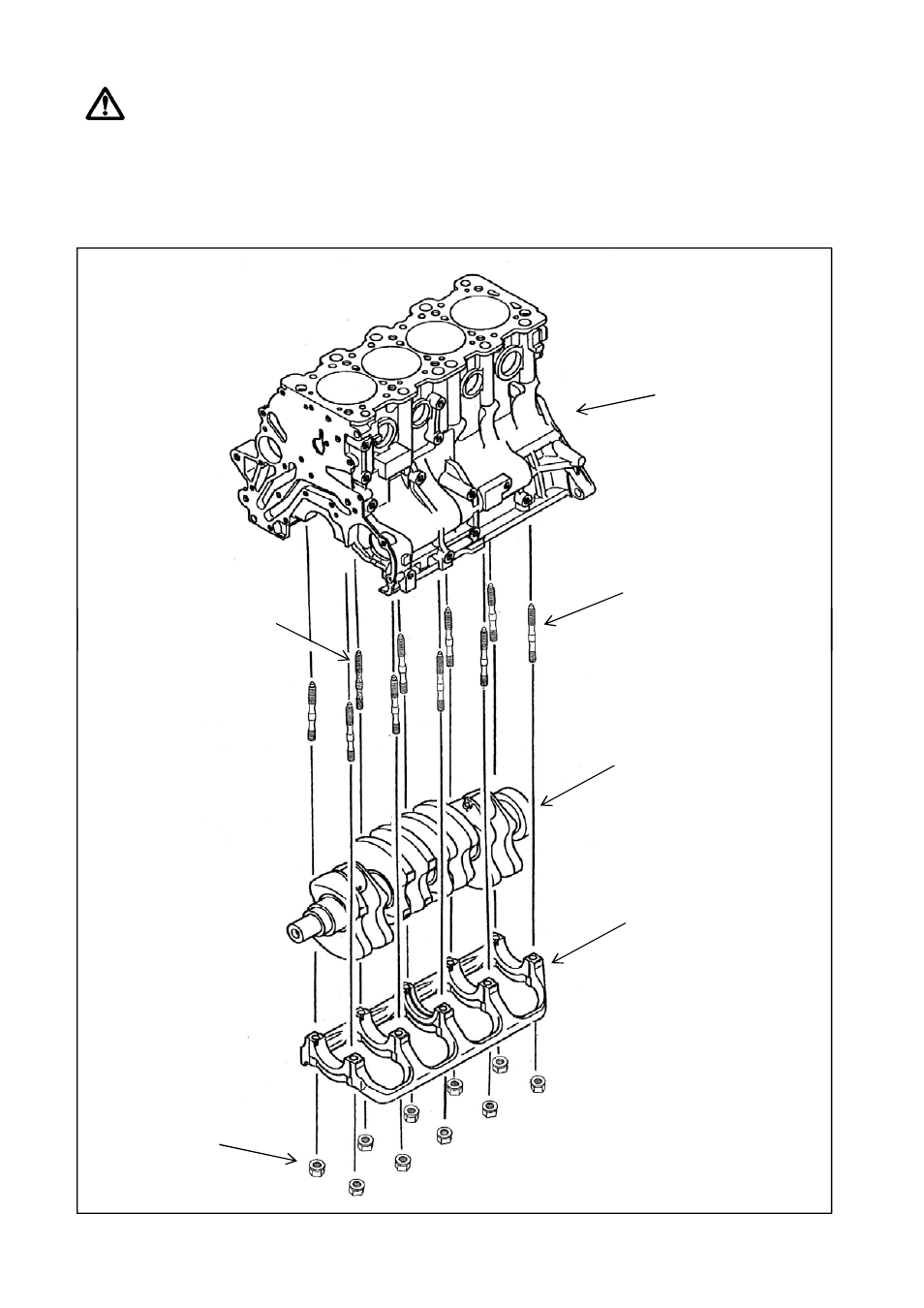

Cylinder Block
Stud Bolt (Short x1)
Stud Bolt (Long x9)
6
Stud Bolt (Short x1)
Crankshaft
Nut (10)
Main Bearing Beam
6
