Taylor-Wharton Microbulk Tanks - Manual (Page 34)

TW-407 Rev.-
32

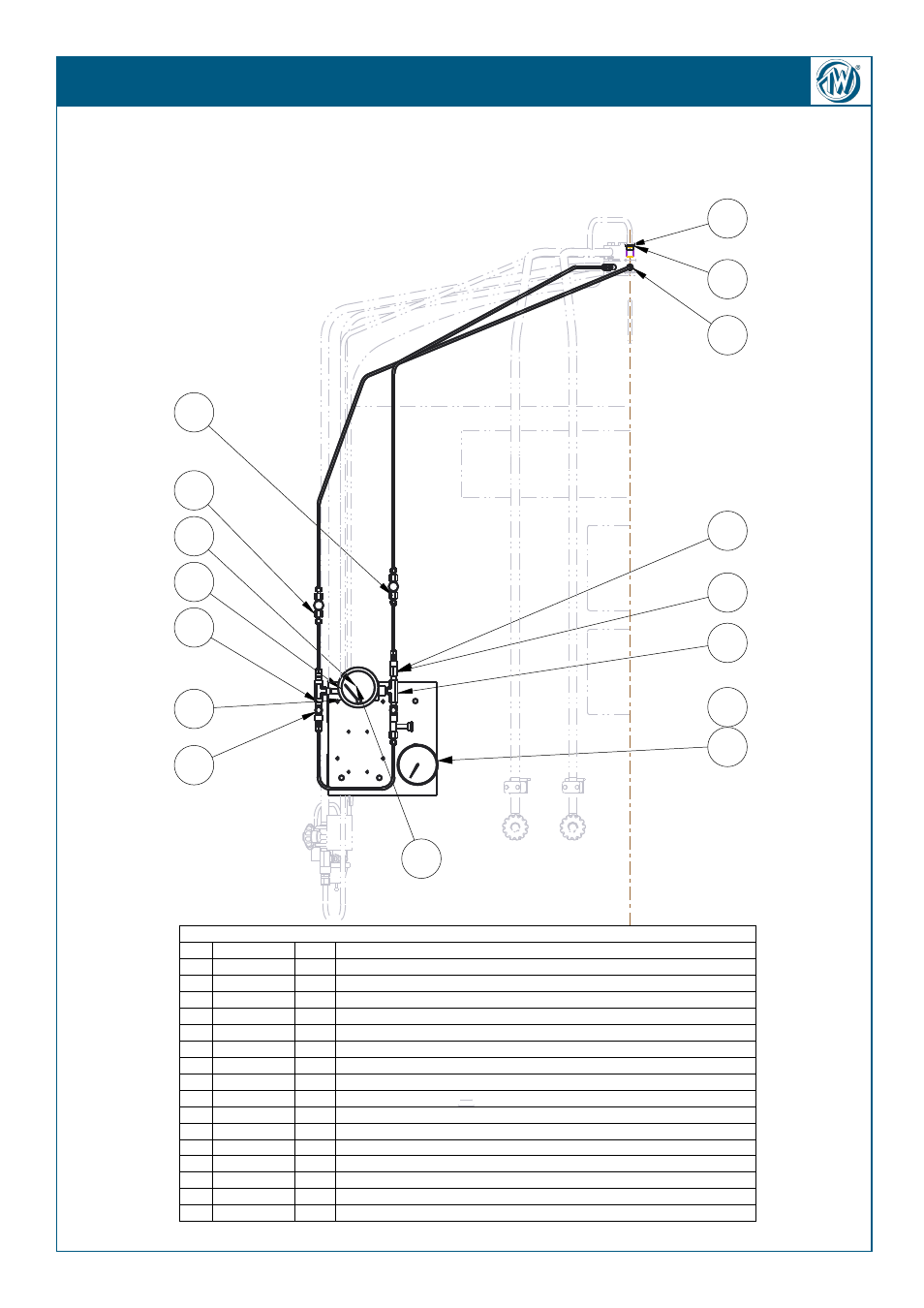

STANDARD REPLACEMENT PARTS
Instrumentation Kit (VHP/HP)
BILL OF MATERIALS
ITEM NO.
PART OR
CODE NO.
NO.
REQ'D
DESCRIPTION
1 45702003 1 BULKHEAD CONNECTOR, .25 ODT x .25 FPT, SS SWAGELOK ONLY
2 57143737 1 PRESSURE GAUGE, 4", 600PSI, 1/4"NPT LBM
3 57143696 1 GAUGE,DIFF.PRESS3.5"DIAL,0-150
4 45500513 1 TEE, MALE BRANCH, .25 X .25 X .25, NPT, BRASS SWAGELOK
5 45504838 3 TEE, STREET, BRASS, 1/4" SWAGELOK
6 45701766 4 CONNECTOR, MALE, 1/4" ODT X 1/4" MNPT, SS, SWAGELOK
7 43355999 1 NIPPLE, 1/4" SCH 80 X 2" LONG
8 45500512 1 TEE, FEMALE, 1/4" NPT, BRASS SWAGELOK
9 45701950 5 FEMALE CONNECTOR, .25 ODT COMPRESSION x .25 FPT, SS, SWAGELOK
10 85443725 3 VALVE, GLOBE, 1/4" MNPT, BRASS
11 6460-2887 2 WASHER, LOCK, #8, STN STL
12 41431100 2 CAP SCREW, HEX HEAD, #8(.164)-32 UNC X .50 LG, SS
13 45701925 2 CONNECTOR, MALE, 1/4" ODT X 1/4" BW, SS SWAGELOK ONLY
14 7701-0080 1 GASKET, COPPER, 1" OD X 0.75" ID
15 6010-2180 1 PLUG, 3/4
16 44401901 2 PIPE PLUG, 1/4" NPT, BRASS SWAGELOK
1
2 3
4
5
6
7
8
9
10
11
12
13
14
15
16
