TW-407 Rev.-

12

External Pressure builder, and Economizer Circuit

The pressure builder(PB) inlet circuit provides pressurized cryogenic liquid to an external pressure

builder. Opening the PB Inlet Valve (V-7) allows liquid, driven by the pressure within the vessel, to flow

into the external pressure builder. The pressure builder uses heat from the ambient air to convert the

liquid into a gas and warm it.

The economizer circuit reduces product loss due to normal evaporation of the liquid within the vessel.

The pressure builder outlet valve (V-6) and the economizer circuit isolation valve (V-5) must be open for

the circuit to function. The economizer regulator (PCV-2) opens when the pressure within the vessel

exceeds the economizer set point. This allows gas from the top of the vessel to flow into the vaporizer

circuit/ liquid withdrawal. Provided that gas from the vaporizer is being withdrawn for use, the vessel

pressure will be reduced. The primary safety valve (SV-2) will be prevented from opening, avoiding

product loss.

The economizer circuit may be isolated for maintenance without emptying or depressurizing the ves-

sel. Closing the pressure builder outlet valve (V-6) and the economizer circuit isolation valve (V-5) iso-

lates the circuit.

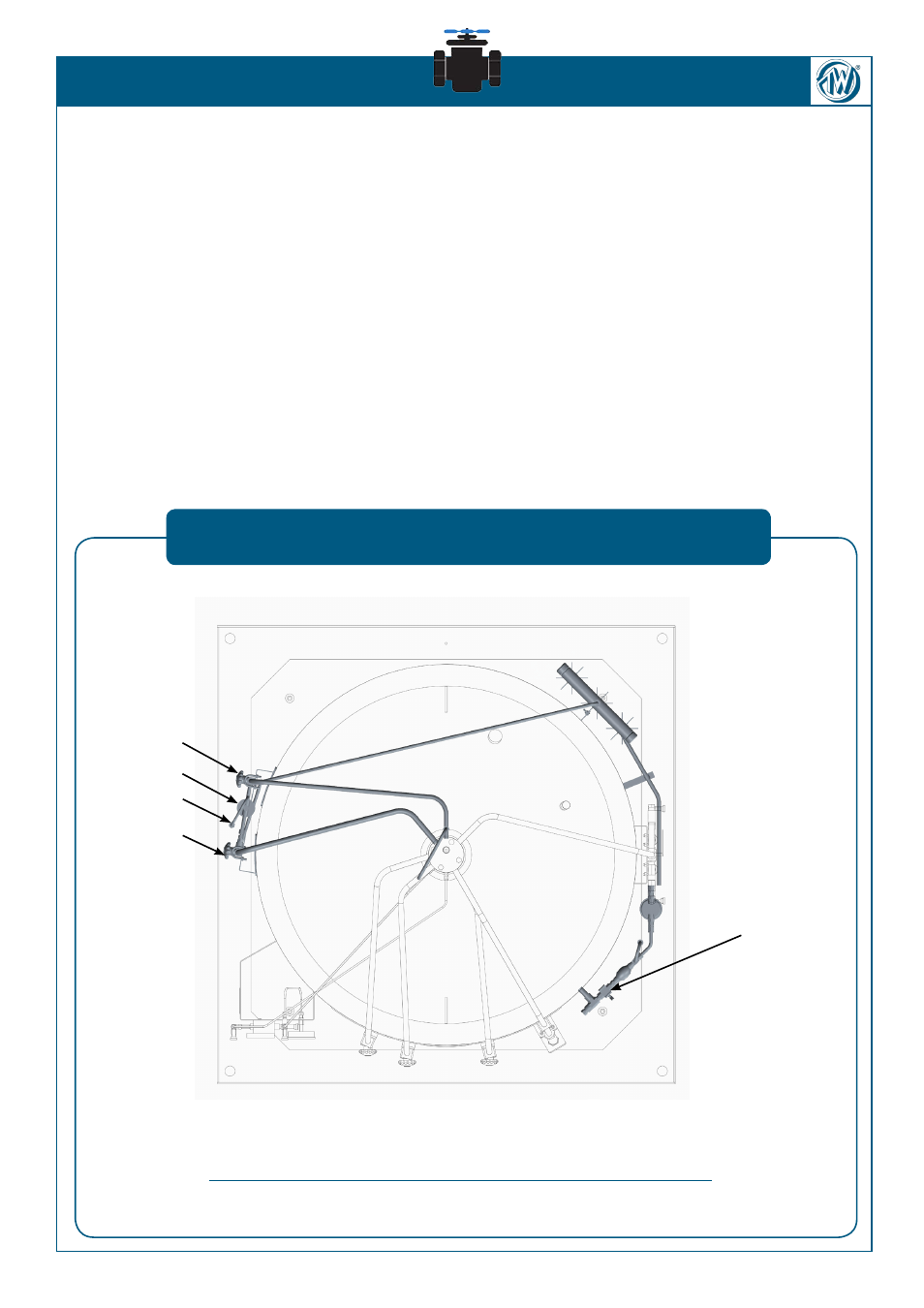

Figure 5: External Pressure builder, and Economizer circuit highlighted

V-5

PCV-2

SV-2

V-6

V-7

External Pressure builder, and Economizer Circuit
