Caution – Char-Broil 463741209 User Manual
Page 24

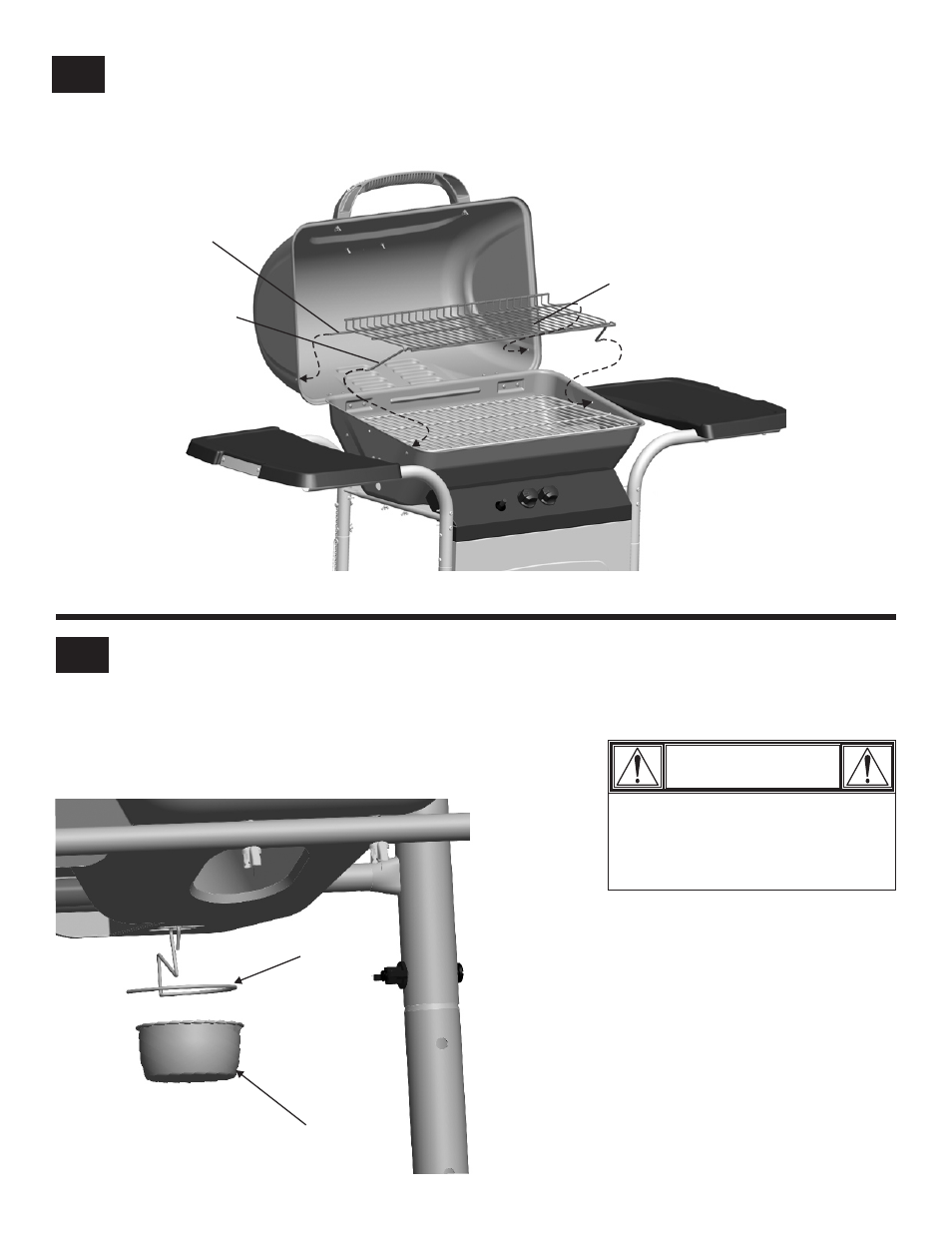

Leg Wire
Swing Away
Pivot Wire
14
Insert ends of Swing Away pivot wire into holes in sides of grill lid. Insert ends of Swing Away leg wire into holes in sides of
firebox. NOTE: Pivot and leg wires, running side-to-side, should be under wires running front-to-back. If pivot and leg wires
are on top, Swing Away is installed upside-down.
15
Hang grease cup clip from bottom of firebox and place grease cup into grease clip
CAUTION
Failure to install grease cup clip and
cup will cause hot grease to drip from
bottom of grill with risk of fire or
property damage.
Grease Cup Clip
Grease Cup
Grease Cup Clip
24
