5
6

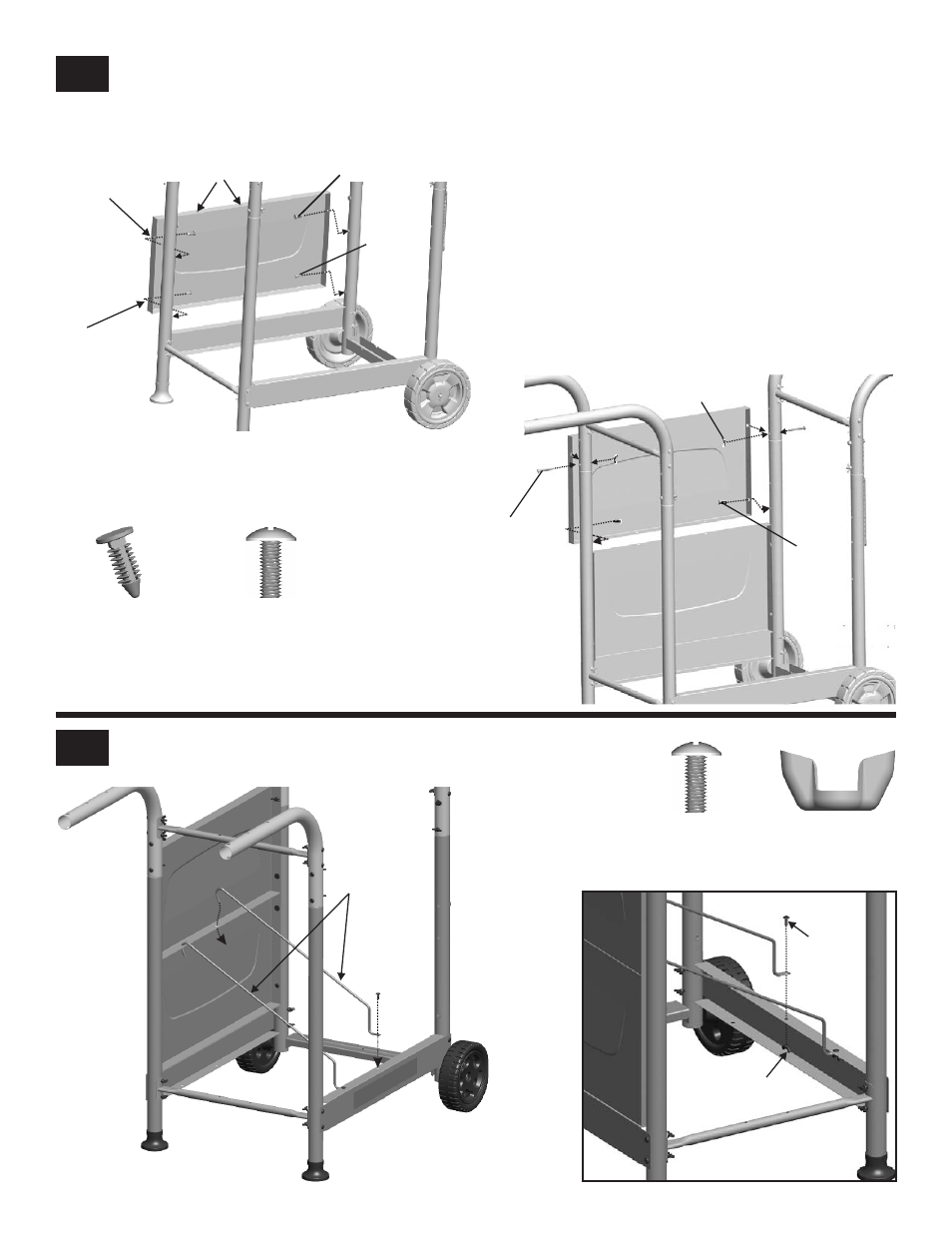

(A) Place front panel with holes side on top, attach to front of cart with #10-24x1/2" machine screws in lower holes and with
push fasteners in upper holes.
(B) You will need to remove the wing nuts and screws installed in step 1A to attach another front panel. And use push
fasteners to attach the front panel on the lower holes. Tighten all screws from previous steps.
Hook the tank exclusion wires onto back of front panels and rear rail as shown.
Secure with
#10-24x1/2” screws and #10-24 wing nuts.
Push Fastener
Qty. 4
#10-24X1/2"
Machine Screw
Qty. 2
Back A
Holes on top
Lower hole
Upper hole
#10-24X1/2"
Machine
Screw
Push Fastener
Back
B
Wing nut
Push
Fastener
#10-24X1-3/4”
Machine
Screw
Back
19
Tank exclusion
wire
#10-24X1/2”
Machine Screw
Qty. 2
#10-24
Wing Nut
Qty. 2
#10-24X1/2”
Machine
Screw
Wing nut
