ASSEMBLY
17
A
B
2
1

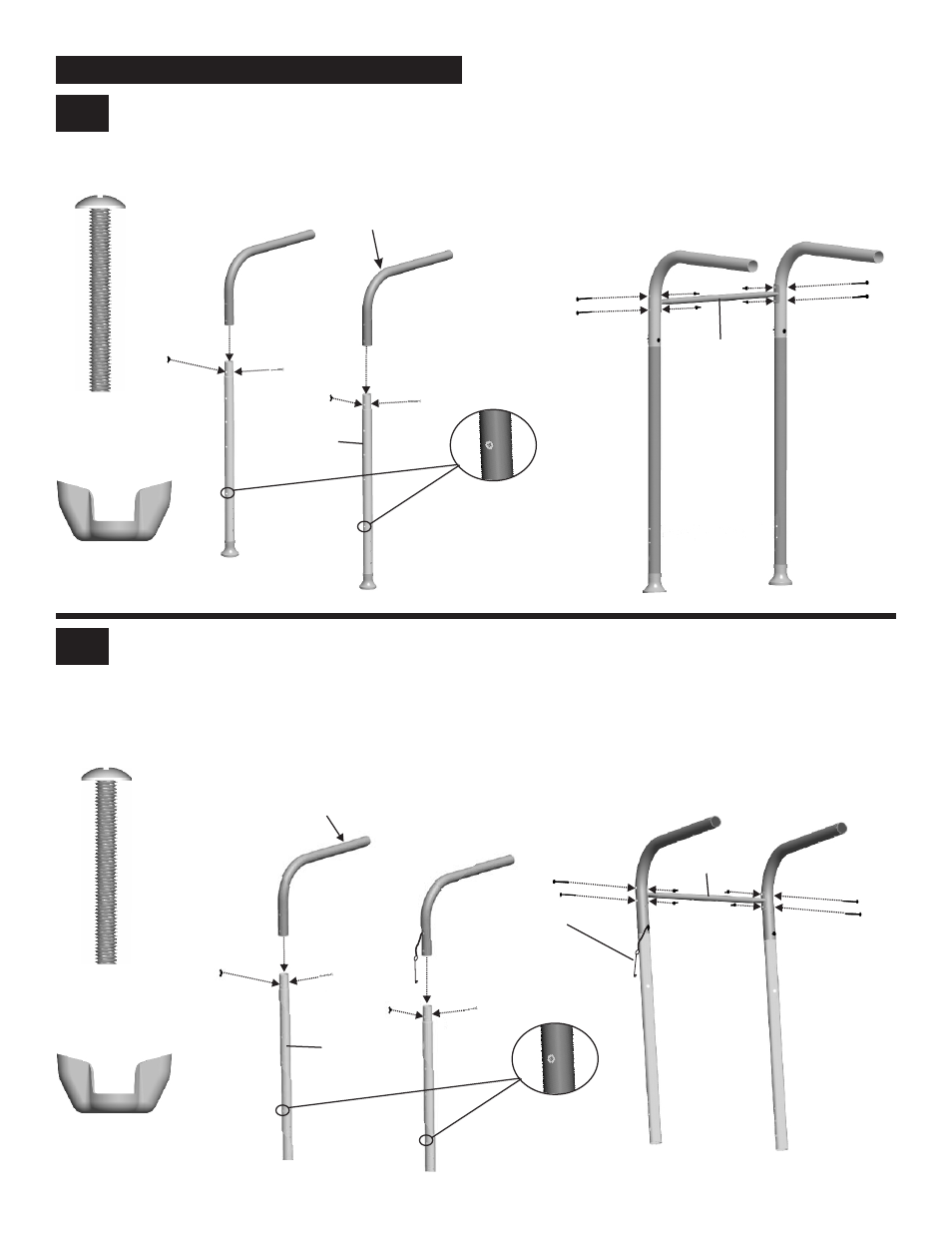

(A) Place leg shelf support onto leg with leg extender. Attach each side with #10-24x1-3/4" machine screw and
#10-24" wing nut.
(B) Attach one support bar to legs with #10-24x1-3/4" machine screws and #10-24 wing nuts.
NOTE: Do not tighten screws until Step 5.
#10-24x1-3/4"
Machine Screw
Qty. 6
#10-24
Wing Nut
Qty. 6
(A) Place the leg shelf support with match holder onto leg as shown. Attach another leg support to other leg with no leg
extender. Attach each side with
#10-24x1-3/4" machine screw and #10-24" wing nut.
(B) Attach one support bar to the upper part of leg with #10-24x1-3/4" machine screws and #10-24 wing nuts.
NOTE: Do not tighten screws until Step 5.
A
Leg Shelf Support
Right leg
B
Support Bar
Pay attention to the orientation of
Right Leg during assembly
Match Holder
#10-24x1-3/4"
Machine Screw
Qty. 6
#10-24
Wing Nut
Qty. 6
Leg Shelf Support
Support Bar
Pay attention to the
orientation of Right Leg
during assembly
Left leg
