7

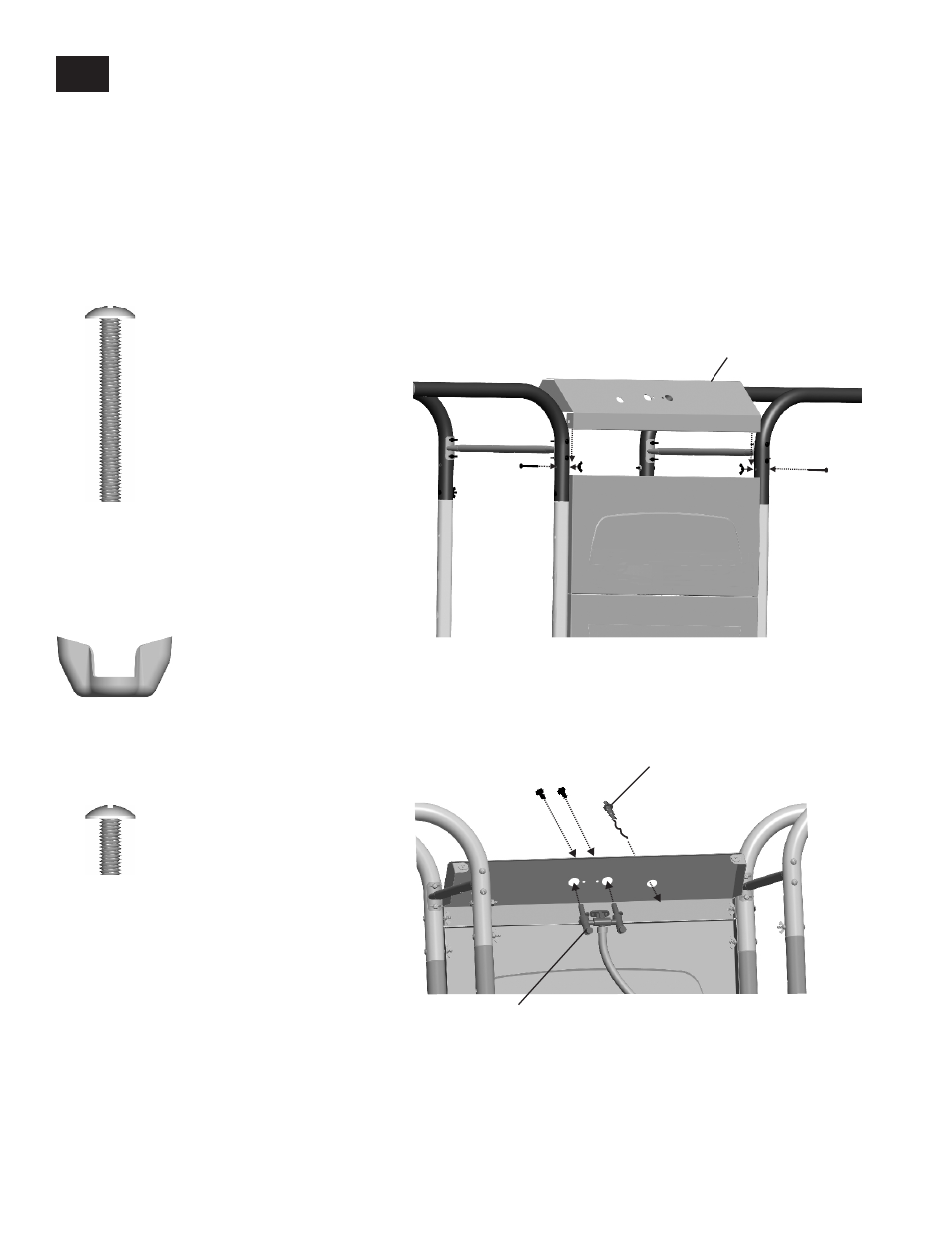

(A) Attach control panel to cart with #10-24x1-3/4" machine screws and #10-24 wing nuts.

(B) Place valve/hose/regulator onto control panel. Attach with two #10-24x1/2" machine screws. (Note: Make sure the two
valve stems are leveled; otherwise, this can cause main burner level problems.) Insert ignitor into control panel. Insert the round
terminal plug of the ignitor wire into the pin located at the end of the ignitor.

Valve/Hose/Regulator

Ignitor

A

Control panel

B

#10-24x1-3/4"

Machine Screw

Qty. 2

#10-24

Wing Nut

Qty. 2

#10-24X1/2"

Machine Screw

Qty. 2
