Char-Broil 463741209 User Manual
Page 18
3
4

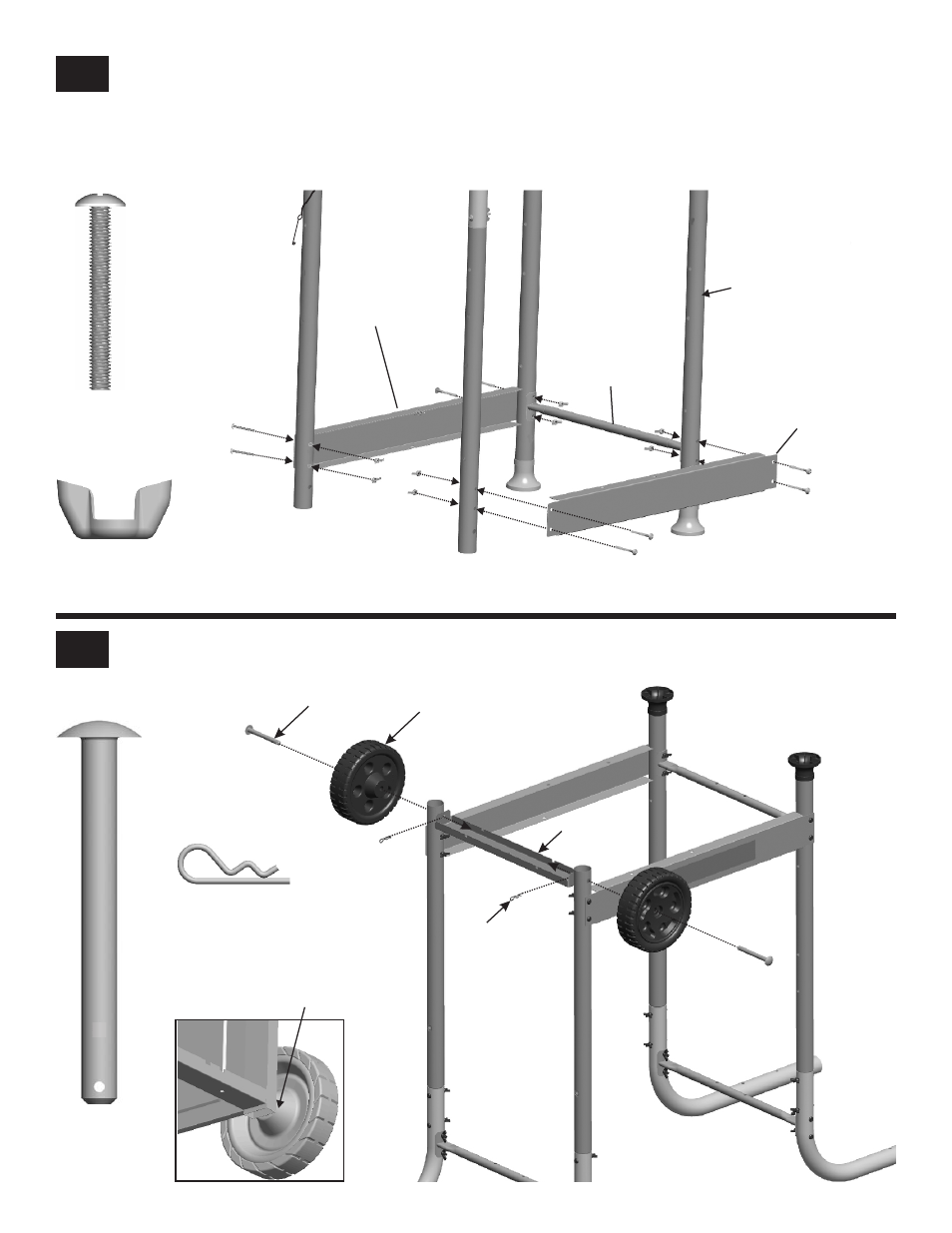

Right leg, place support bar between legs, and place two rails on outside of leg. Attach with
#10-24x1-3/4" machine screws
and
#10-24 wing nuts. On left leg attach rail as shown.
Rail
#10-24x1-3/4"
Machine Screw
Qty. 8
#10-24
Wing Nut
Qty. 8
Place rail with rating
label to back.
Support Bar
Right leg
“Cone” side of wheel against leg.
18
5/16”
Axle Bolt
Qty. 2
1” Hitch Pin
Qty. 2
Turn assembly upside-down. Insert axle bolts into wheels.
position tank support bracket between left legs.
Insert axle bolt through leg and bracket and secure with hitch pin.
Facing the back,
Axle bolts
Wheel
Tank support
bracket
Hitch Pin
