TOP VIEW
FRONT VIEW
RIGHT SIDE VIEW
LEFT SIDE VIEW
LEGEND
CLY
— Cylinder
COMP — Compressor
CONN — Connection
K.O.
— Knockout
NOTES:
1. Standard unit shown with the sound en-
closure accessory.
2. Dimensions are in inches unless oth-
erwise indicated. Dimensions in (
) are
in millimeters.

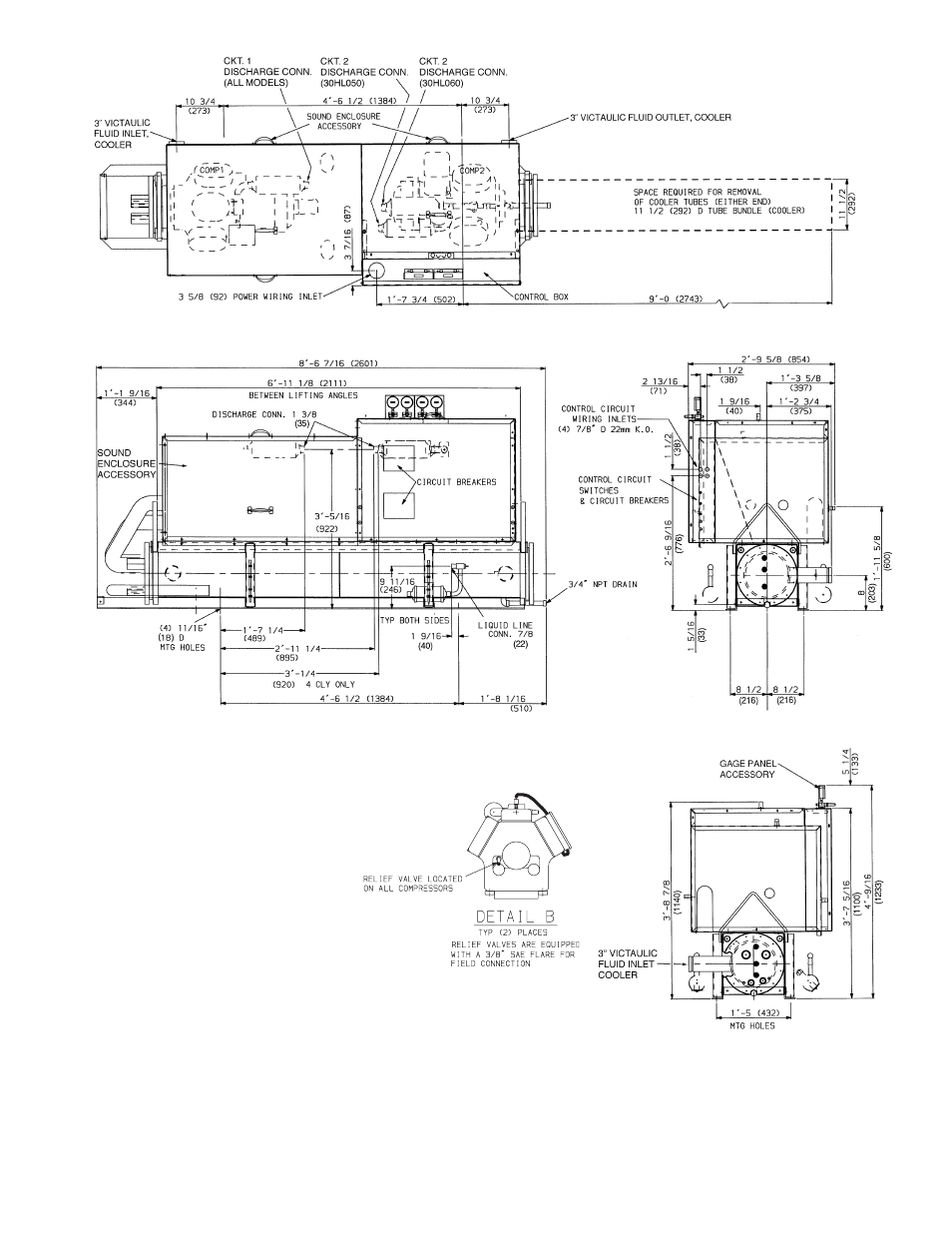

Fig. 5 — 30HL050,060 (Condenserless)
5
