TOP VIEW
FRONT VIEW RIGHT SIDE VIEW
LEFT SIDE VIEW
UNIT
30HK
DIMENSIONS — in. (mm)
A B C D
040
5 1 ⁄
4
(133)
90
(2286)
14 9 ⁄
16
(370)
7 15 ⁄
16
(202)
050,060
10 3 ⁄ 4
(273)
108
(2743)
20 1 ⁄ 16
(510)
13 9 ⁄ 16
(344)
LEGEND
COMP — Compressor
K.O.
— Knockout
MTG — Mounting
SAE — Society of Automotive Engineers (U.S.A.)
NOTES:
1. Standard unit shown with the sound enclosure
accessory.
2. Dimensions are in inches unless otherwise
indicated.
Dimensions in (
) are in millimeters.
3. Service clearance for the control box is 36-in.

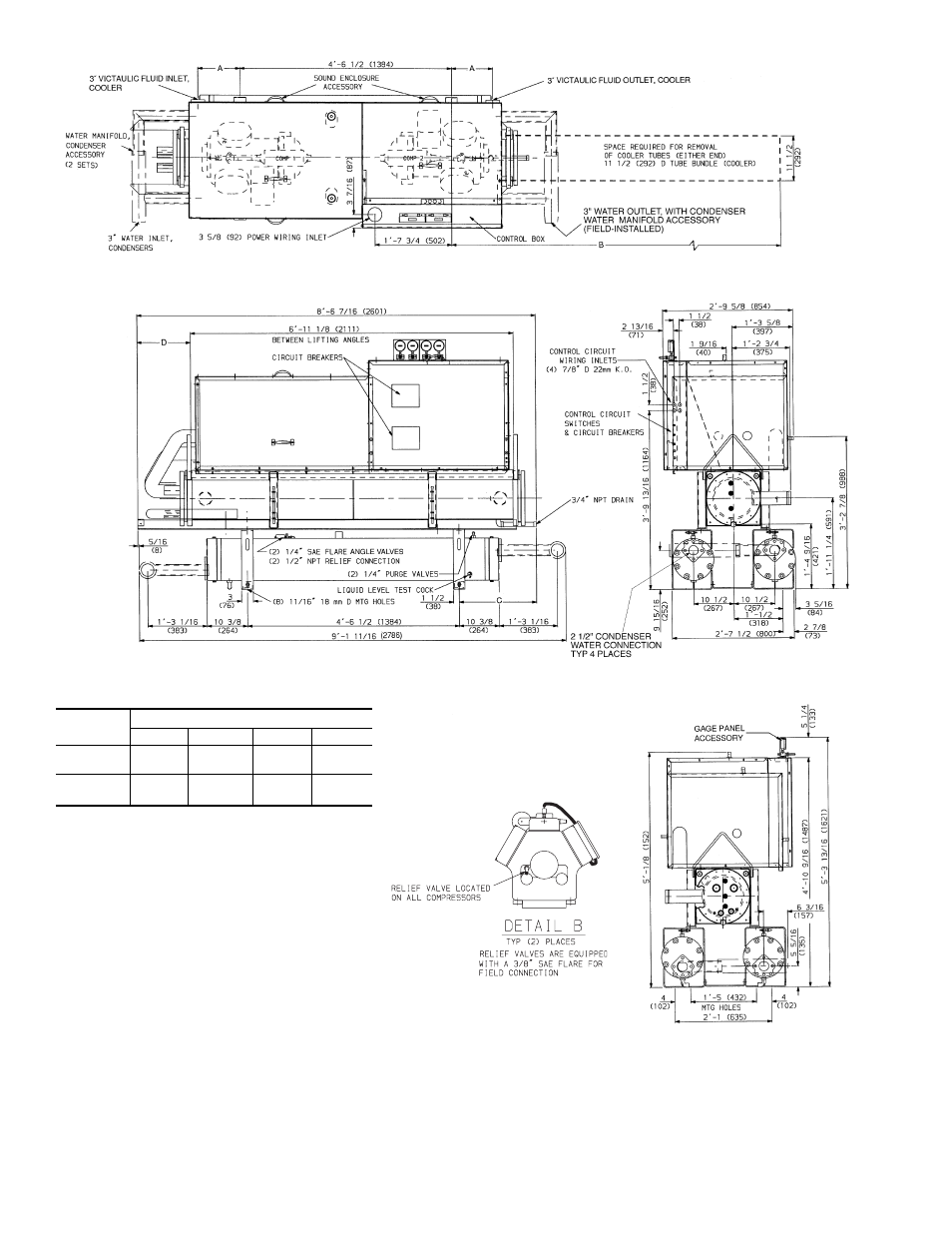

Fig. 4 — 30HK040-060 (Fluid Cooled)
4
