1.

Replace the four M2.5 x 5-mm screws (two per side) that secure the display hinges to the display cover.



2.

Replace the display bezel (see

Replacing the E5500 Display Bezel

).




3.

Replace the display assembly (see

Replacing the E5400 Display Assembly

).




4.

Replace the keyboard (see

Replacing the Keyboard

).




5.

Replace the hinge cover (see

Replacing the Hinge Cover

).




6.

Close the display and turn the computer over.



7.

Replace the bottom of the base assembly (see

Replacing the E5400 Bottom of the Base Assembly

).




8.

Follow the procedures in

After Working on Your Computer

.



E5400 Display Inverter



Removing the E5400 Display Inverter





1.

Follow the instructions in

Before Working on Your Computer

.




2.

Remove the hinge cover (see

Removing the Hinge Cover

).




3.

Remove the keyboard (see

Removing the Keyboard

).




4.

Remove the display assembly (see

Removing the E5400 Display Assembly

).




5.

Remove the display bezel (see

Removing the E5400 Display Bezel

).




6.

Remove the M2.5 x 5-mm screw from the display inverter.



7.

Disconnect the two display inverter connectors.



8.

Lift the display inverter out of the display assembly.



NOTE:

This procedure assumes that you have completed the removal procedure first.

NOTE:

The display hinge panels are labeled L (left) and R (right).

CAUTION:

Before you begin the following procedure, follow the safety instructions that shipped with your computer. For additional safety best

practices information, see the Regulatory Compliance Homepage on www.dell.com at: www.dell.com/regulatory_compliance.

NOTICE:

Removal of the bezel from the top cover requires extreme care to avoid damage to the bezel.

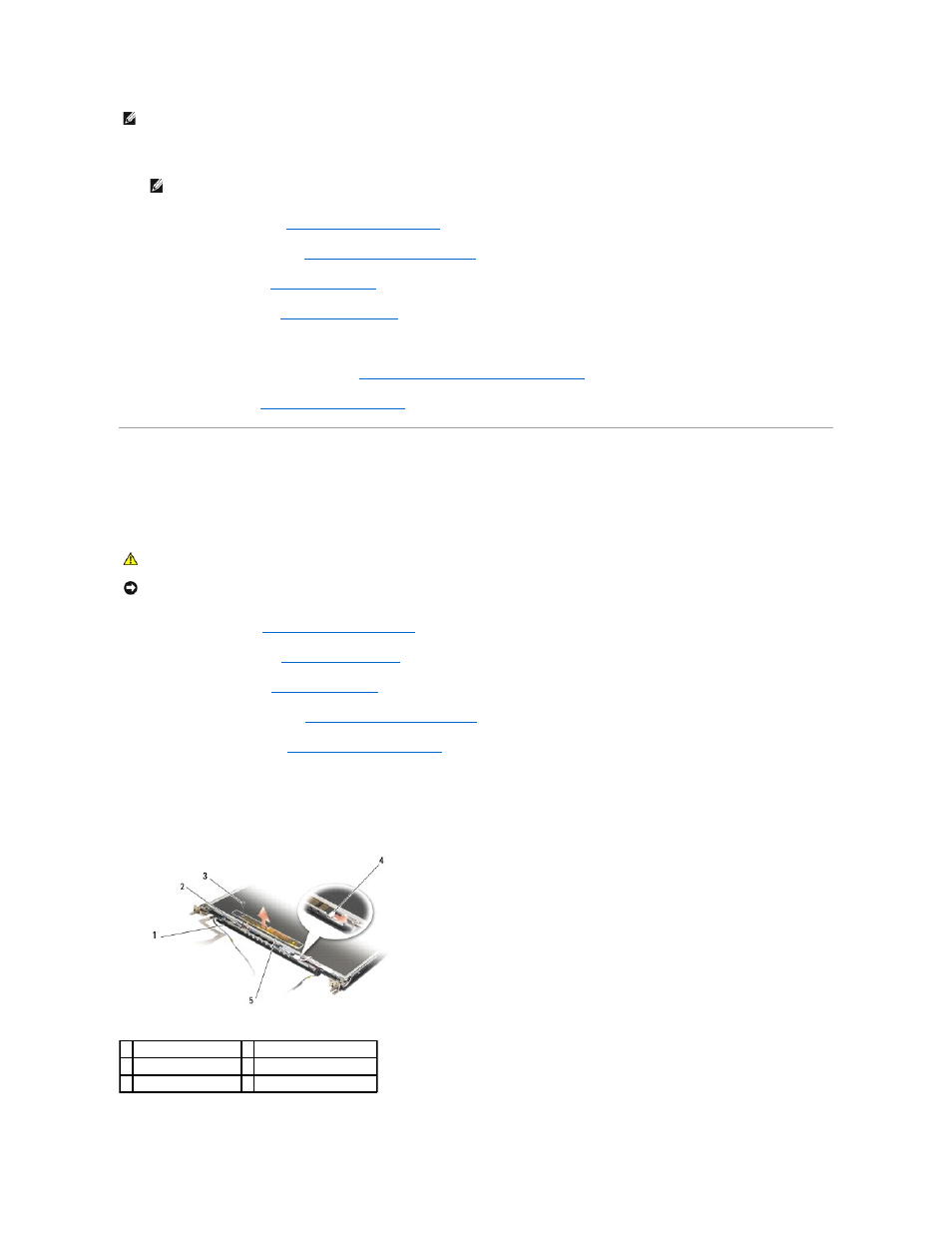

1 top cover

2 display inverter connector

3 M2.5 x 5-mm screw (1) 4 display inverter connector

5 display inverter
