Installing System Components
81

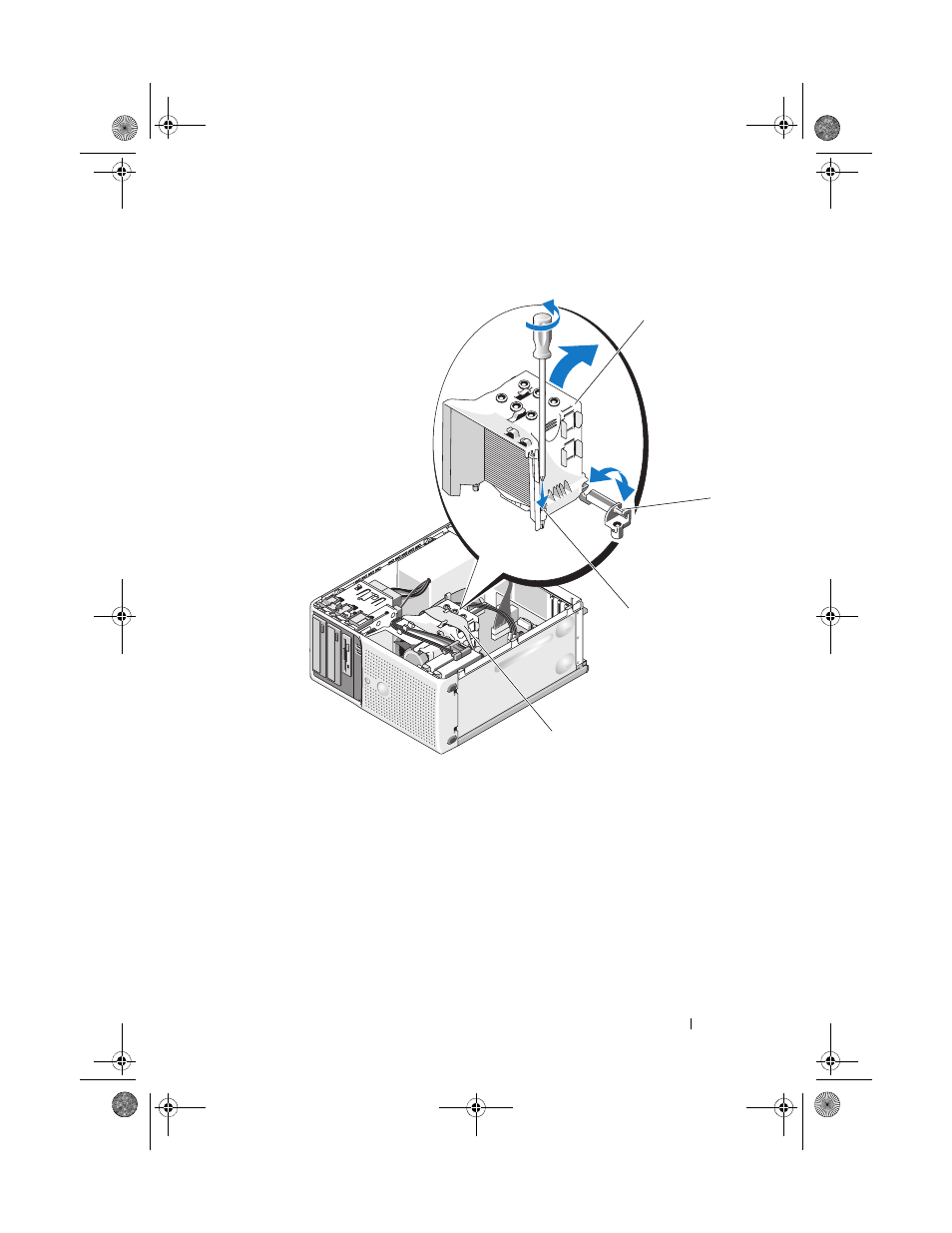

Figure 3-21. Installing and Removing the Heat Sink
6 Open the processor cover by sliding the release lever from under the
release lever latch on the socket. Then, pull the lever back until it is
vertically straight to release the processor. See Figure 3-22.
1 heat sink and shroud assembly 2 pivot bracket
3 captive screws (2) 4 diskette cable
1
2
3
4
