Installing System Components
•
For connection to a SAS controller expansion card (SAS or SATA hard
drives), connect the data cable from the SAS controller card and the
power cable as shown in Figure 3-17. See "SAS Controller Expansion
Card" on page 73 for instructions about installing the card and
routing the cables.

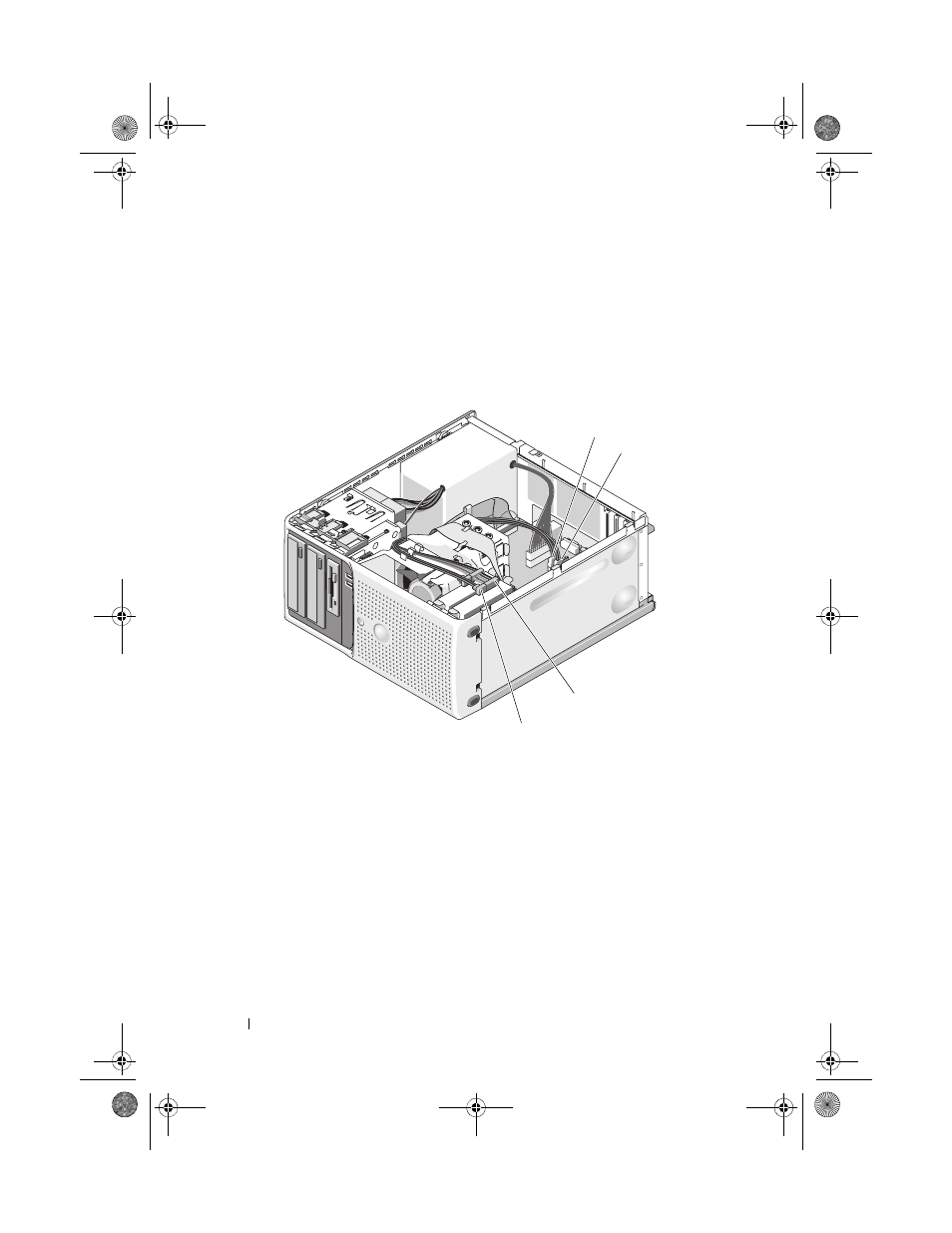

Figure 3-16.
Cabling a SATA Hard Drive to the Integrated SATA Controller
1
SATA_B data cable to system board
2
SATA_A data cable to system board
3
power cable to hard drive
4
SATA data cable to hard drive
3
4
2
1
