Back-Panel Features and Indicators
Figure 1-2 shows the controls, indicators, and connectors located on the
system's back panel.

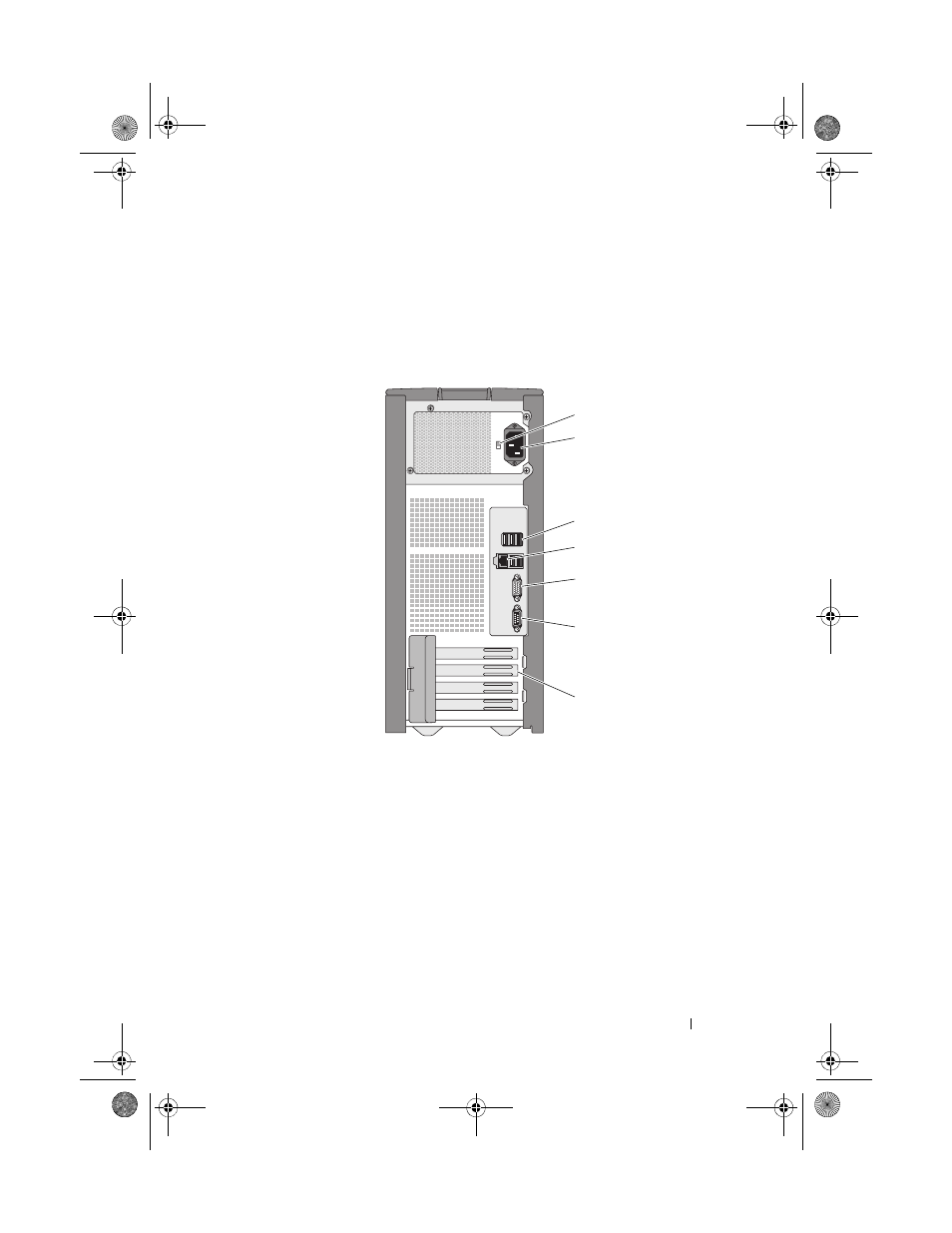

Figure 1-2. Back-Panel Features and Indicators
1 voltage selection switch 2 power connector
3 USB connectors (5) 4 NIC connector
5 video connector 6 serial connector
7 I/O expansion-card slots (4)
