Installing System Components
69

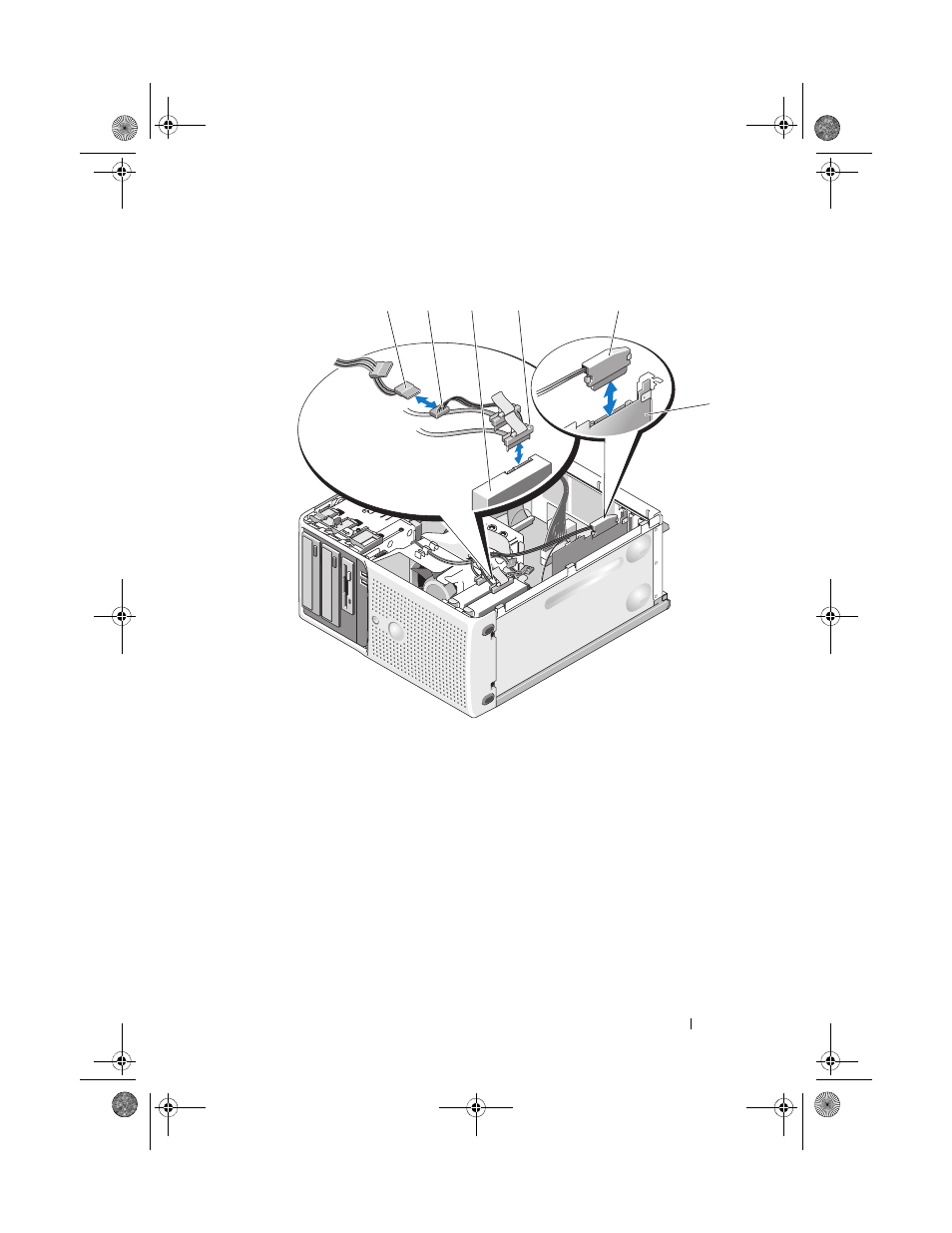

Figure 3-17. Attaching a SAS or SATA Hard Drive to a SAS Controller Expansion Card
10 Ensure that all connectors are properly cabled and firmly seated.
11 Close the system. See "Closing the System" on page 47.
12 Reconnect the system to the electrical outlet, and turn on the system and
attached peripherals.
See the documentation that came with the drive for instructions on
installing any software required for drive operation.
1 power cable to hard drive (female) 2 power cable to hard drive (male)
3 SAS or SATA hard drives (2) 4 data cable to hard drive
5 data cable to SAS controller card 6 SAS controller card
5
6
3 4 2 1
