About Your Computer 25

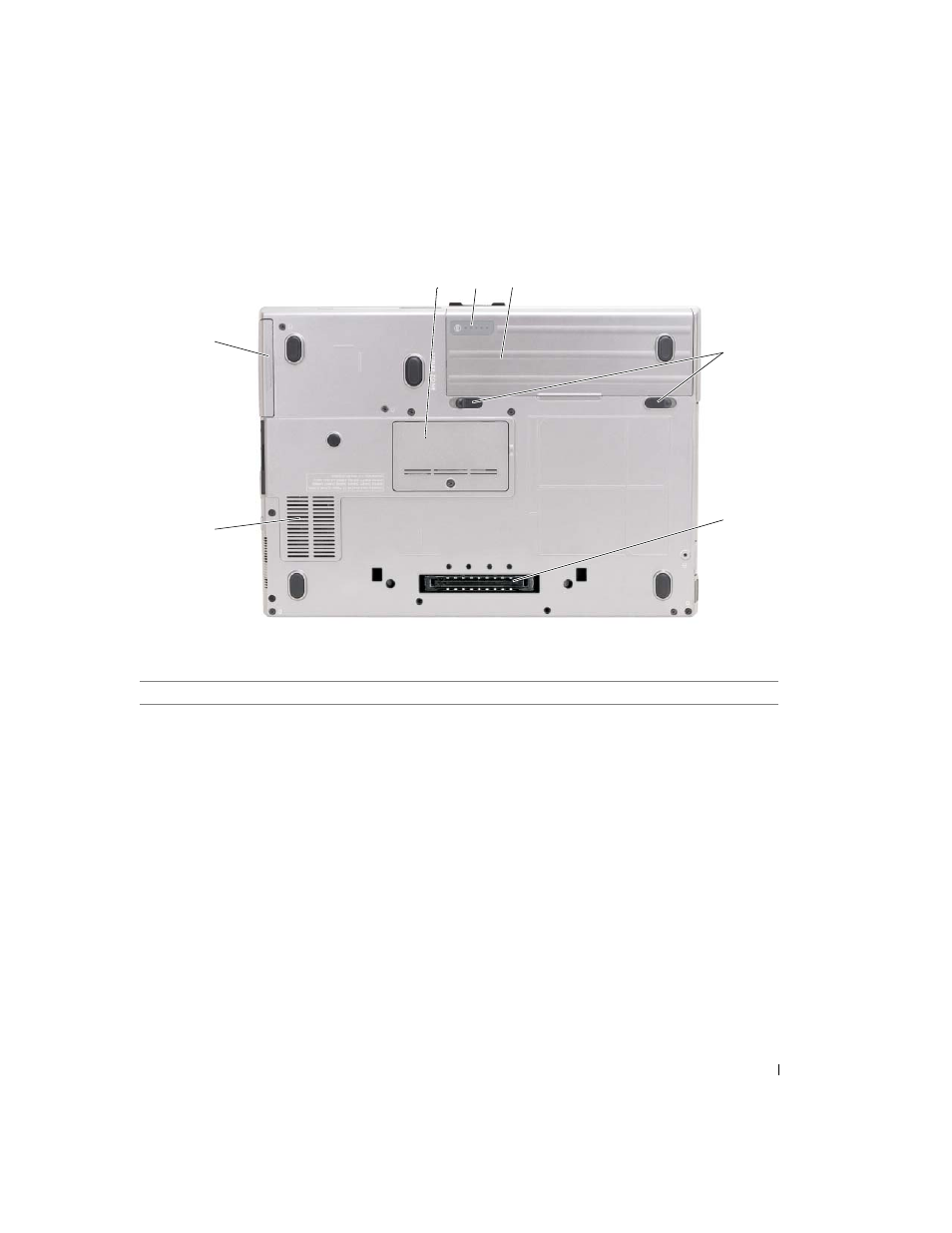

Bottom View
B A T T E R Y CHA RGE G A U G E / H E A L T H G A U G E — Provides information on the battery charge (see "Checking the
Battery Charge" on page 32).
B A T T E R Y — When a battery is installed, you can use the computer without connecting the computer to an
electrical outlet (see "Using a Battery" on page 31).
B A T T E R Y - B A Y L A T CH R EL E A SE S — Releases the battery (see "Replacing the Battery" on page 36 for instructions).
D E V I C E L O C K I N G S CR E W — If present, locks devices, such as an optical drive, in place.
D O C K I N G - D E V I C E CO N NE C T O R — Lets you attach your computer to a docking device. See the Dell documentation
that came with your docking device for more information.
M E MO RY M O D U L E C O VE R — Covers the compartment that contains the second memory module connector
(DIMM B) (see "Memory" on page 122).
A I R V E N T S — The computer uses an internal fan to create airflow through the fan air vents, which prevents the
computer from overheating.
1 memory module cover 2 battery charge gauge/health
gauge
3 battery
4 battery-bay latch releases (2) 5 docking-device connector 6 air vents
7 hard drive
1 2 3
4
5
7
6
