Adding and Replacing Parts 131
b Use your fingertips to carefully spread apart the metal securing tabs until the card pops up slightly.
c Slide and lift the Mobile Broadband card out of its connector.
NOTICE: The connectors are keyed to ensure correct insertion. If you feel resistance, check the connectors and
realign the card.
NOTICE: The Mobile Broadband card may have one or two connectors, depending on the type of card you
ordered.
NOTE: Do not insert a WLAN card into the Mobile Broadband card slot.
5 To install a Mobile Broadband card:
a Move any antenna cables out of the way to make space for the Mobile Broadband card.
b Align the card with the connector at a 45-degree angle, and press the card into the connector until
you feel a click.
NOTICE: To avoid damaging the Mobile Broadband card, never place cables on top of or under the card and
ensure that you route the cables properly.
NOTE: For more specific information about which cable to connect to which connector, see the documentation
that came with your Mobile Broadband card.
c
Connect the white antenna cable to the connector on the card marked with a white triangle;
connect the black antenna cable to the connector on the card marked with a black triangle.

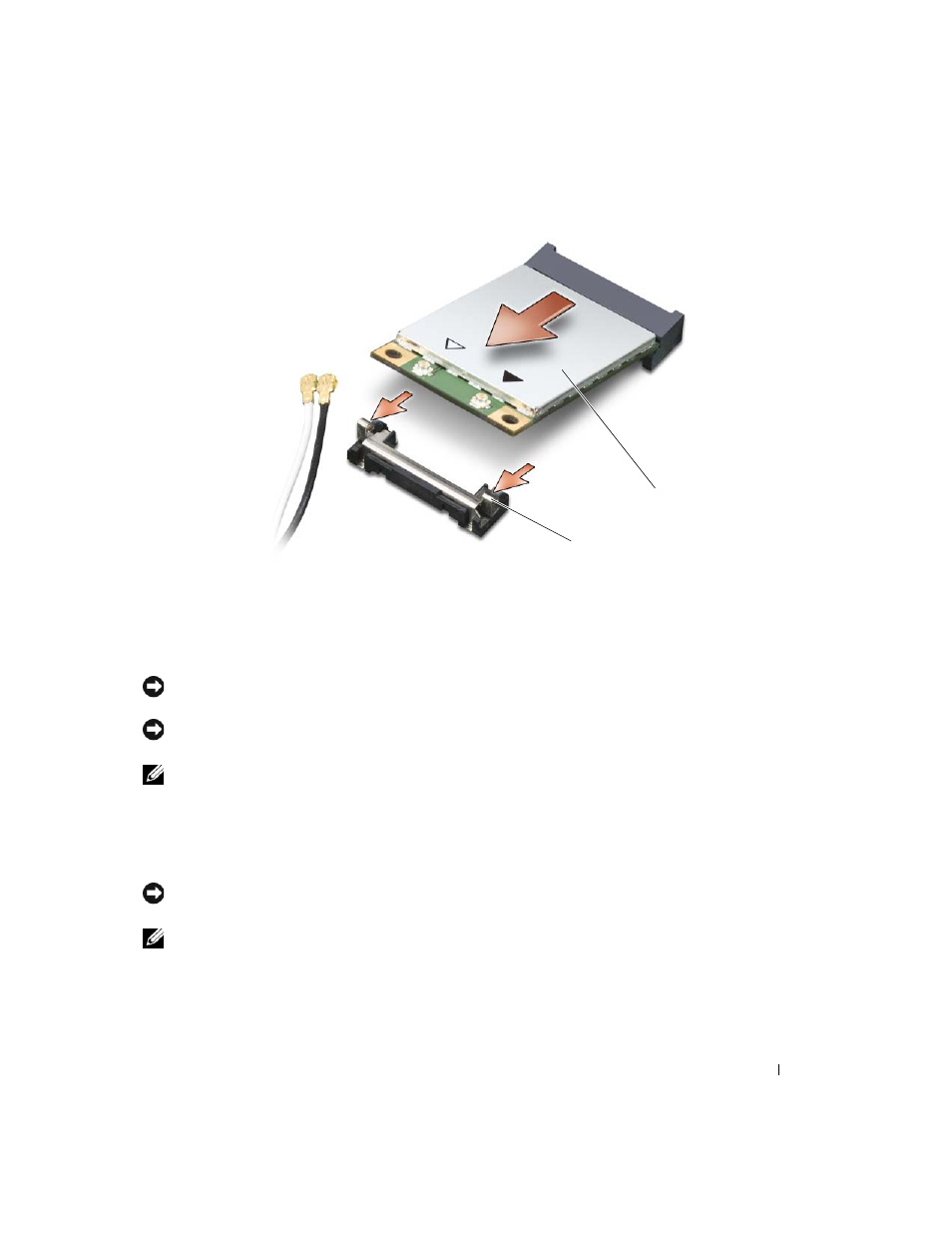

1 metal securing tabs (2) 2 Mobile Broadband card
1
2
