About Your Computer 21
NOTE: The Dell Wi-Fi Catcher Network Locator light appears only when the computer is turned off and wireless
networking is activated in the system setup program. While working in Microsoft Windows operating systems, the
light is designed not to appear.
PC C A R D S L O T — Supports one PC Card, such as a modem or network adapter. The computer ships with a blank
installed in the slot to prevent foreign matter from entering the computer interior when a card is not installed (see
"Card Types" on page 65).
NOTE: You must use an adapter with the 34-mm ExpressCard before you insert the card into the PC Card
connector.
H A R D D RI VE — Stores software and data.
Right Side View
M E D I A B A Y — Supports a floppy or an optical drive, second battery, second hard drive, or a Dell TravelLite™
module (see "Using Multimedia" on page 59).
D E V I C E L A T C H R E L E A S E — Press the latch release to eject any device installed in the media bay.
USB C O N N E C T O RS
USB P O R T C O V ER — Protects the USB connectors.

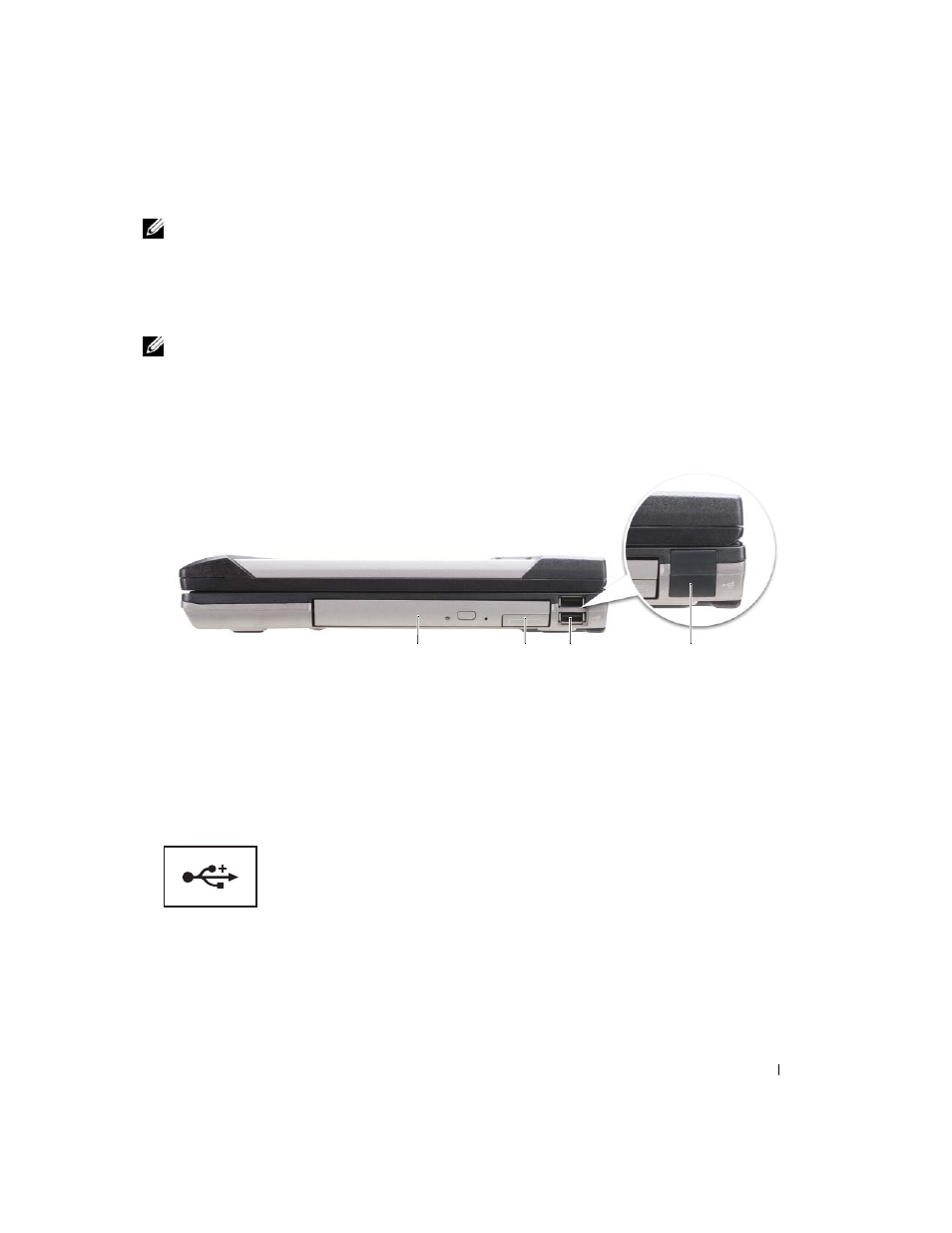

1 optical drive in media bay 2 media-bay device latch release 3 USB connectors (2)
4 USB port cover
Connect USB devices, such as a mouse, keyboard, or printer.
1 2 3 4
